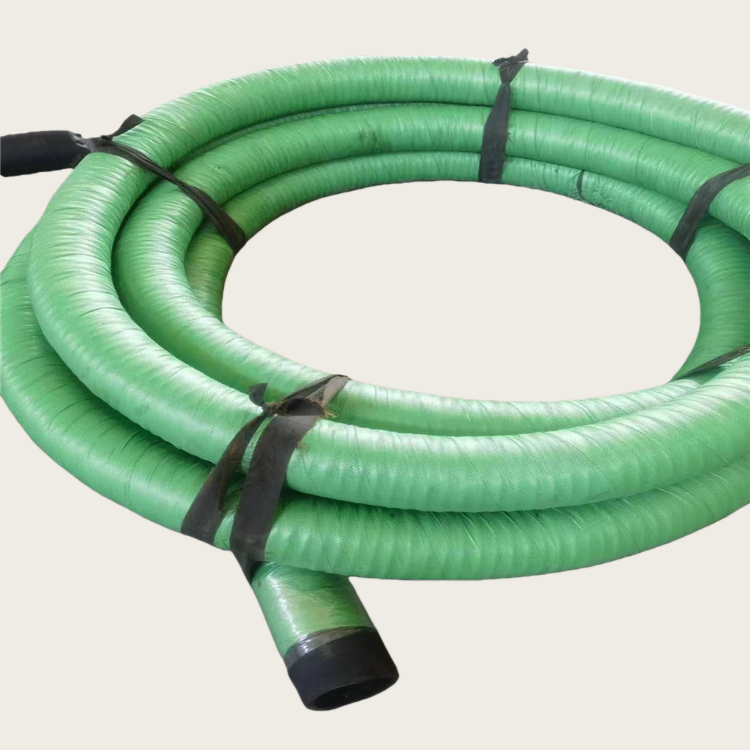

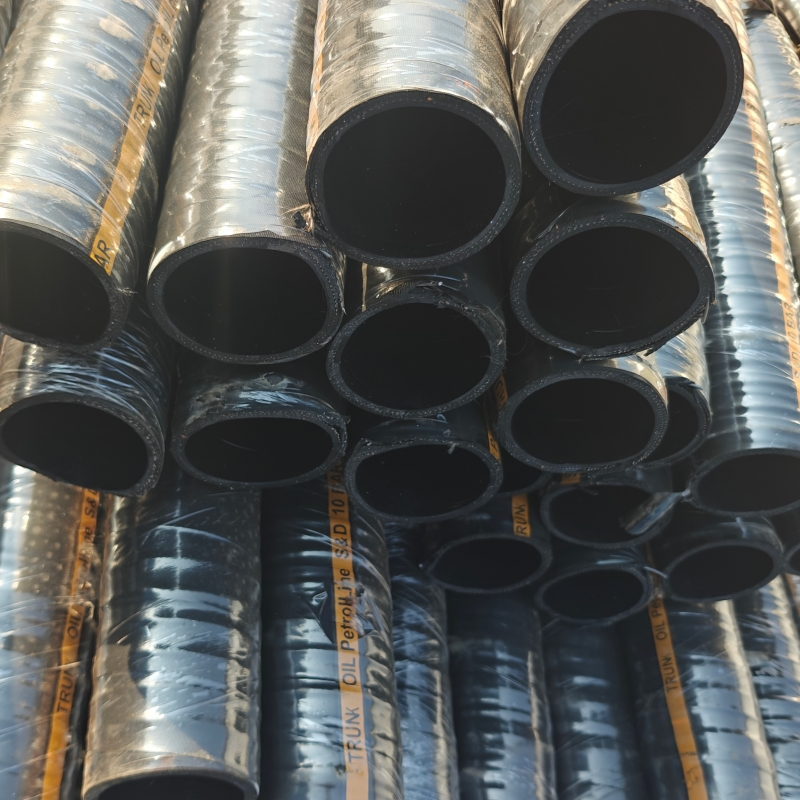

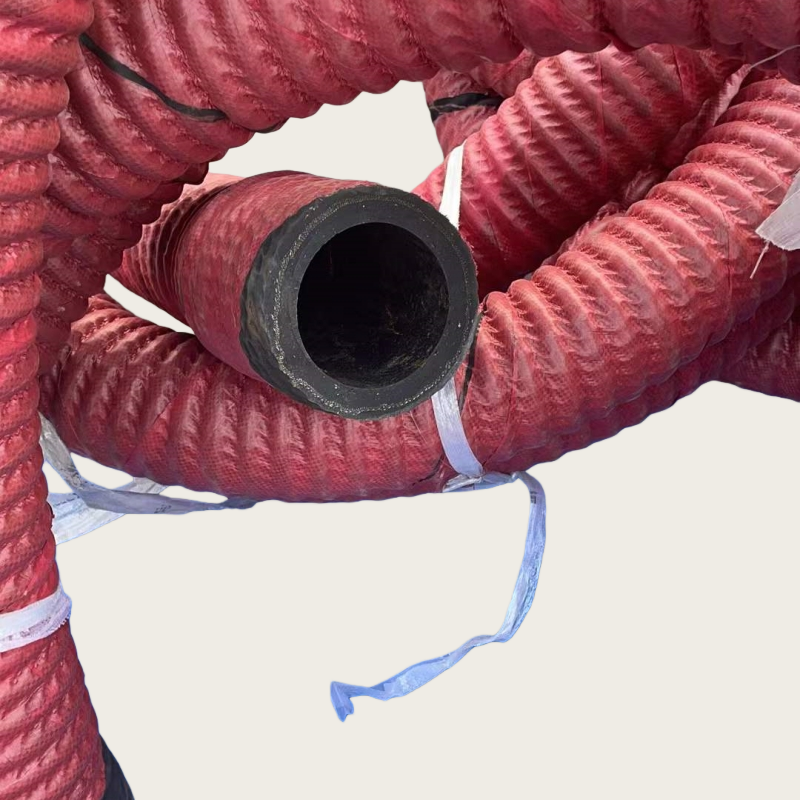

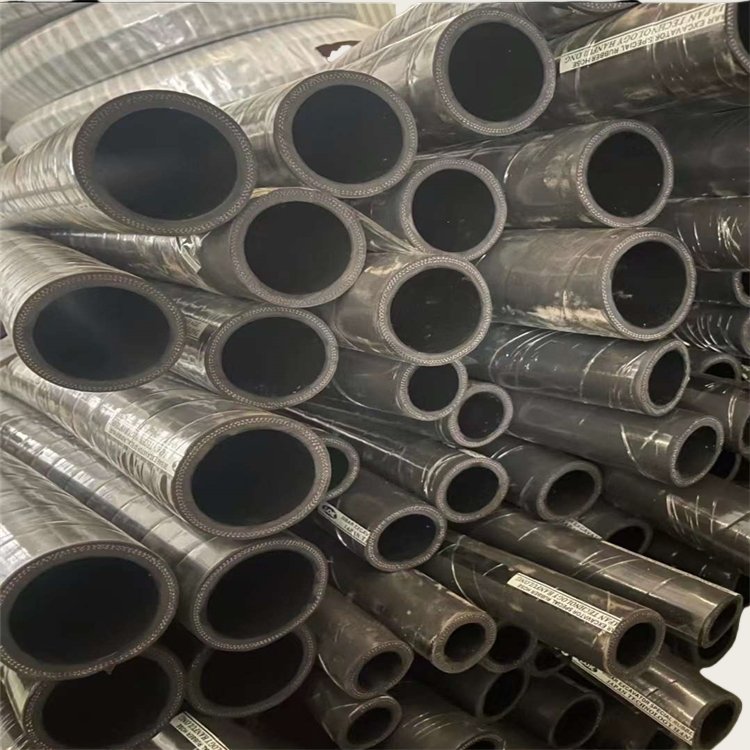

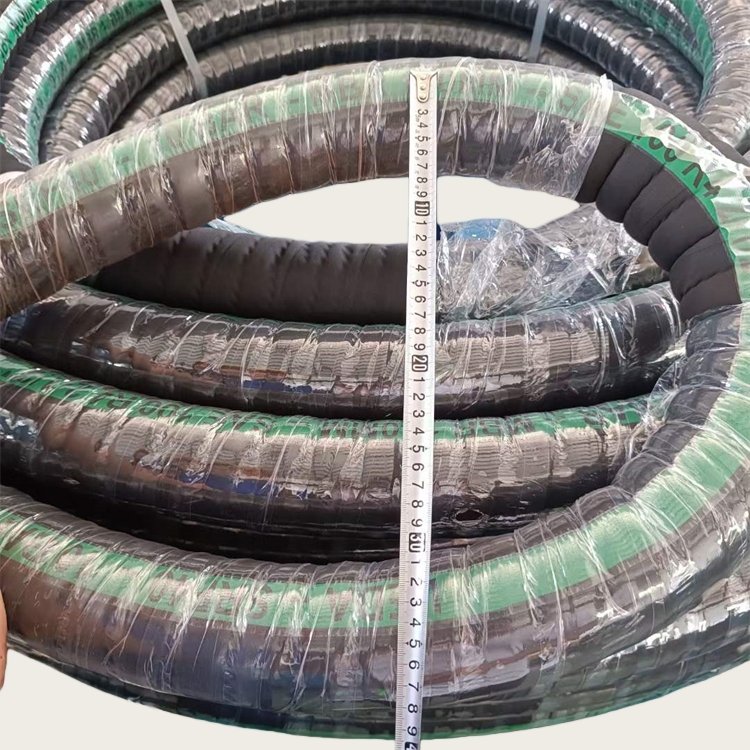

Nitrile Petrol Suction Hose 150psi/300psi/400psi

Nitrile Petrol Suction Hose 150psi/300psi/400psi - Image 2

Nitrile Petrol Suction Hose 150psi/300psi/400psi - Image 3

Nitrile Petrol Suction Hose 150psi/300psi/400psi

Oil Suction Hose is also called rubber fuel oil hose and oil discharge hose. It is a flexible hose for suction, discharge and delivery of oil with aromatic content.

Construction:

Tube: Black,smooth,Nitrile rubber
Reinforcement: Multi plies high strength synthetic fabric and steel wire helix skeleton
Cover: Black, wrapped surface,weather and ozone resistant,synthetic rubber

Application:

For suction and discharge of petroleum-based products,diesel,lubricants,fuel,with aromatic content up to 50%.

Temperature: -32°C(-90°F ) to +82°C (+180°F)

Characteristics:

1.Weather and abrasion resistant cover
2.Both smooth and corrugated cover available
3.Flexible and full vacuum
4.For aromatic content up to 50%

NITRILE PETROL SUCTION HOSE 150 PSI
Item Code	I.D		O.D	W.P		Vacuum	Bend R		L
Item Code	inch	mm	mm	bar	psi	bar	inch	mm	m	ft
OSDH019	3/4	19.1	31	10	150	0.8	6	152	61	200
OSDH025	1	25.4	37	10	150	0.8	6	152	61	200
OSDH032	1-1/4	31.8	44	10	150	0.8	8	200	61	200
OSDH038	1-1/2	38.1	51	10	150	0.8	9	230	61	200
OSDH050	2	50.8	64	10	150	0.8	10	254	61	200
OSDH064	2-1/2	63.5	76	10	150	0.8	15	380	61	200
OSDH076	3	76.2	91	10	150	0.8	18	460	61	200
OSDH089	3-1/2	88.9	107	10	150	0.8	22	550	61	200
OSDH100	4	101.6	120	10	150	0.8	24	610	61	200
OSDH125	5	127	147	10	150	0.8	30	760	30.6	100
OSDH150	6	152.4	172	10	150	0.8	36	916	30.5	100
OSDH200	8	203.2	229	10	150	0.8	48	1200	30.5	100
OSDH254	10	254	282	10	150	0.8	50	1250	11.8	39
OSDH300	12	304.8	329	10	150	0.8	60	1520	11.8	39
NITRILE PETROL SUCTION HOSE 300 PSI
Item	I.D		O.D	W.P		Vacuum	Bend R		L
Item	inch	mm	mm	bar	psi	bar	inch	mm	m	ft
OSDH3019	3/4	19.1	32	20	300	0.8	6	152	61	200
OSDH3025	1	25.4	37	20	300	0.8	6	152	61	200
OSDH3032	1-1/4	31.8	47	20	300	0.8	8	200	61	200
OSDH3038	1-1/2	38.1	54	20	300	0.8	9	230	61	200
OSDH3050	2	50.8	67	20	300	0.8	10	254	61	200
OSDH3064	2-1/2	63.5	80	20	300	0.8	15	380	61	200
OSDH3076	3	76.2	92	20	300	0.8	18	460	61	200
OSDH3089	3-1/2	88.9	110	20	300	0.8	22	550	61	200
OSDH3100	4	101.6	122	20	300	0.8	24	610	61	200
OSDH3125	5	127	153	20	300	0.8	30	760	30.5	100
OSDH3150	6	152.4	176	20	300	0.8	36	916	30.5	100
OSDH3200	8	203.2	228	20	300	0.8	48	1200	30.5	100
OSDH3254	10	254	288	20	300	0.8	50	1250	11.8	39
OSDH3304	12	304.8	340	20	300	0.8	60	1520	11.8	39
NITRILE PETROL SUCTION HOSE 400 PSI
Item	I.D		O.D	W.P		Vacuum	Bend R		L
Item	inch	mm	mm	bar	psi	bar	inch	mm	m	ft
OSDH4050	2	50.8	67	27.6	400	0.8	10	254	61	200
OSDH4064	2-1/2	63.5	80	27.6	400	0.8	15	380	61	200
OSDH4076	3	76.2	92	27.6	400	0.8	18	460	61	200
OSDH4089	3-1/2	88.9	110	27.6	400	0.8	22	550	61	200
OSDH4100	4	101.6	122	27.6	400	0.8	24	610	61	200

Size，working pressure and wall thickness can be customized as required。
