Food Suction And Discharge Hose

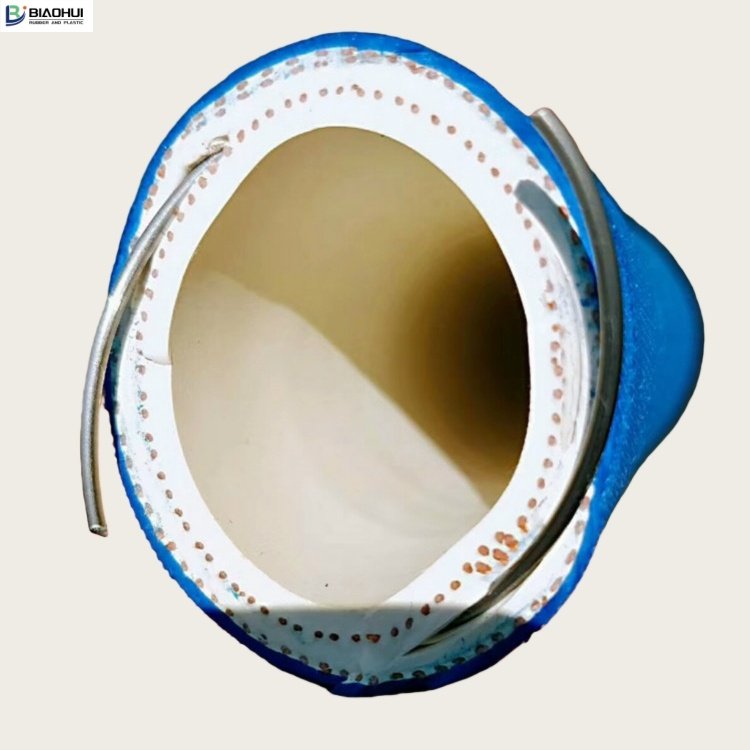

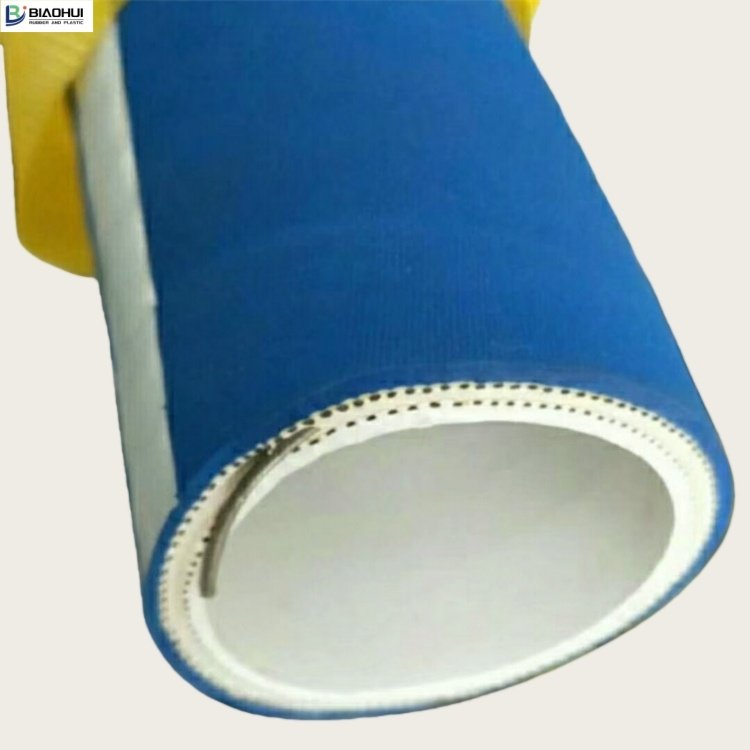

Construction:
Tube:White,smooth,NR,NBR or EPDM food quality rubber
Reinforcement:Multi plies high strength synthetic fabric and helix wire
Cover:smooth(wrapped finish),synthetic rubber, blue or white,weathering resistant.

Application:

FDA approved food hose designed for the suction and delivery of foods such as milk,Juice,beer,edible oil,dairy products etc.

Temperature: -32ºC (-90 ºF ) to 80ºC ( +176 ºF)Characteristics:
1.FDA grade tube
2.Weather and abrasion resistant cover
3.Handling wide variety of food products
4.Both smooth and corrugated cover are available

Food Suction and delivery Hose 150PSI
Item code	I.D		O.D	W.P		B.P		L
Item code	inch	mm	mm	bar	psi	bar	psi	m	ft
FSH019	3/4″	19.1	31	10	150	30	450	61	200
FSH025	1″	25.4	37	10	150	30	450	61	200
FSH032	1-1/4″	31.8	44	10	150	30	450	61	200
FSH038	1-1/2″	38.1	51	10	150	30	450	61	200
FSH050	2″	50.8	64	10	150	30	450	61	200
FSH064	2-1/2″	63.5	80	10	150	30	450	61	200
FSH076	3″	76.2	92	10	150	30	450	61	200
FSH089	3-1/2″	89	105	10	150	30	450	61	200
FSH102	4″	101.6	120	10	150	30	450	61	200
FSH125	5″	125	145	10	150	30	450	30.5	100
FSH152	6″	152	172	10	150	30	450	30.5	100
Food Suction and delivery Hose 250PSI
Item code	I.D		O.D	W.P		B.P		L
Item code	inch	mm	mm	bar	psi	bar	psi	m	ft
FSH2019	3/4″	19.1	32	17	250	51	750	61	200
FSH2025	1″	25.4	38	17	250	51	750	61	200
FSH2032	1-1/4″	31.8	46	17	250	51	750	61	200
FSH2038	1-1/2″	38.1	53	17	250	51	750	61	200
FSH2050	2″	50.8	67	17	250	51	750	61	200
FSH2064	2-1/2″	63.5	81	17	250	51	750	61	200
FSH2076	3″	76.2	93	17	250	51	750	61	200
FSH2089	3-1/2″	89	107	17	250	51	750	61	200
FSH2102	4″	101.6	122	17	250	51	750	61	200
FSH2125	5″	125	147	17	250	51	750	30.5	100
FSH2152	6″	152	174	17	250	51	750	30.5	100
