UHMWPE Chemical Suction and Discharge Hose

The inner layer is specially designed and widely used in industries such as pharmaceuticals, chemicals, and petroleum.

Send Inquiry
UHMWPE Chemical Suction and Discharge Hose

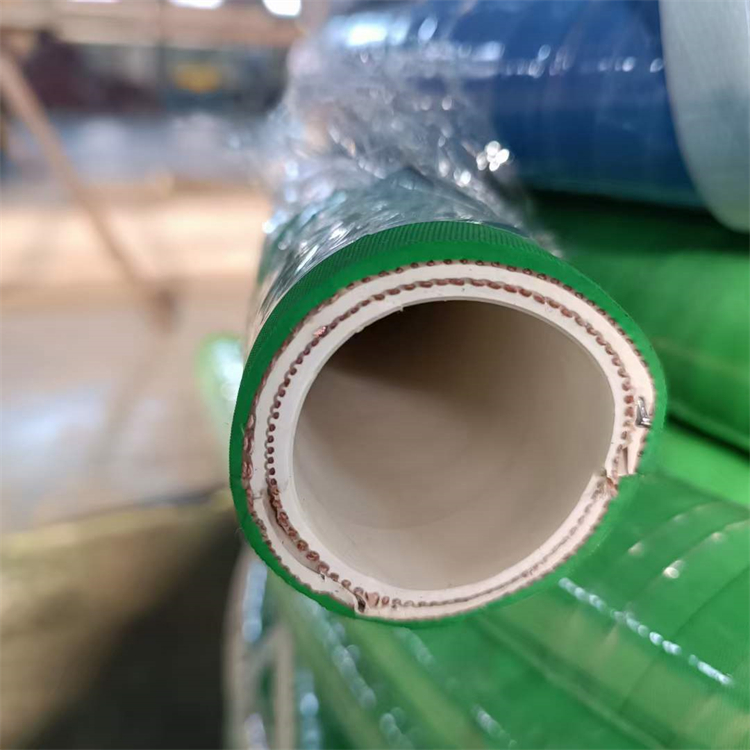

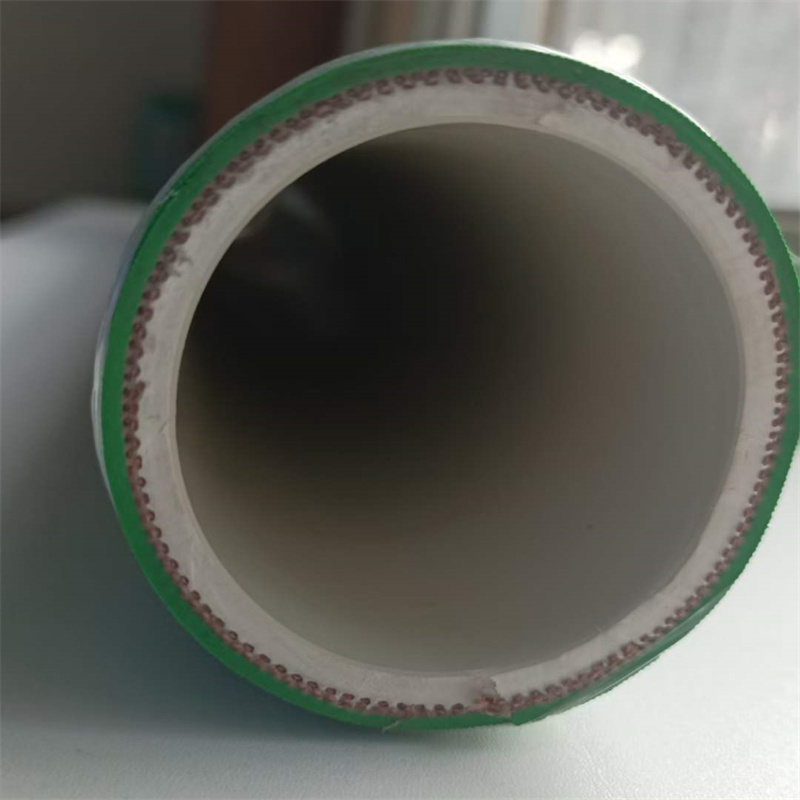

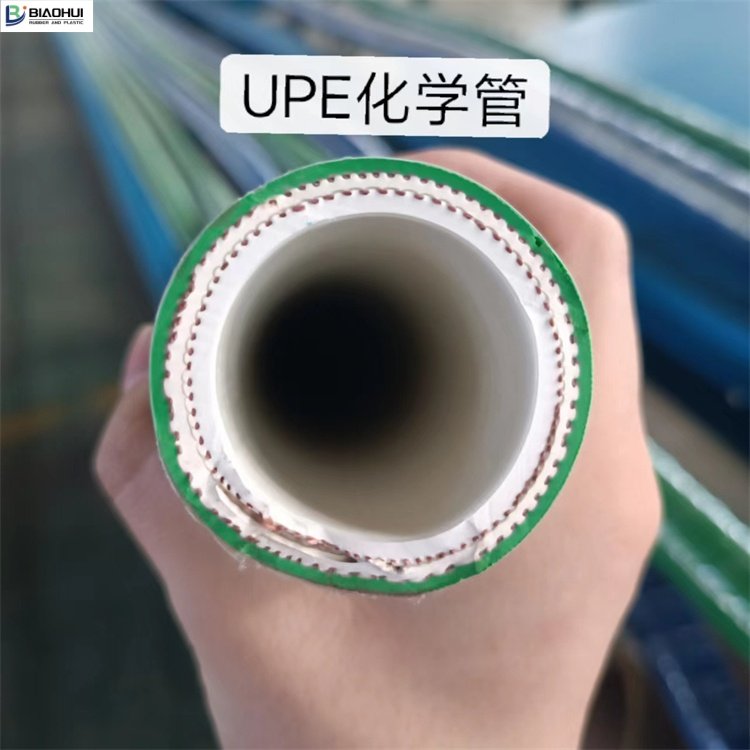

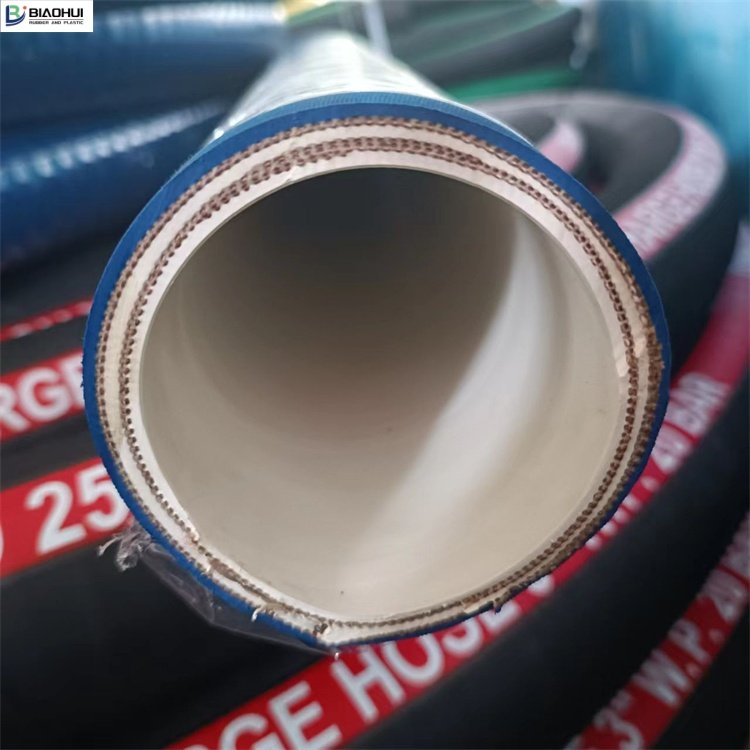

Construction:
Tube: White,Smooth Ultra High Molecular Weight Polyethylene (UHMWPE), EPDM.
Reinforcement: Multi plies high strength synthetic fabric and helix wire
Cover:EPDM resistant to chemical,weathering and ozone,blue,green wrapped or corrugated

Application:

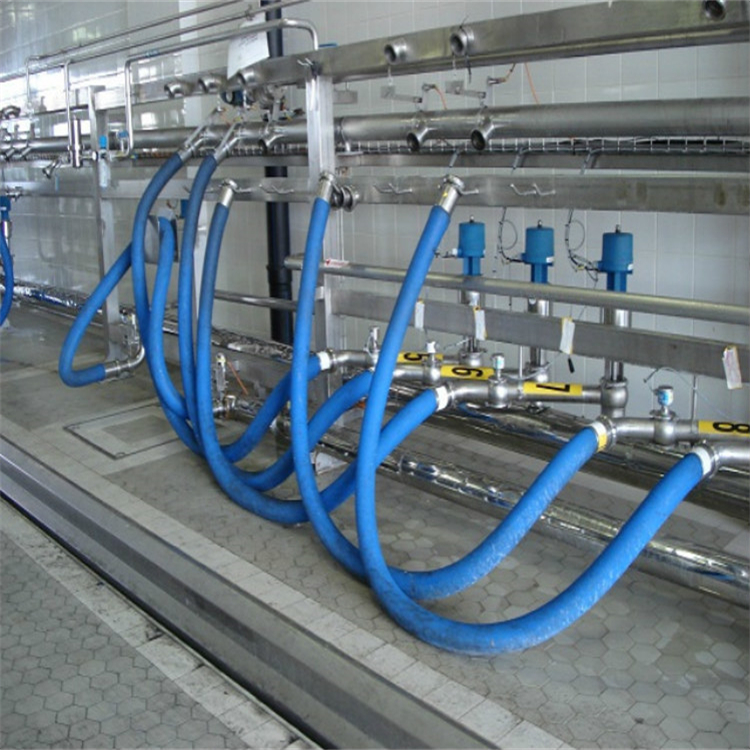

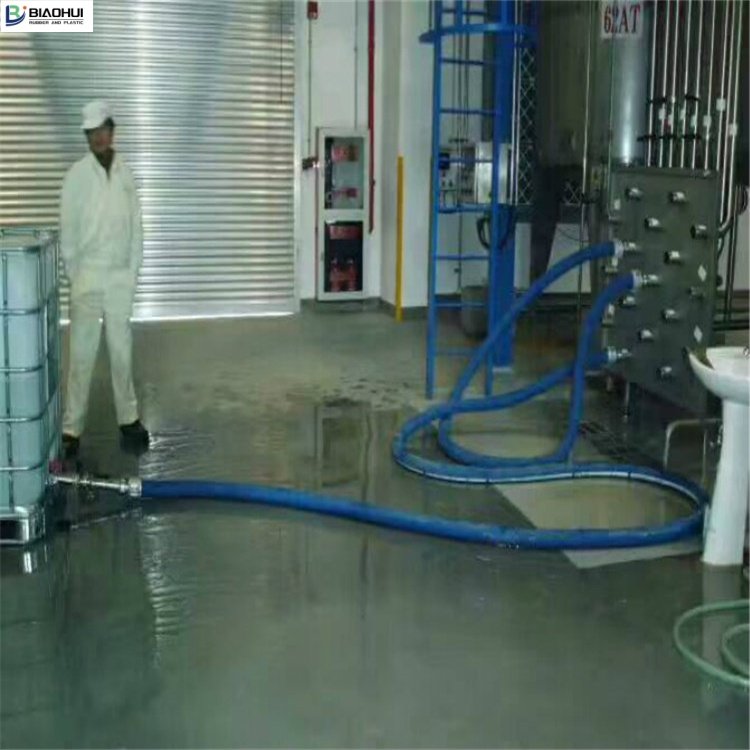

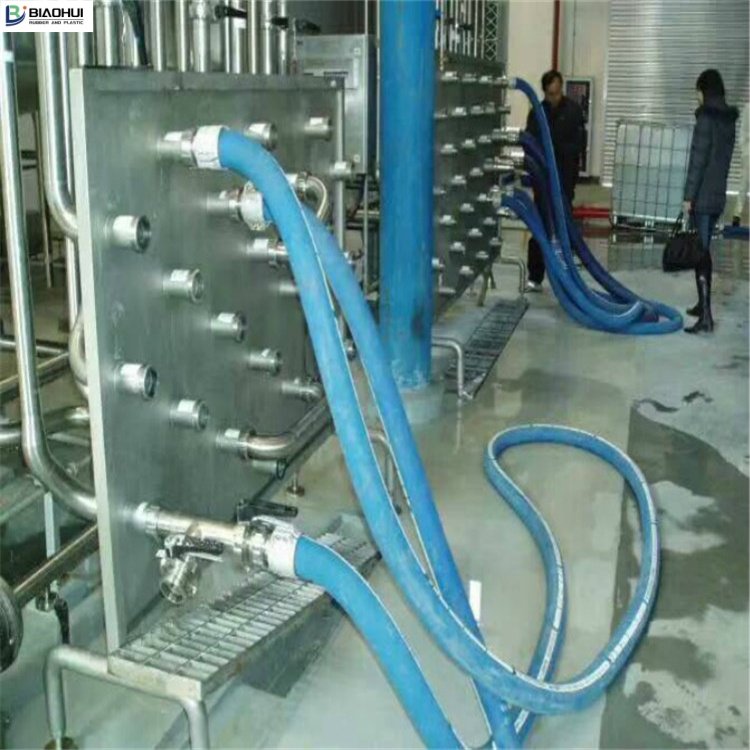

Designed for in-plant or tank truck use ,suction and discharge of chemicals and solvents.

Temperature: -40ºC (-72 ºF ) to + 120ºC (+248 ºF )Characteristics:
1.Handle 98% of the chemical/acid
2.Heat,weather,abrasion resistant EPDM cover

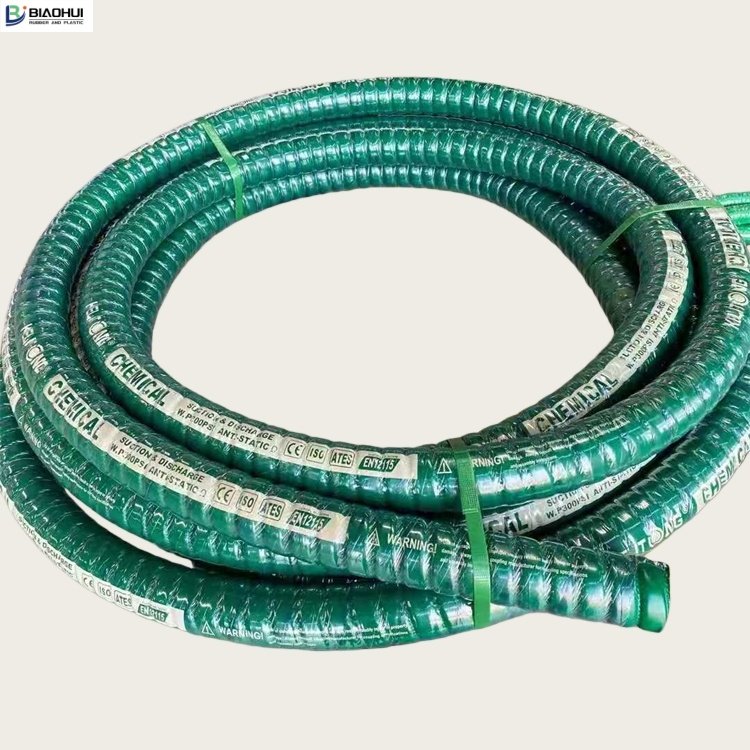

3.Corrugated cover make hose more flexible
4.Heavy duty construction for 250 PSI working pressure

Chemical Suction Hose 150PSI
Item Code I.D O.D W.P B.P L
inch mm mm bar psi bar psi m ft
UCSH019 3/4″ 19.1 30 10 150 40 600 61 200
UCSH025 1″ 25.4 36 10 150 40 600 61 200
UCSH032 1-1/4″ 31.8 44 10 150 40 600 61 200
UCSH038 1-1/2″ 38.1 51 10 150 40 600 61 200
UCSH050 2″ 50.8 64 10 150 40 600 61 200
UCSH064 2-1/2″ 63.5 79 10 150 40 600 61 200
UCDH076 3″ 76.2 92 10 150 40 600 61 200
UCDH089 3-1/2″ 88.9 105 10 150 40 600 61 200
UCDH102 4″ 101.6 120 10 150 40 600 61 200
UCDH152 6″ 152 172 10 150 40 600 30.5 100
Chemical Suction Hose 250PSI
Item Code I.D O.D W.P B.P L
inch mm mm bar psi bar psi m ft
UCSH2019 3/4″ 19.1 31 17 250 68 1000 61 200
UCSH2025 1″ 25.4 38 17 250 68 1000 61 200
UCSH2032 1-1/4″ 31.8 47 17 250 68 1000 61 200
UCSH2038 1-1/2″ 38.1 53 17 250 68 1000 61 200
UCSH2050 2″ 50.8 67 17 250 68 1000 61 200
UCSH2064 2-1/2″ 63.5 82 17 250 68 1000 61 200
UCDH2076 3″ 76.2 94 17 250 68 1000 61 200
UCDH2089 3-1/2″ 88.9 108 17 250 68 1000 61 200
UCDH2102 4″ 101.6 122 17 250 68 1000 61 200
UCDH2152 6″ 152 175 17 250 68 1000 30.5 100

Size，working pressure and wall thickness can be customized as required。
