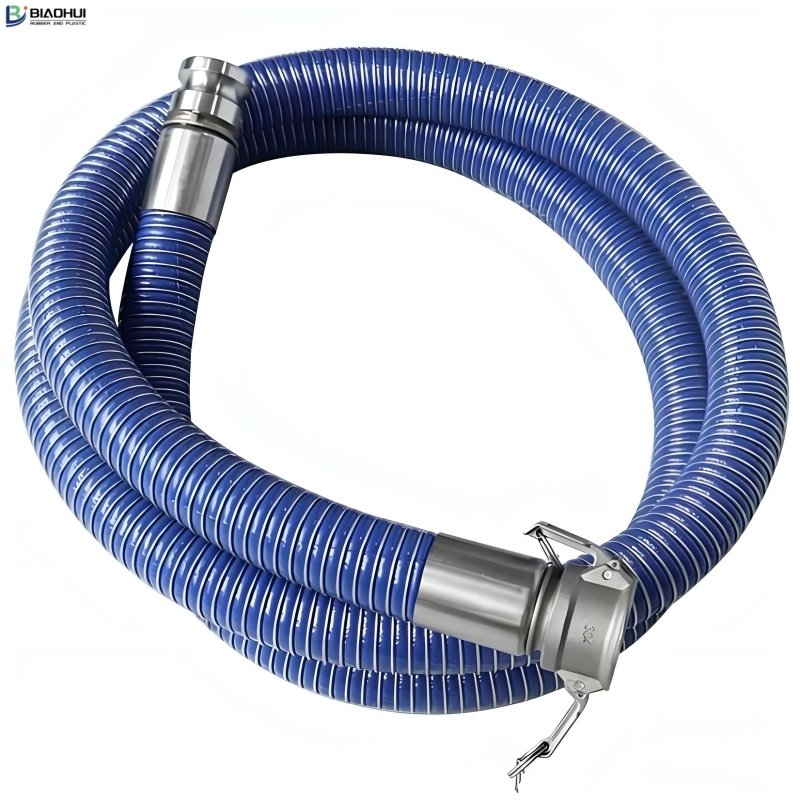

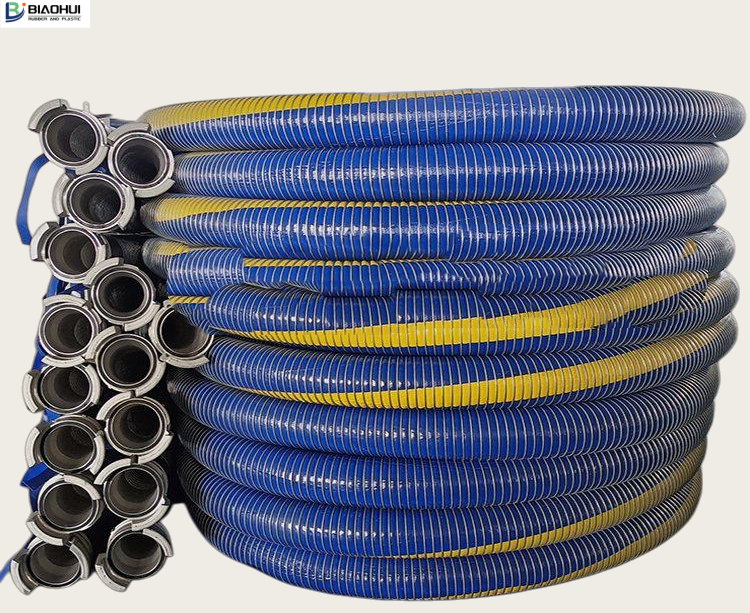

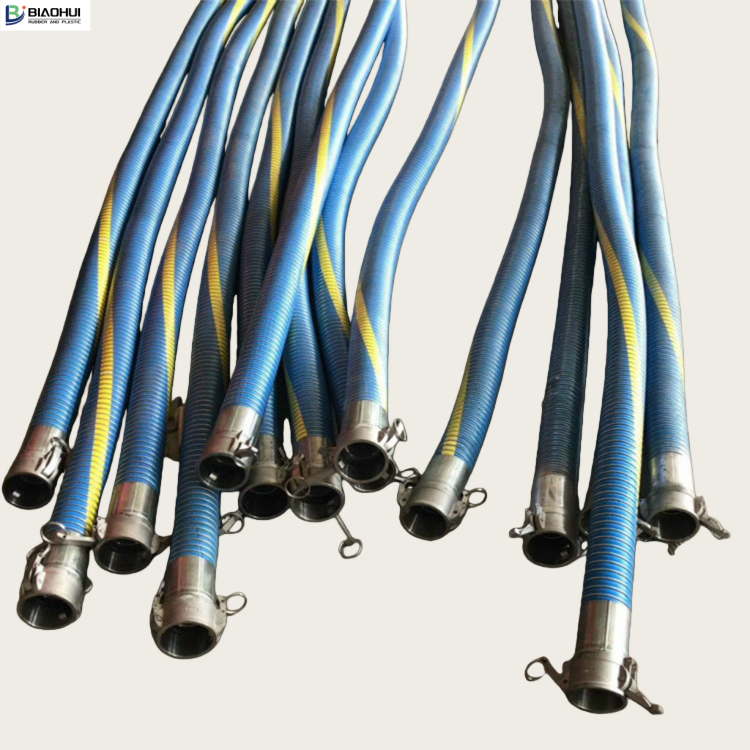

Tanker Composite Hose

Tanker composite hose is specially designed for tankers of highway and railway. It is soft and lightweight, and it is suitable for frequent bent mobile use. It has excellent anti-static performance. Tanker composite hose is suitable for all fuel oil products, such as gasoline, diesel, crude oil, lubricating oil, ethanol gasoline and biodiesel. It is also suitable for the delivery of chemical fluids which are corrosive and aggressive.

The details of tanker composite hose:

• Temperature range: -30°C to +90°C.
• Inner diameter: 2″, 2.5″, 3″ and 4″.
• Working pressure: 0.7MPa, 1.05MPa and 1.52MPa.
• Burst pressure: 2.8MPa, 4.2MPa and 6.1MPa (Burst pressure is four times as high as the working pressure).

• The specification of tanker composite hose

  Hose code	Inner diameter		Working pressure		Burst pressure		Bend radius	weight
  	inch	mm	MPa	psi	MPa	psi	mm	kg/m
  PTCH-01	2	51	0.7	102	2.8	406	102	0.9
  PTCH-02	2.5	64	0.7	102	2.8	406	115	1.51
  PTCH-03	3	76	0.7	102	2.8	406	151	1.9
  PTCH-04	2.5	64	1.05	152	4.2	609	195	2.5
  PTCH-05	3	76	1.05	152	4.2	609	228	3.2
  PTCH-06	4	102	1.05	152	4.2	609	351	4.5
  PTCH-07	2	51	1.52	220	6.1	885	225	1.97
  PTCH-08	2.5	64	1.52	220	6.1	885	245	2.8
  PTCH-09	3	76	1.52	220	6.1	885	300	3.5
  PTCH-10	4	102	1.52	220	6.1	885	400	6.0

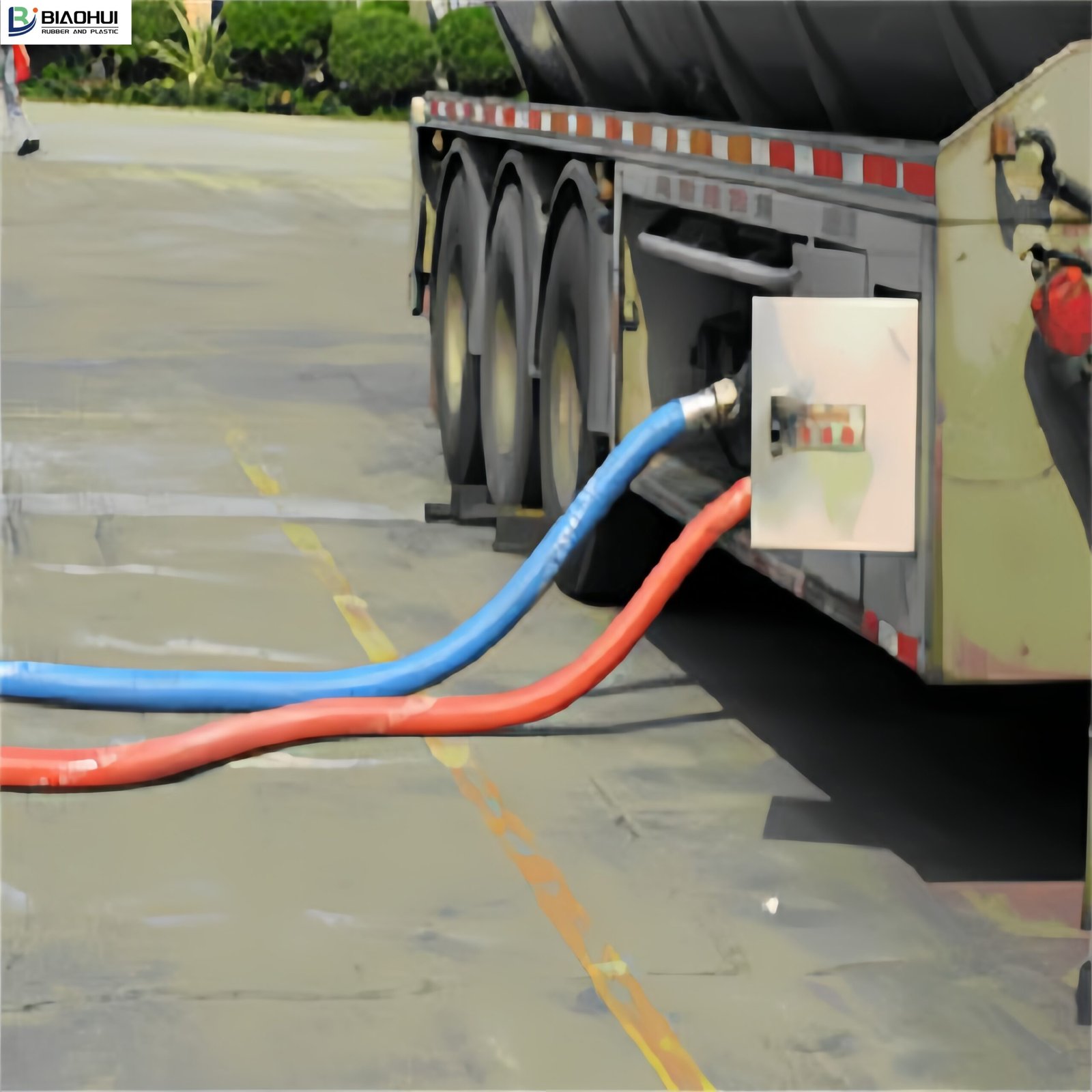

  Application of tanker composite hose:

  • Tanker composite hose is suitable for all types of fuel oil products, such as gasoline, diesel, crude oil, lubricating oil, ethanol gasoline and biodiesel.
  • It is suitable for the delivery of corrosive chemical fluids.
