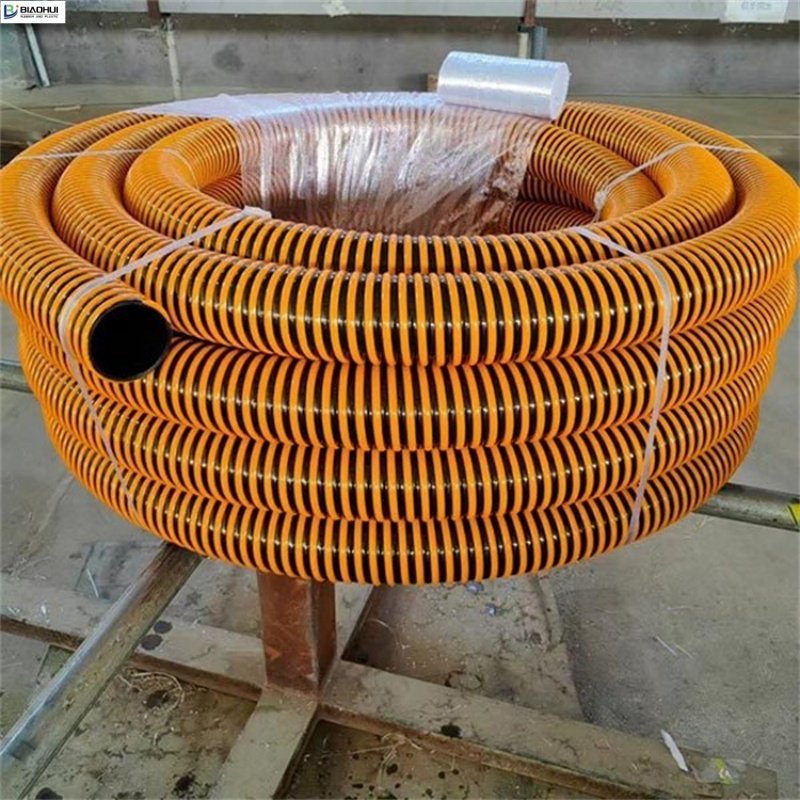

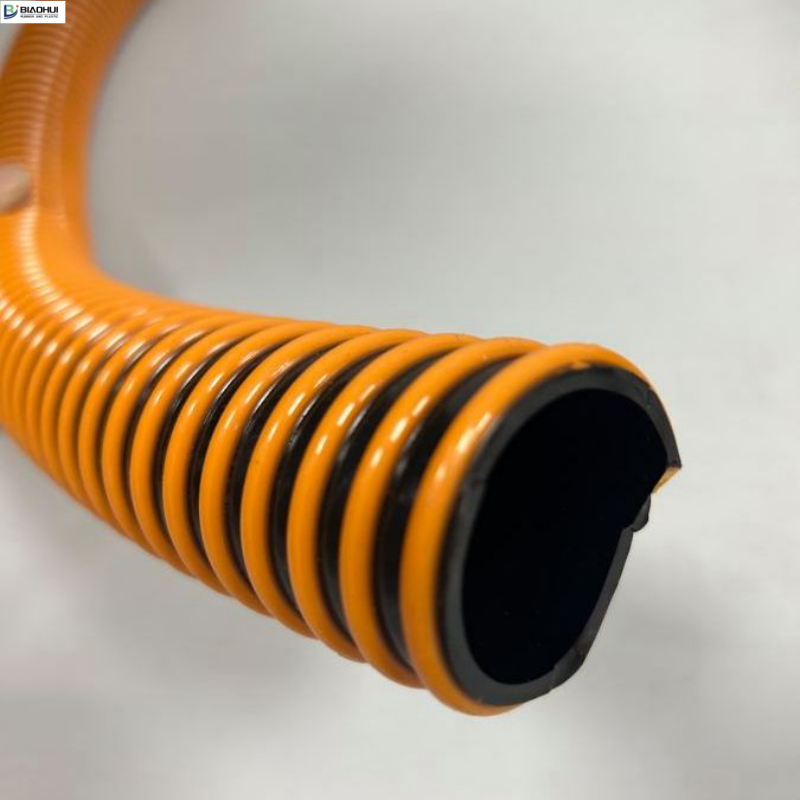

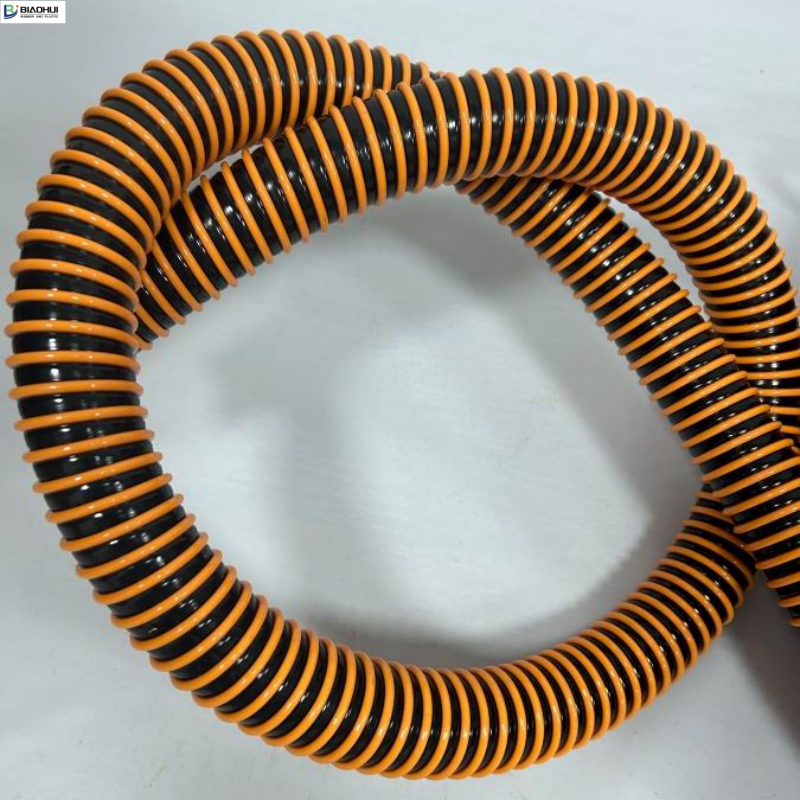

PVC Grit Reinforced Suction Hose
PVC suction hoses, Spiral Reinforced PVC Suction Hoses,water suction hoses with helix, PVC Suction and discharge hoses, PVC grit hoses.very ideally for conveying water, oil and powder, abrasive mineral sands, gravel, cement, chips, shavings, construction, agricultural, and industrial service applications.
Reinforced Suction Hose Applications:
drainage, and for transporting various powdery particles and liquids, it is widely used in civil and building works, agriculture, mining, construction, ship and fishery.
Pvc Suction Hose Features:
●Economical & flexible
●Abrasion & chemical resistant
●Impact & crush resistant
●Excellent bending radius

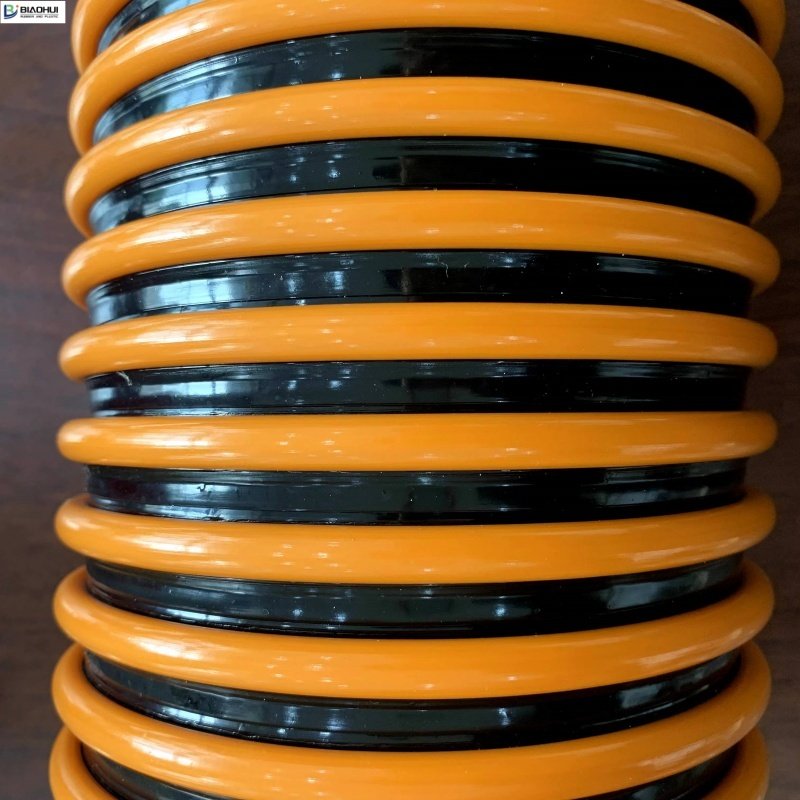

●Constructed with rigid spiral helix reinforcement

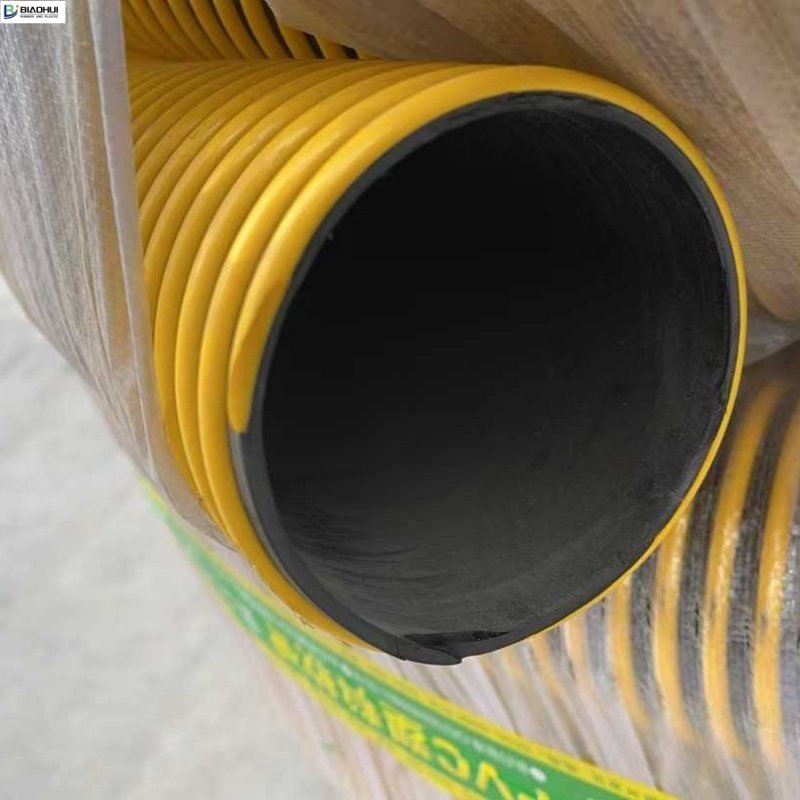

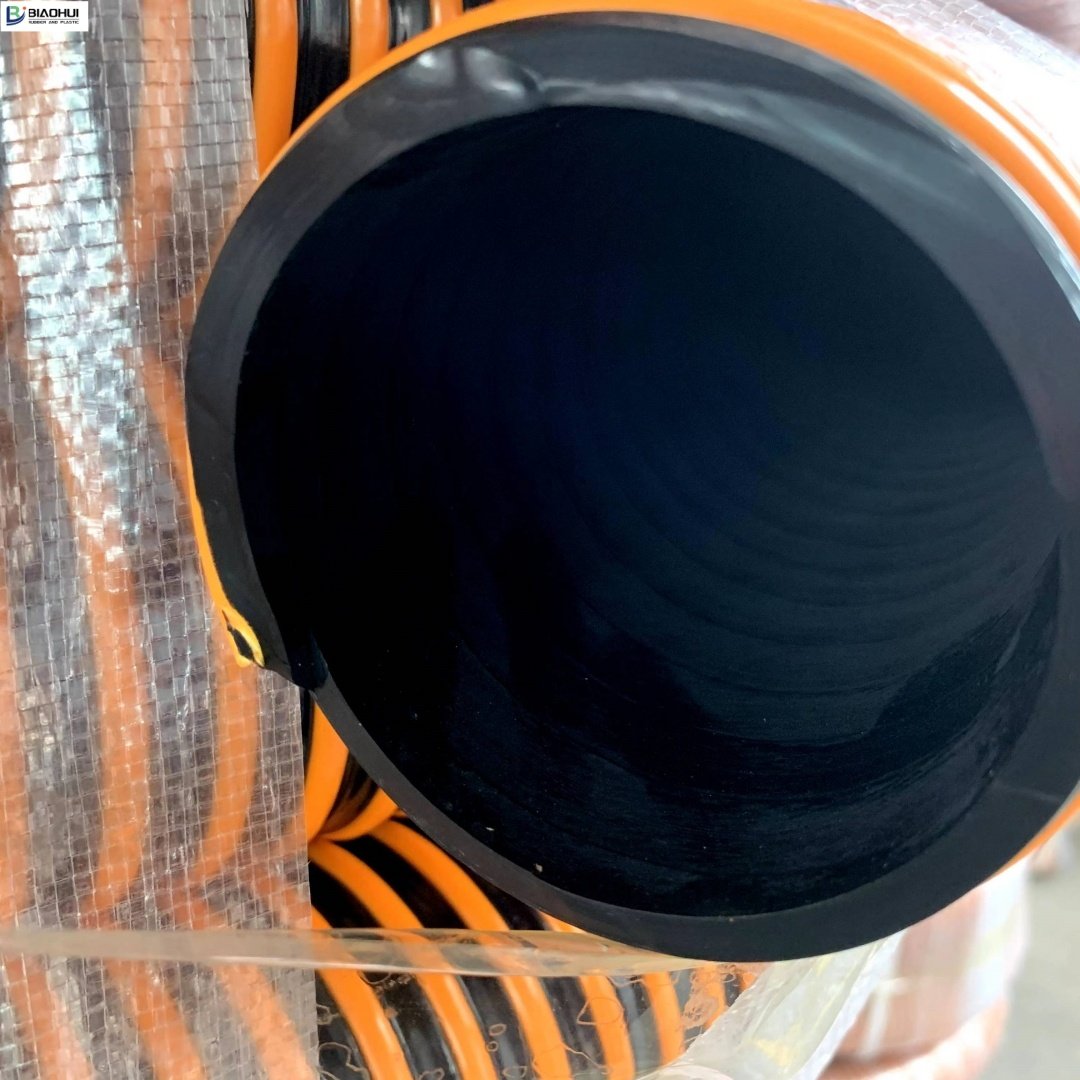

●Smooth inner construction for unrestricted flow of materials
PVC Suction Hose Temperature: -10℃(-50℉) to 65℃(+150℉)
PVC Reinforced Suction hose
| Part No. | size | Inner Diameter | Thickness (mm) | Weight | Length (m/coil) | Volume |
| inch | mm | kg/m | m³/roll | |||
| 1901 | 3/4″ | 19 | 2 | 0.18 | 30 | |
| 1902 | 2.5 | 0.23 | 30 | |||
| 1903 | 3 | 0.28 | 30 | |||
| 2501 | 1″ | 25 | 2 | 0.23 | 30 | |
| 2502 | 2.5 | 0.29 | 30 | |||
| 2503 | 3 | 0.35 | 30 | |||
| 2504 | 3.5 | 0.41 | 30 | |||
| 3201 | 1-1/4″ | 32 | 2.5 | 0.36 | 30 | |
| 3202 | 3 | 0.4 | 30 | |||
| 3203 | 3.5 | 0.45 | 30 | |||
| 3204 | 4 | 0.5 | 30 | |||
| 3801 | 1-1/2″ | 38 | 2.5 | 0.48 | 30 | |
| 3802 | 3 | 0.54 | 30 | |||
| 3803 | 3.5 | 0.62 | 30 | |||
| 3804 | 4 | 0.7 | 30 | |||
| 5001 | 2″ | 50 | 2 | 0.55 | 30 | |
| 5002 | 3 | 0.7 | 30 | |||
| 5003 | 4 | 0.92 | 30 | |||
| 5004 | 4.5 | 1.1 | 30 | |||
| 6301 | 2-1/2″ | 63 | 3 | 0.88 | 30 | |
| 6302 | 3.5 | 0.95 | 30 | |||
| 6303 | 4 | 1.18 | 30 | |||
| 6304 | 4.5 | 1.3 | 30 | |||
| 7501 | 3″ | 75 | 3 | 1.1 | 30 | |
| 7502 | 3.5 | 1.25 | 30 | |||
| 7503 | 4 | 1.38 | 30 | |||
| 7504 | 4.5 | 1.5 | 30 | |||
| 7505 | 5 | 1.65 | 30 | |||
| 1001 | 4″ | 100 | 4 | 1.6 | 30 | |
| 1002 | 4.5 | 1.9 | 30 | |||
| 1003 | 5 | 2.1 | 30 | |||
| 1004 | 5.5 | 2.4 | 30 | |||
| 1005 | 6 | 2.8 | 30 | |||
| 1251 | 5″ | 125 | 4.5 | 2.4 | 30 | |
| 1252 | 5 | 2.88 | 30 | |||
| J1253 | 6 | 3.2 | 30 | |||
| 1254 | 7 | 3.5 | 30 | |||
| 1501 | 6″ | 150 | 5 | 3 | 30 | |
| 1502 | 6 | 3.6 | 30 | |||
| 1503 | 7 | 4.5 | 30 | |||
| 1504 | 8 | 5.5 | 30 | |||
| 1505 | 9 | 6.3 | 30 | |||
| 1506 | 10 | 7.2 | 30 | |||
| 2001 | 8″ | 200 | 6 | 5 | 6/8/10 | |
| 2002 | 7 | 5.8 | ||||
| 2003 | 8 | 6.8 | ||||
| 2004 | 9 | 7.5 | ||||
| 2541 | 10″ | 254 | 8 | 10 | 6/8/10 | |
| 2542 | 10 | 12 | ||||
| 3051 | 12″ | 305 | 8 | 14 | ||
| 3052 | 10 | 15.5 |
