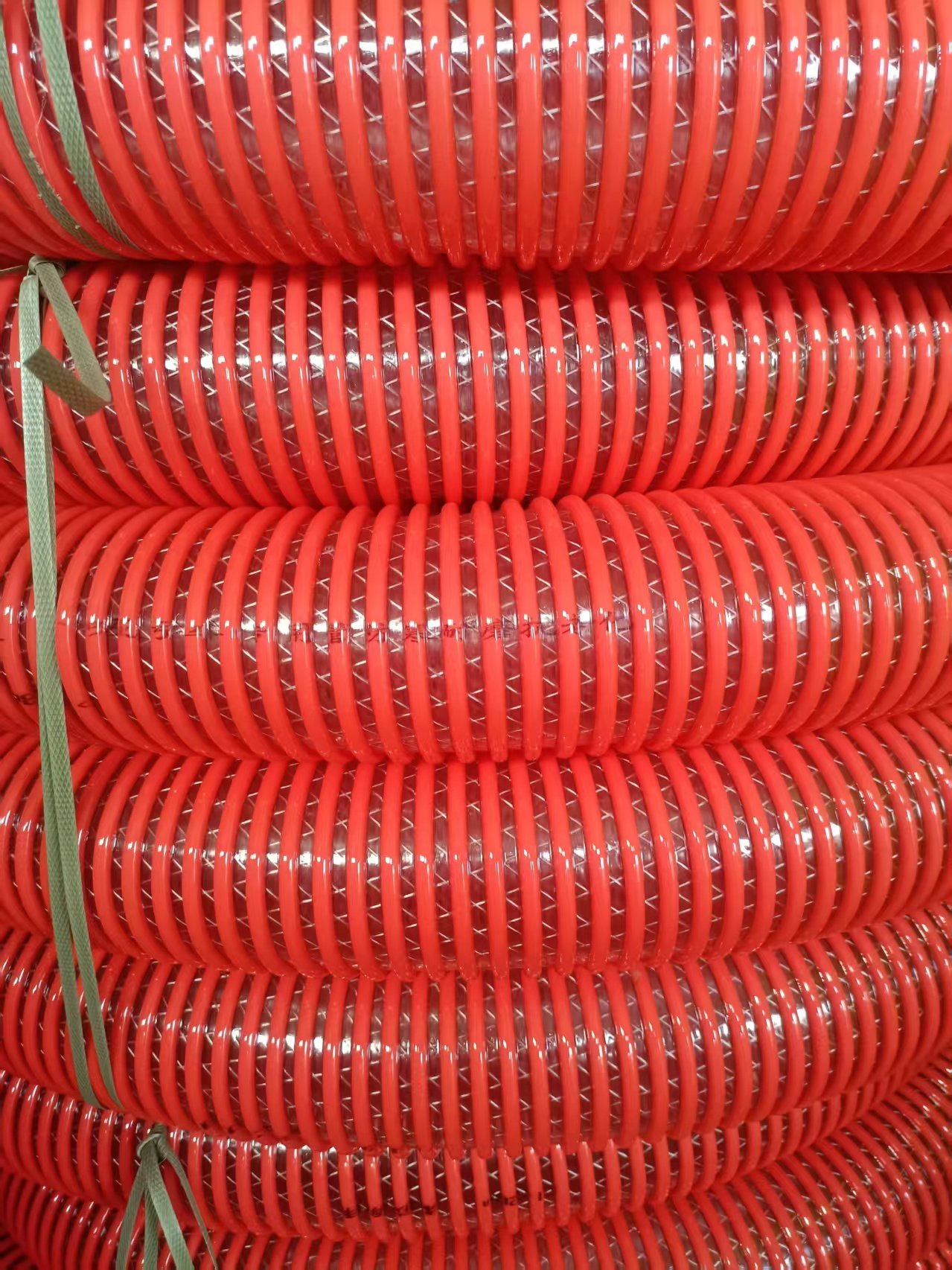

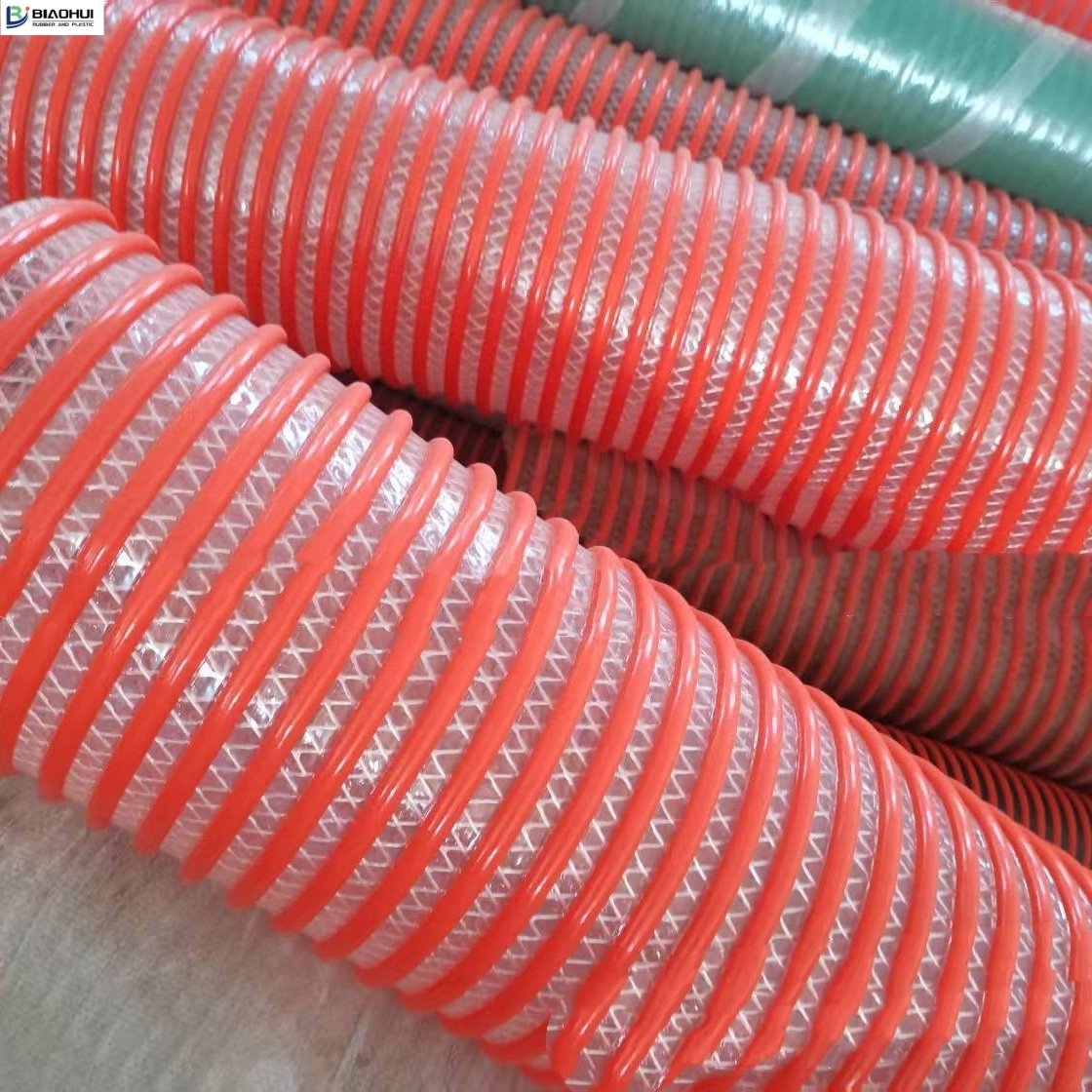

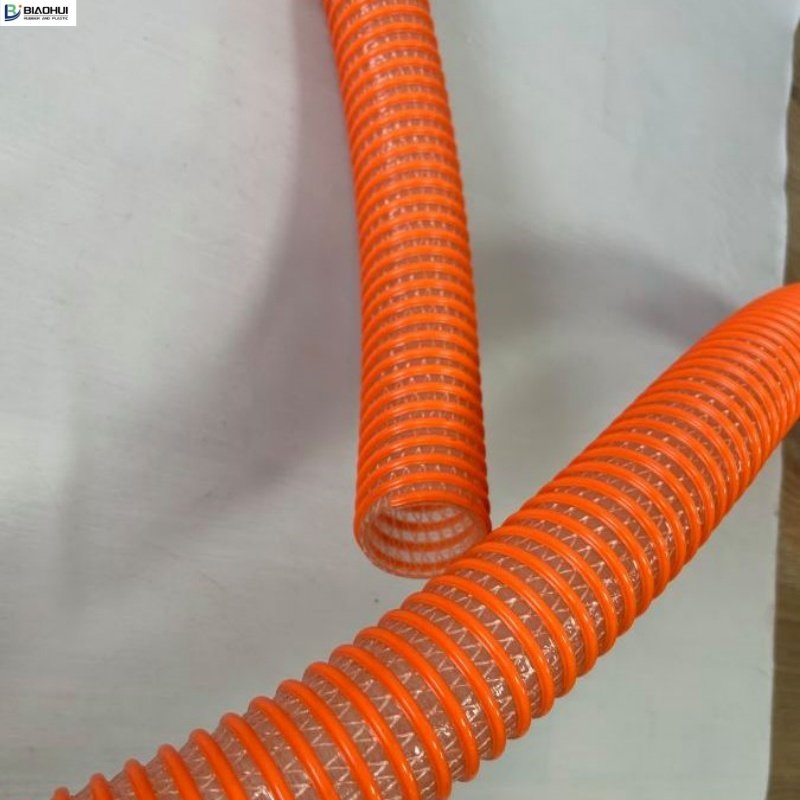

PVC Braided Suction Hose

PVC suction hoses, Spiral Reinforced PVC Suction Hoses,water suction hoses with helix, PVC Suction and discharge hoses, PVC grit hoses. very ideally for conveying water, oil and powder, abrasive mineral sands, gravel, cement, chips, shavings, construction,agricultural,and industrial service applications.

PVC Suction Hose Applications:

drainage, and for transporting various powdery particles and liquids, it is widely used in civil and building works, agriculture, mining, construction, ship and fishery.

Pvc Suction Hose Features:

●Economical & flexible

●Abrasion & chemical resistant

●Impact & crush resistant

●Excellent bending radius

●Constructed with rigid spiral helix reinforcement

●Smooth inner construction for unrestricted flow of materials

PVC Suction Hose Temperature: -10℃(-50℉) to 65℃(+150℉)

PVC Suction hose

Part No.	size	Inner Diameter	Thickness (mm)	Weight	Length (m/coil)	Volume
	inch	mm		kg/m		m³/roll
1901	3/4″	19	2	0.18	30
1902			2.5	0.23	30
1903			3	0.28	30
2501	1″	25	2	0.23	30
2502			2.5	0.29	30
2503			3	0.35	30
2504			3.5	0.41	30
3201	1-1/4″	32	2.5	0.36	30
3202			3	0.4	30
3203			3.5	0.45	30
3204			4	0.5	30
3801	1-1/2″	38	2.5	0.48	30
3802			3	0.54	30
3803			3.5	0.62	30
3804			4	0.7	30
5001	2″	50	2	0.55	30
5002			3	0.7	30
5003			4	0.92	30
5004			4.5	1.1	30
6301	2-1/2″	63	3	0.88	30
6302			3.5	0.95	30
6303			4	1.18	30
6304			4.5	1.3	30
7501	3″	75	3	1.1	30
7502			3.5	1.25	30
7503			4	1.38	30
7504			4.5	1.5	30
7505			5	1.65	30
1001	4″	100	4	1.6	30
1002			4.5	1.9	30
1003			5	2.1	30
1004			5.5	2.4	30
1005			6	2.8	30
1251	5″	125	4.5	2.4	30
1252			5	2.88	30
1253			6	3.2	30
1254			7	3.5	30
1501	6″	150	5	3	30
1502			6	3.6	30
1503			7	4.5	30
1504			8	5.5	30
1505			9	6.3	30
1506			10	7.2	30
2001	8″	200	6	5	6/8/10
2002			7	5.8
2003			8	6.8
2004			9	7.5
2541	10″	254	8	10	6/8/10
2542	10″	254	10	12
3051	12″	305	8	14
3052	12″	305	10	15.5
