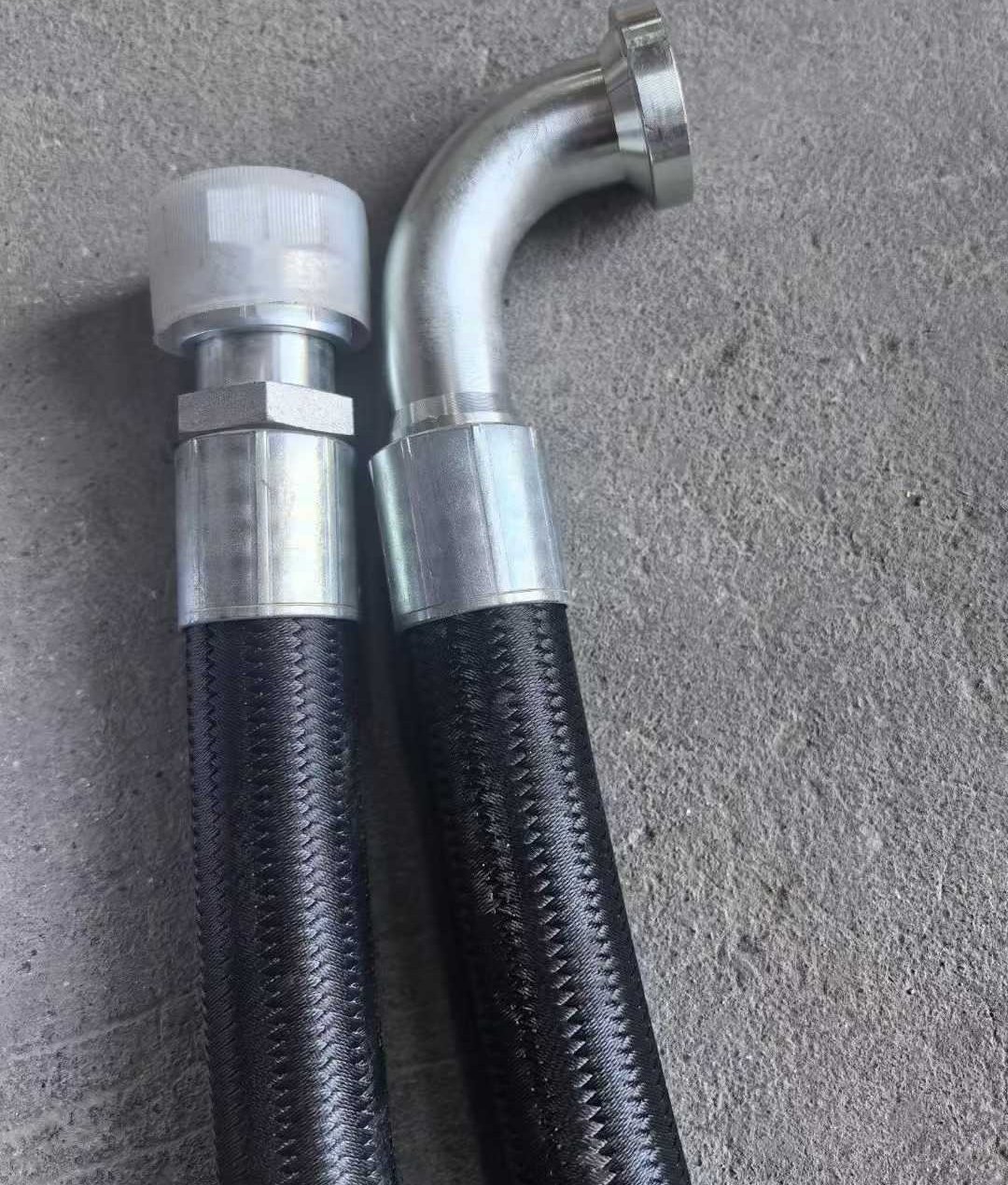

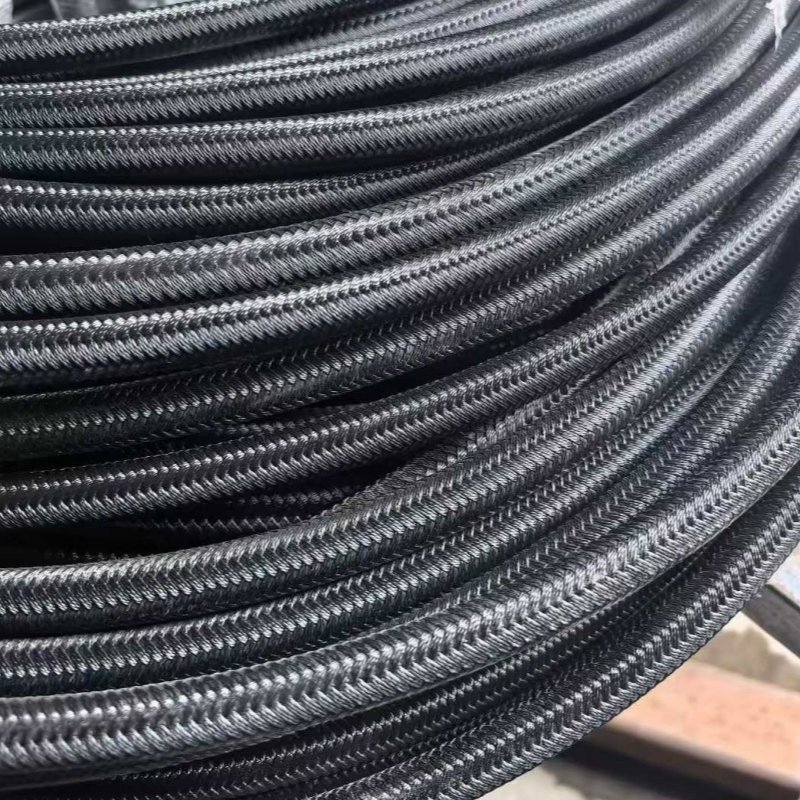

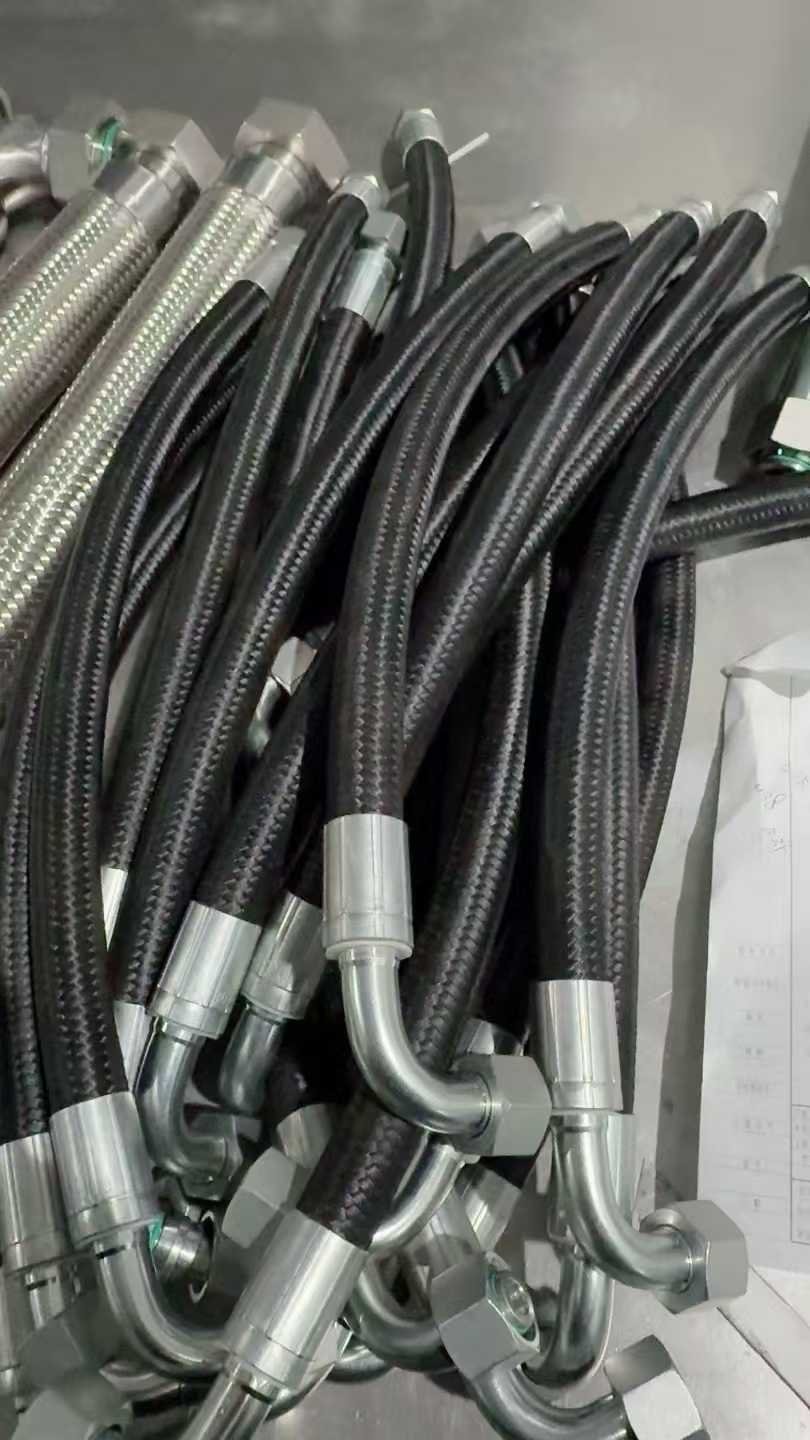

Hydraulic Rubber Hose SAE100 R5
SAE 100 R5 steel wire reinforced hydraulic hose is suitable for impacted medium pressure hydraulic petroleum based oils, lubricants and water & air piping, such as air brake, power steering, fuel filter, turbocharger and oil cylinder of heavy commercial vehicles. It consists of three parts: tube, reinforce and cover. The tube absorbs black synthetic rubber, which is resistant to oils and heat. The reinforce absorbs one layer of high tensile braided steel wire, making the hose have solid structure. While the cover absorbs braided fiber, making the hose resistant to weather and ozone.
ONE LAYER WIRE BRAID, TEXTILE COVERED HYDRAULIC HOSE
Construction:
INNER TUBE:oil resistant synthetic nitrile rubber
REINFORCEMENT:single layer of steel wire braided
COVER:single layer of fibre braided
APPLICATION:petroleum base and water base hydraulic fluids
TEMPERATURE RANGE:-40ºC (-104 ºF ) to +100ºC(+212 ºF)
| Item Code | Metric Size | Inch Size | SAE Dash size | I.D | O.D | Max W.P | Min B.P | Min B.R | W.T | |||
| Standard(mm) | Standard(mm) | |||||||||||
| mm | Inches | Dash | Min | Max | Min | Max | Mpa | Psi | Mpa | mm | Kg/m | |
| R5-05 | 5 | 3/16 | 03 | 4.8 | 5.5 | 12.7 | 13.7 | 21.0 | 3050 | 84.0 | 75 | 0.22 |
| R5-06 | 6.4 | 1/4 | 04 | 6.4 | 7.2 | 14.3 | 15.3 | 21.0 | 3050 | 84.0 | 85 | 0.26 |
| R5-08 | 8 | 5/16 | 05 | 7.9 | 8.7 | 16.7 | 17.6 | 15.7 | 2280 | 62.8 | 100 | 0.32 |
| R5-11 | 11 | 13/32 | 06 | 10.3 | 11.1 | 18.9 | 20.0 | 14.0 | 2030 | 56.0 | 115 | 0.37 |
| R5-12 | 12.5 | 1/2 | 08 | 12.7 | 13.7 | 22.8 | 24.0 | 12.2 | 1770 | 48.8 | 140 | 0.55 |
| R5-16 | 16 | 5/8 | 10 | 15.9 | 17.0 | 26.8 | 28.0 | 10.5 | 1520 | 42.0 | 165 | 0.63 |
| R5-22 | 22 | 7/8 | 14 | 22.2 | 23.3 | 30.6 | 32.2 | 5.6 | 810 | 22.4 | 185 | 0.70 |
| R5-29 | 29 | 1-1/8 | 18 | 28.6 | 29.8 | 37.3 | 38.9 | 4.3 | 620 | 17.2 | 230 | 0.83 |
| R5-35 | 35 | 1-3/8 | 22 | 34.9 | 36.1 | 43.7 | 45.2 | 3.5 | 510 | 14.0 | 265 | 0.98 |
| R5-46 | 46 | 1-13/16 | 29 | 46.0 | 47.2 | 55.2 | 57.6 | 2.4 | 350 | 9.6 | 335 | 1.37 |
| R5-60 | 60 | 2-3/8 | 38 | 60.3 | 61.9 | 71.8 | 74.2 | 2.4 | 350 | 9.6 | 610 | 1.89 |
| R5-76 | 76 | 3 | 48 | 76.2 | 77.8 | 89.3 | 91.7 | 1.4 | 200 | 5.6 | 840 | 2.71 |
