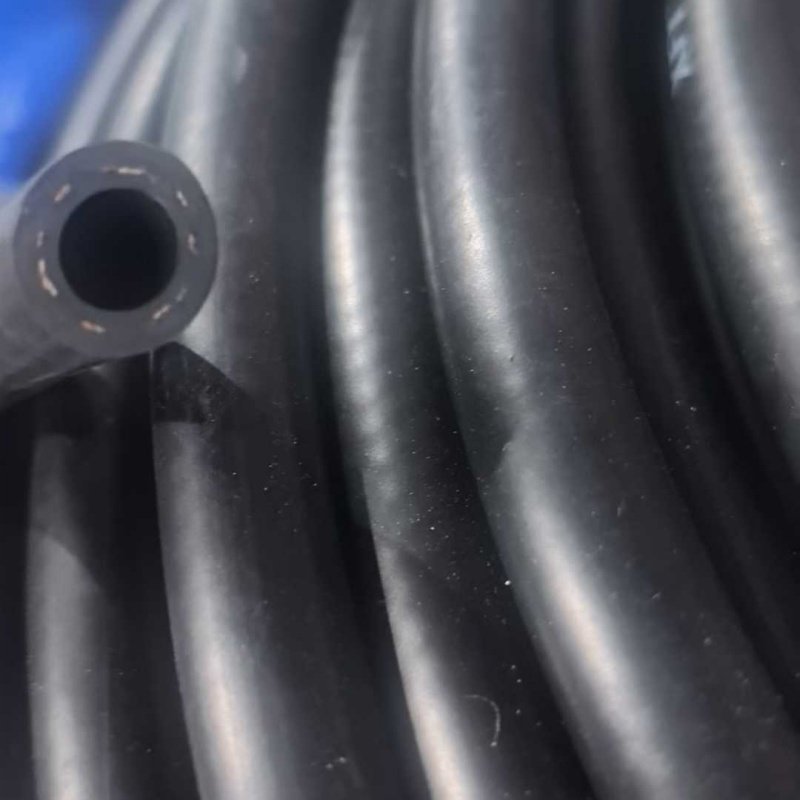

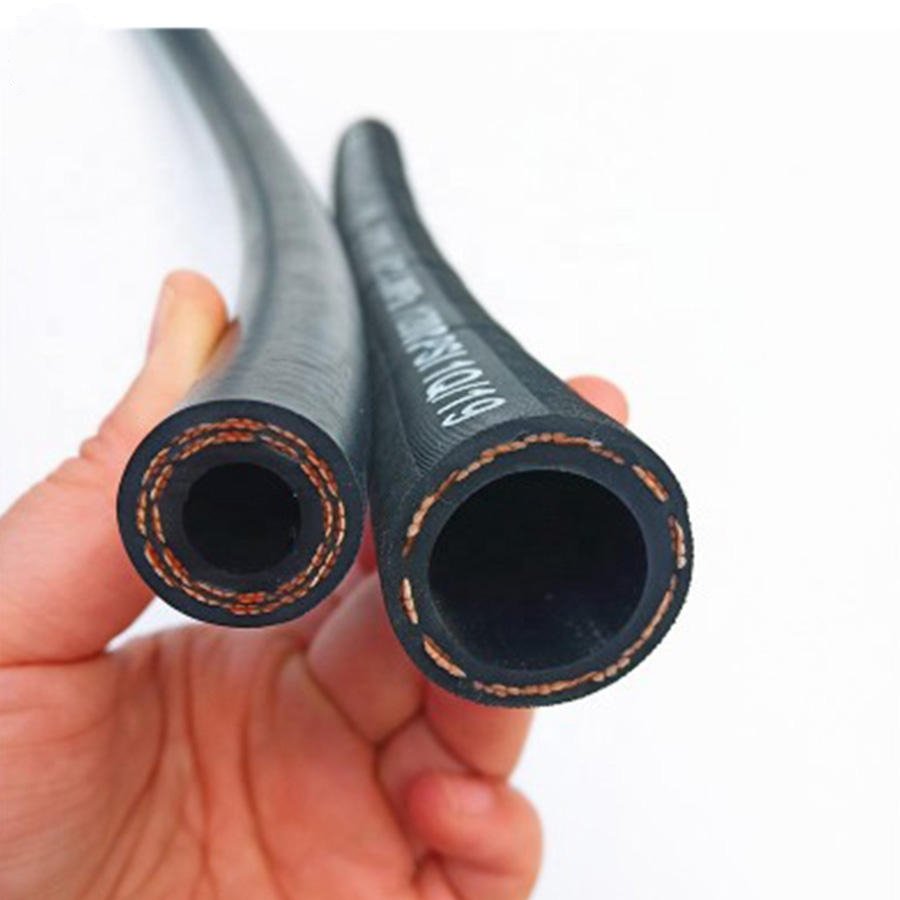

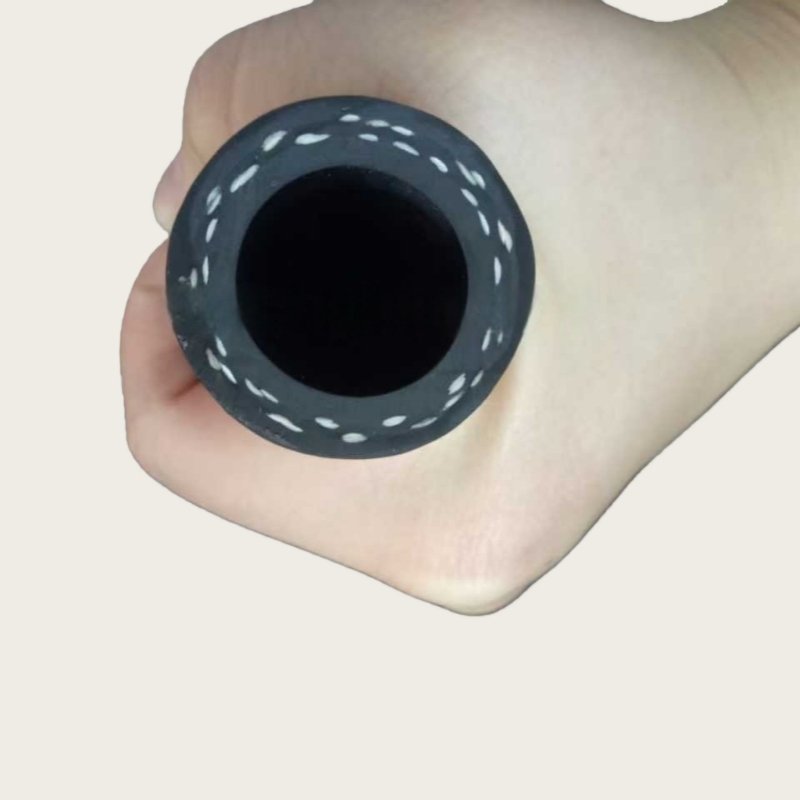

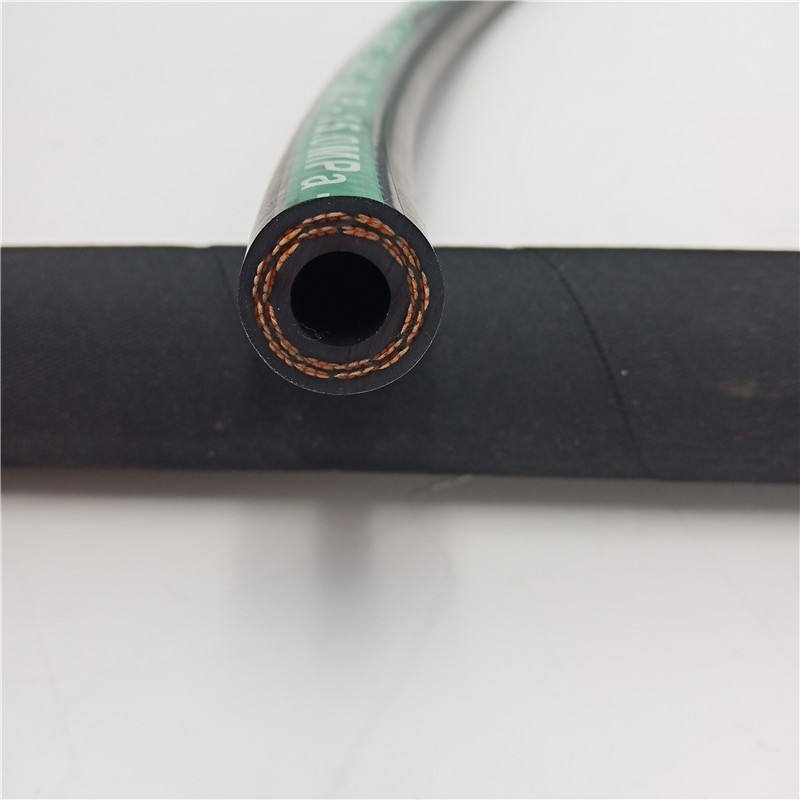

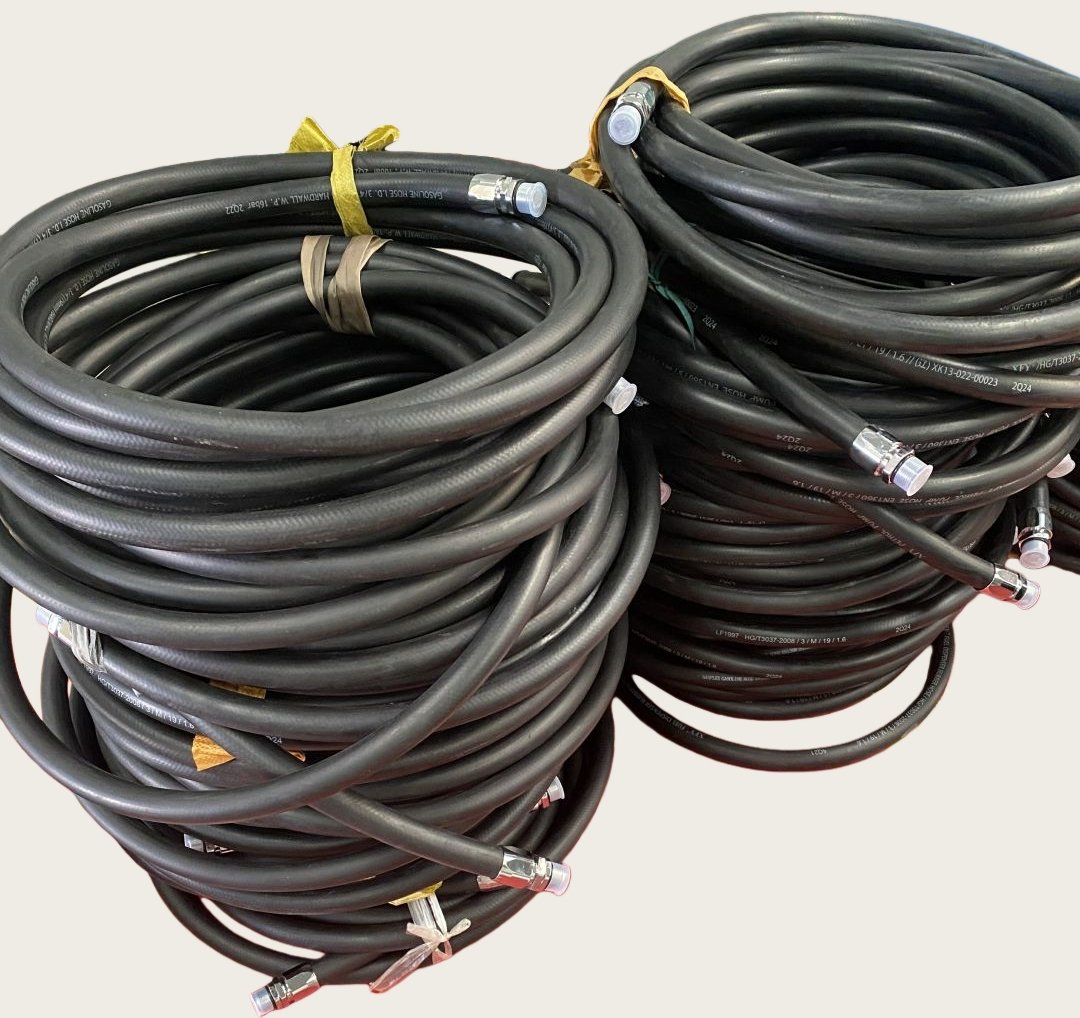

Hydraulic Rubber Hose EN 854 3TE

EN 854 3TE textile reinforced hydraulic hose is suitable for delivering petroleum-based hydraulic fluids and it is mainly used for medium pressure applications. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality oil resistant synthetic rubber, making the hose widely used for delivering petroleum-based hydraulic oils. The reinforcement is made from two layers of braided textile, making the hose lightweight and have excellent flexibility. What’s more, the hose is easy to operate. The cover is made from high quality black oil, weather, abrasion and corrosion synthetic rubber, making the hose have wide application and long service life.

Model NO： EN 854 3TE

Inner tube：Oil resistant Synthetic Rubber

Reinforcement：Two layers high tensile textile braids

Cover：Weather Resistant synthetic rubber

Temperature Range：-40° to +212°F（-40°C to +100°C）

Application：The hoses are ideally suited for the secure transport of hydraulic oil based on mineral oil. They are resistand to oil and grease
as well as ozone and UV radiation. Design in accordance with DIN EN854.
