Hydraulic Rubber Hose SAE100 R2 AT/EN 853 2SN

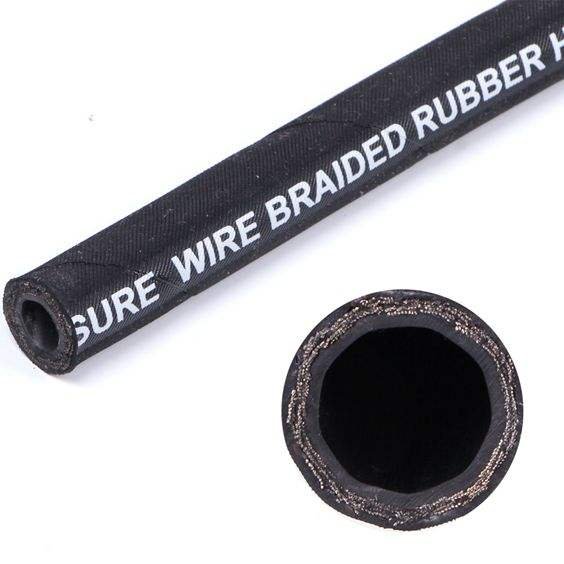

SAE100 R2 steel wire reinforced hydraulic hose is suitable for delivering petroleum-base hydraulic oils thanks to its oil resistant tube. Besides, it can convey the oils without producing excessive heat and leak. It mainly serves in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment. It is composed of three parts: tube, reinforce and cover. The tube is made from oil resistant synthetic rubber. So it is mainly to transfer oils. The reinforce absorbs two layers of high tensile braided steel wires. Thus the hose have solid structure and resistant to high pressure. Therefore, it has excellent performance in high pressure working environment. While the cover absorbs high quality synthetic rubber, which is resistant to weather, ozone, corrosion, abrasion, aging, sunlight and cut. Therefore, the hose has longer service life as a result.

Send Inquiry
TWO LAYER STEEL WIRE REINFORCED, HYDRAULIC HOSE

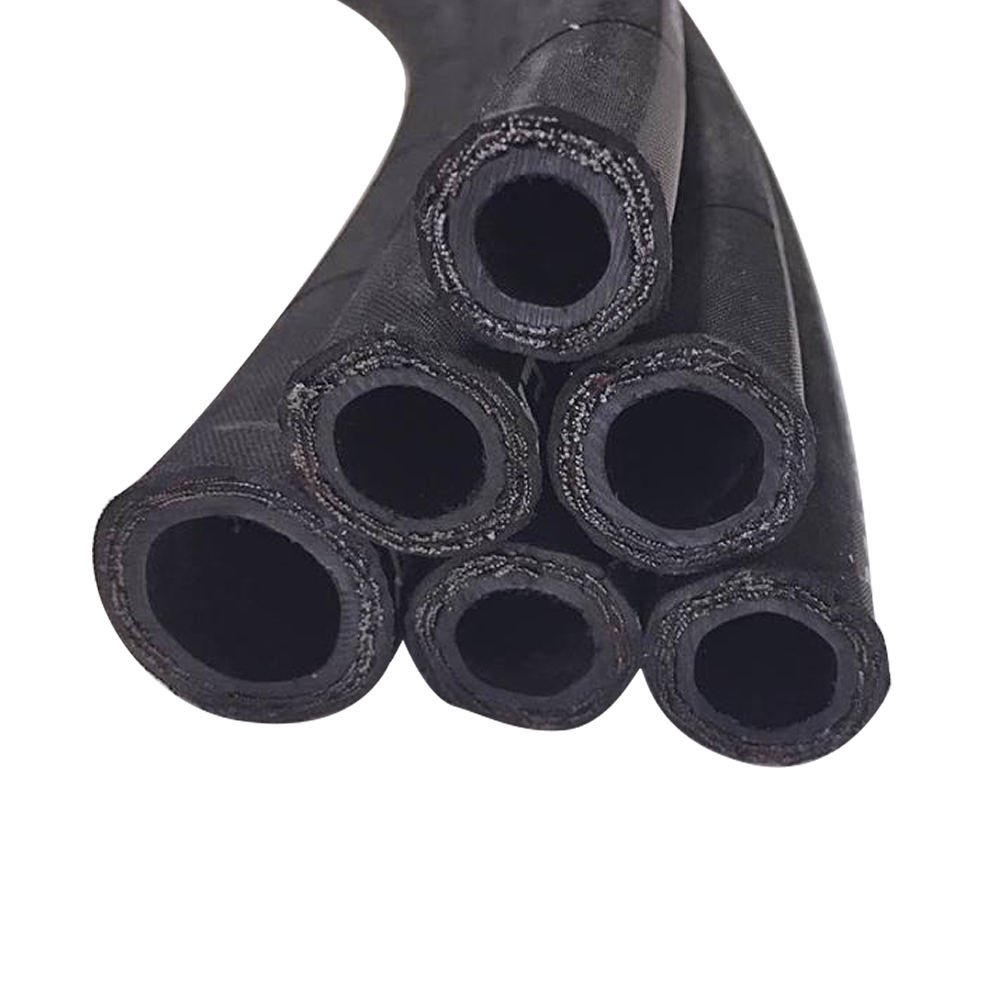

Construction:

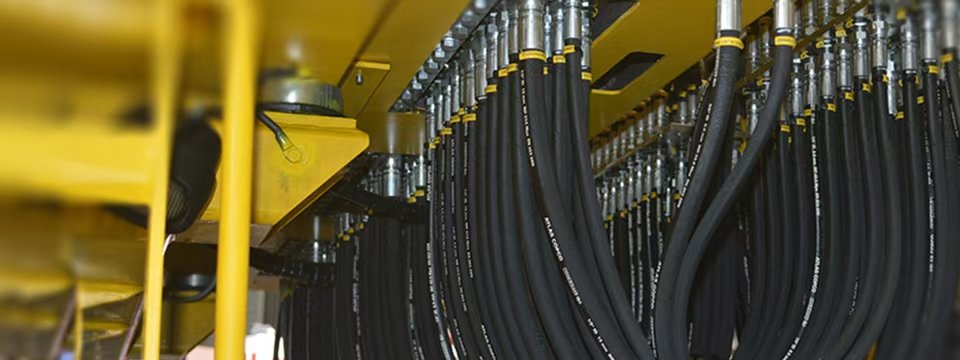

For high pressure hydraulic systems in industry and agriculture.

INNER TUBE: oil resistant NBR

REINFORCEMENT: two layers of steel wire braided

COVER: oil and weather resistant synthetic rubber

SURFACE: wrapped or smooth surface

Application:

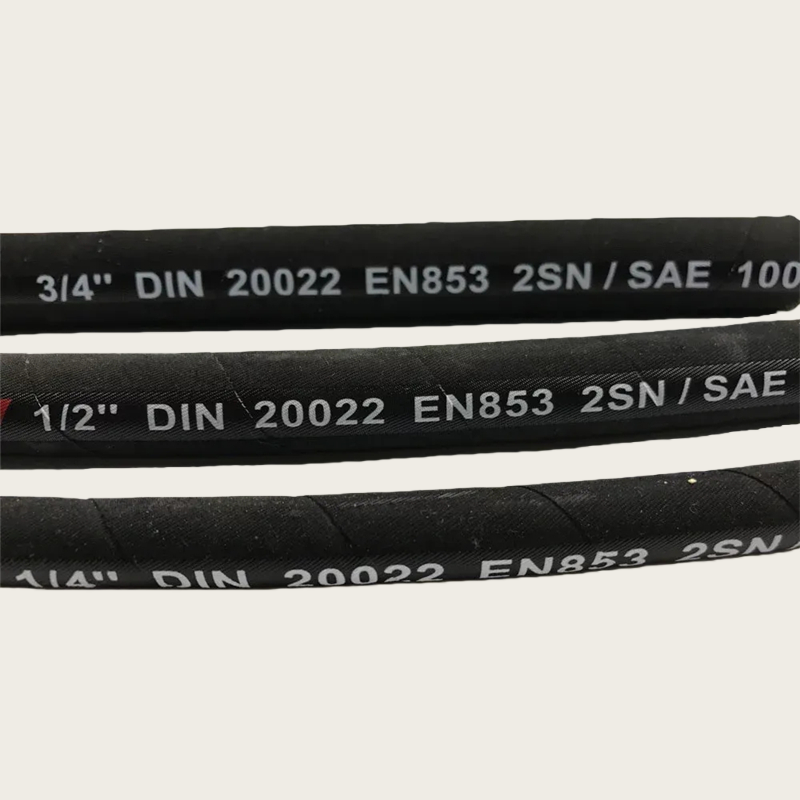

High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2AT performance requirements of EN853 2SN.

For high pressure hydraulic systems in industry and agriculture

Temperature Range:40ºC (-104 ºF ) to 100ºC(+212 ºF)

SAE 100 R2 AT
Item Code Metric Size Inch Size SAE  Dash size I.D REINFORCEMENTW.D O.D W.P B.P Min.bending radius Weight
(mm) (mm) (mm)
mm Inches Dash Min Max Min Max Max Mpa Psi Mpa mm Kg/m
R2-05 5.0 3/16″ 03 4.6 5.4 10.6 11.7 14.1 35.0 5250 140.0 90 0.32
R2-06 6.3 1/4″ 04 6.2 7.0 12.1 13.3 15.7 35.0 5250 140.0 100 0.36
R2-08 8.0 5/16″ 05 7.7 8.5 13.7 14.9 17.3 29.7 4455 119.0 115 0.45
R2-10 10.0 3/8″ 06 9.3 10.1 16.1 17.3 19.7 28.0 4200 112.0 125 0.54
R2-13 12.5 1/2″ 08 12.3 13.5 19.0 20.6 23.1 24.5 3675 98.0 180 0.68
R2-16 16.0 5/8″ 10 15.5 16.7 22.2 23.8 26.3 19.2 2880 77.0 205 0.80
R2-19 19.0 3/4″ 12 18.6 19.8 26.2 27.8 30.2 15.7 2355 63.0 240 0.94
R2-25 25.0 1 16 25.0 26.4 34.1 35.7 38.9 14.0 2100 56.0 300 1.35
R2-32 31.5 1.1/4″ 20 31.4 33.0 43.2 45.6 49.6 11.3 1695 45.5 420 2.15
R2-38 38.0 1.1/2″ 24 37.7 39.3 49.6 52.0 56.0 8.7 1305 43.5 500 2.65
R2-51 51.0 2 30 50.4 52.0 62.3 64.7 68.6 7.8 1170 31.5 630 3.42
EN 853 2SN
Item Code Metric Size Inch Size SAE  Dash size I.D REINFORCEMENTW.D O.D W.P B.P Min.bending radius Weight
(mm) (mm) (mm)
mm Inches Dash Min Max Min Max Max Mpa Psi Mpa mm Kg/m
2SN-05 5.0 3/16″ 03 4.6 5.4 10.6 11.6 14.1 41.5 6225 165 90 0.32
2SN-06 6.3 1/4″ 04 6.2 7.0 12.1 13.3 15.7 40.0 6000 160 100 0.36
2SN-08 8.0 5/16″ 05 7.7 8.5 13.7 14.9 17.3 35.0 5250 140 115 0.45
2SN-10 10.0 3/8″ 06 9.3 10.1 16.1 17.3 19.7 33.0 4950 132 130 0.54
2SN-13 12.5 1/2″ 08 12.3 13.5 19.0 20.6 23.0 27.5 4125 110 180 0.68
2SN-16 16.0 5/8″ 10 15.5 16.7 22.2 23.8 26.2 25.0 3750 100 200 0.80
2SN-19 19.0 3/4″ 12 18.6 19.8 26.2 27.8 30.1 21.5 3225 85 240 0.94
2SN-25 25.0 1 16 25.0 26.4 34.1 35.7 38.9 16.5 2475 65 300 1.35
2SN-31 31.5 1.1/4″ 20 31.4 33.0 43.3 45.6 49.5 12.5 1875 50 420 2.15
2SN-38 38.0 1.1/2″ 24 37.7 39.3 49.6 52.0 55.9 9.0 1350 36 500 2.65
2SN-51 51.0 2 30 50.4 52.0 62.3 64.7 68.6 8.0 1200 32 630 3.42
