Hydraulic Hose SAE 100R14

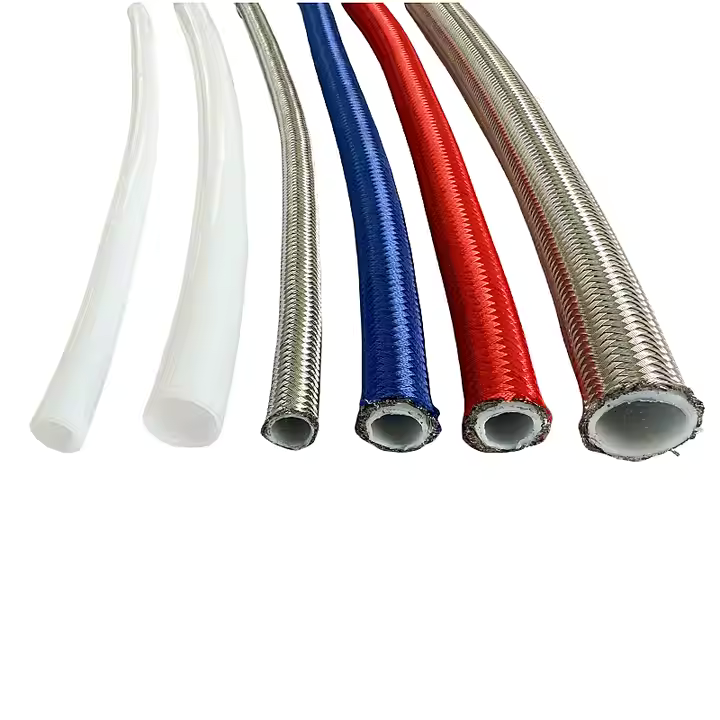

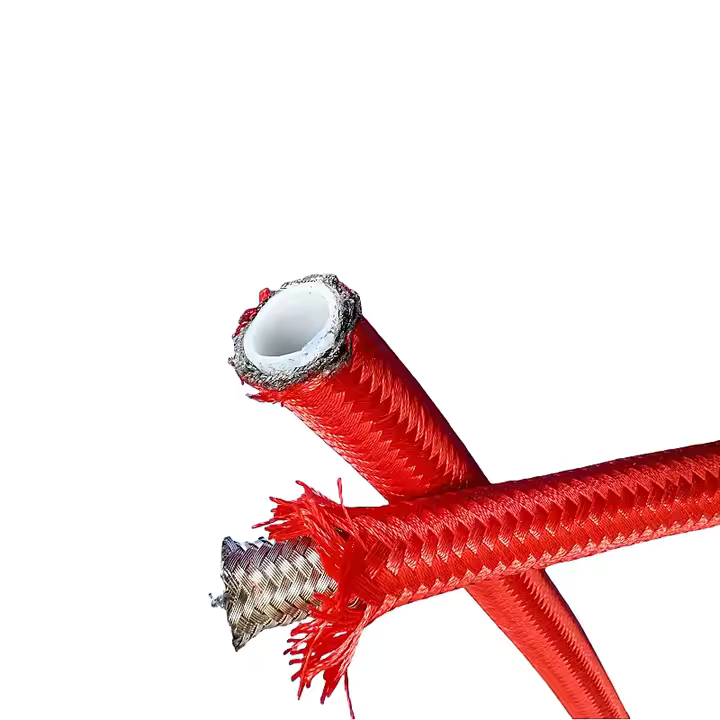

SAE 100 R14 is a special hose with PTFE inner tube
Stainless steel wire and the ends coat enhanced layer composed of metal connectors.
PTFE Hose assemblies is light in weight. Besides, it resists aging, chemical corrosion, high and low temp. It can transfer both liquid and gas. It applys to aviation, aerospace aircraft , servo control, lubricant and fuel system.

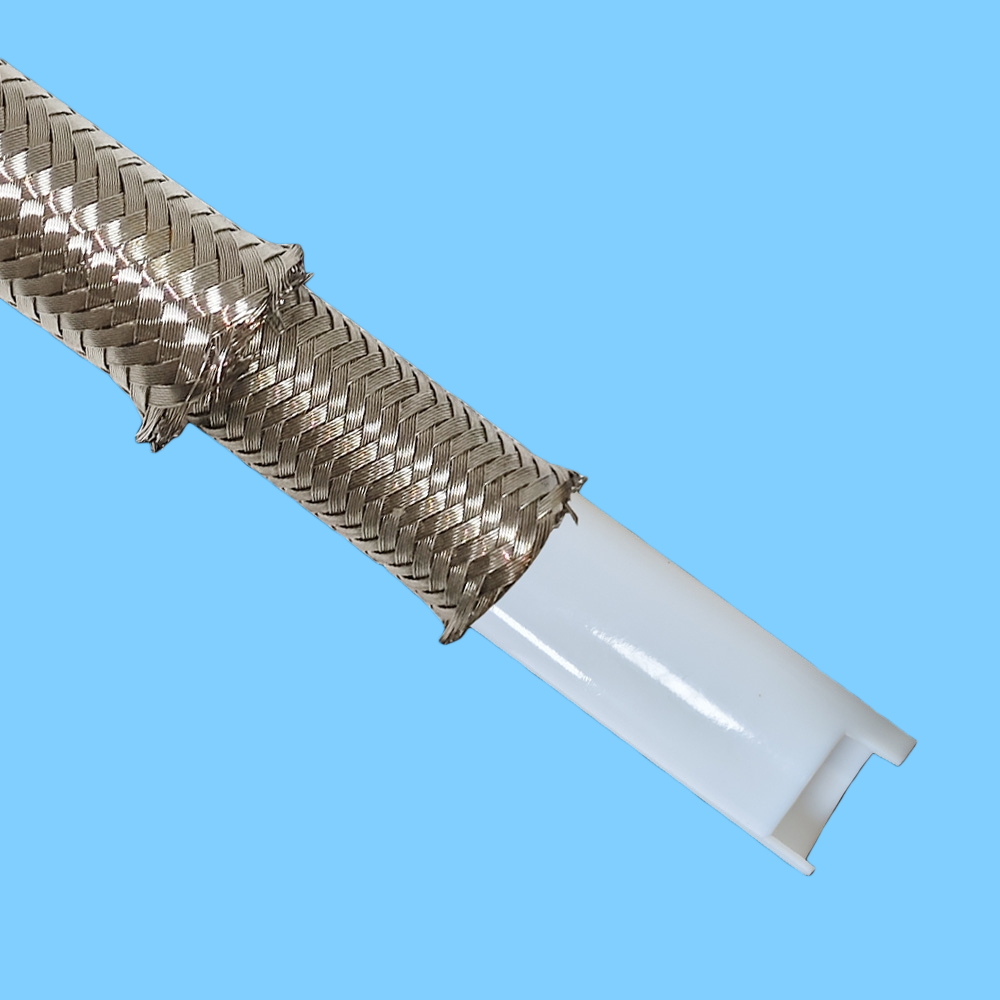

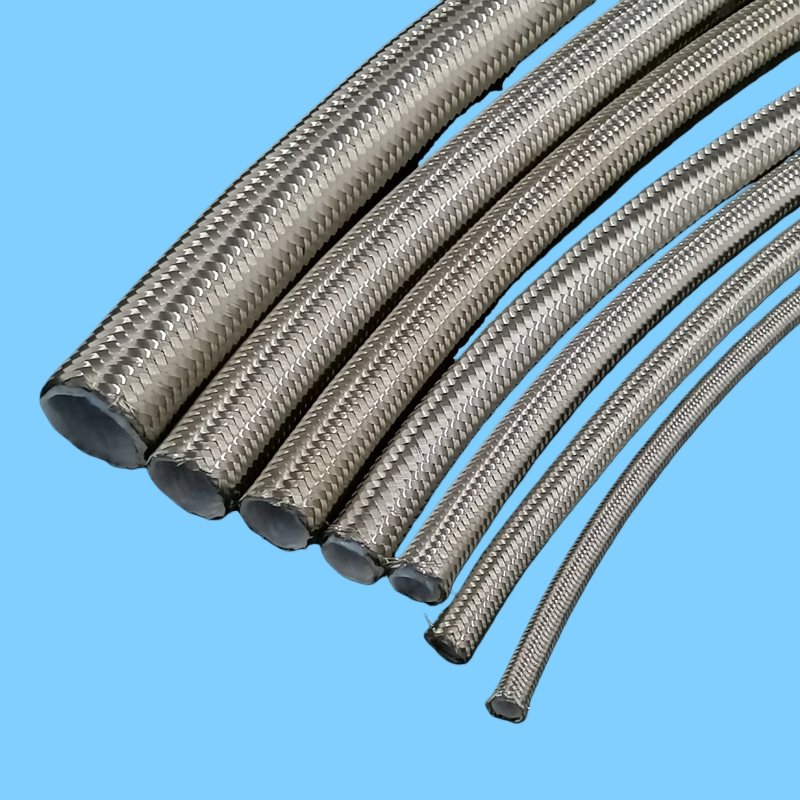

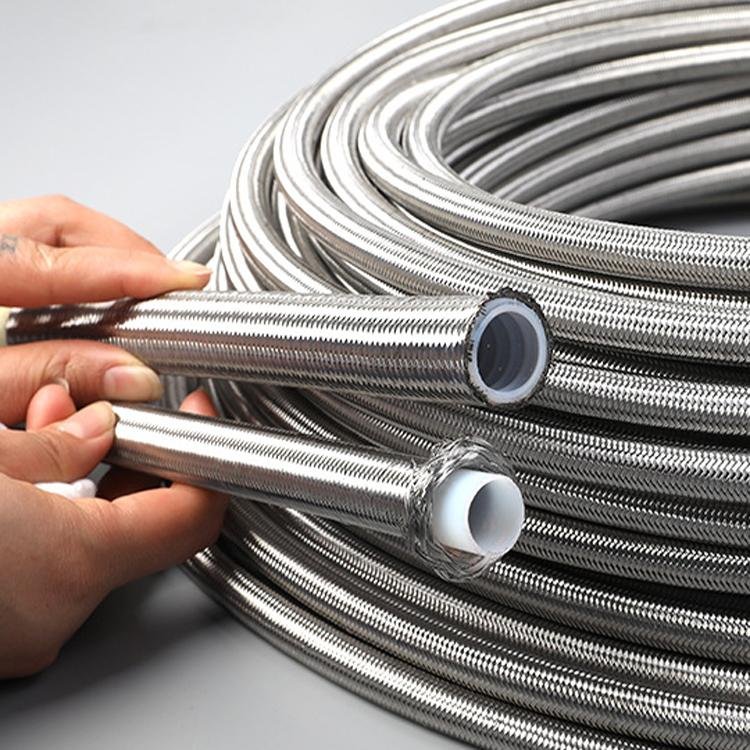

Inner Smooth Bore Hose
Construction:
Tube:100% PTFE resin
Cover:single or double AISI 304 or 316 stainless steel wire outer braid
APPLICATION:
Design being used in automotive, fluid handling, chemical transfer, paint,pharmaceutical, food & beverage processing, cosmetics and general-purpose applications.
| Item code | Size | I.D | O.D | Wall Thickness | W.P | B.P | Minimum Bending Radius | ||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm | |
| SR14-35 | 1/8″ | 3.5 | 0.138 | 6.6 | 0.26 | 1 | 4733 | 326 | 14613 | 1007.76 | 51 |
| SR14-48 | 3/16″ | 4.8 | 0.189 | 8 | 0.315 | 0.85 | 3579 | 247 | 10738 | 740.52 | 75 |
| SR14-64 | 1/4″ | 6.4 | 0.252 | 9.2 | 0.362 | 0.85 | 3106 | 214.2 | 9658 | 666.06 | 81 |
| SR14-80 | 5/16″ | 8 | 0.315 | 11 | 0.433 | 0.85 | 2781 | 191.76 | 8682 | 598.74 | 92 |
| SR14-97 | 3/8″ | 9.7 | 0.382 | 12.8 | 0.504 | 0.85 | 2736 | 188.7 | 8223 | 567.12 | 131 |
| SR14-127 | 1/2″ | 12.7 | 0.5 | 15.9 | 0.626 | 1 | 1568 | 108.12 | 6818 | 470.22 | 182 |
| SR14-160 | 5/8″ | 16 | 0.63 | 19.2 | 0.756 | 1 | 1878 | 129.54 | 5650 | 389.64 | 211 |
| SR14-190 | 3/4″ | 19 | 0.748 | 22.7 | 0.894 | 1.2 | 1154 | 79.56 | 3979 | 274.38 | 338 |
| SR14-222 | 7/8″ | 22.2 | 0.874 | 26 | 1.024 | 1.2 | 887 | 61.2 | 2884 | 198.9 | 421 |
| SR14-250 | 1″ | 25 | 0.984 | 29.3 | 0.154 | 1.5 | 592 | 40.8 | 2263 | 156.06 | 539 |
| SR14-500 | 2″ | 50 | 1.969 | 55.6 | 2.189 | 2 | 444 | 30.6 | 1775 | 122.4 | 1015 |

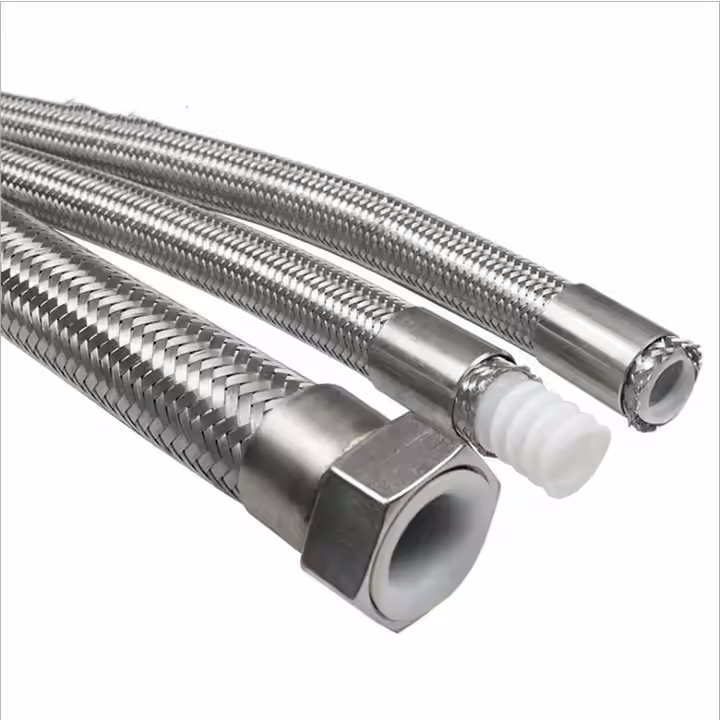

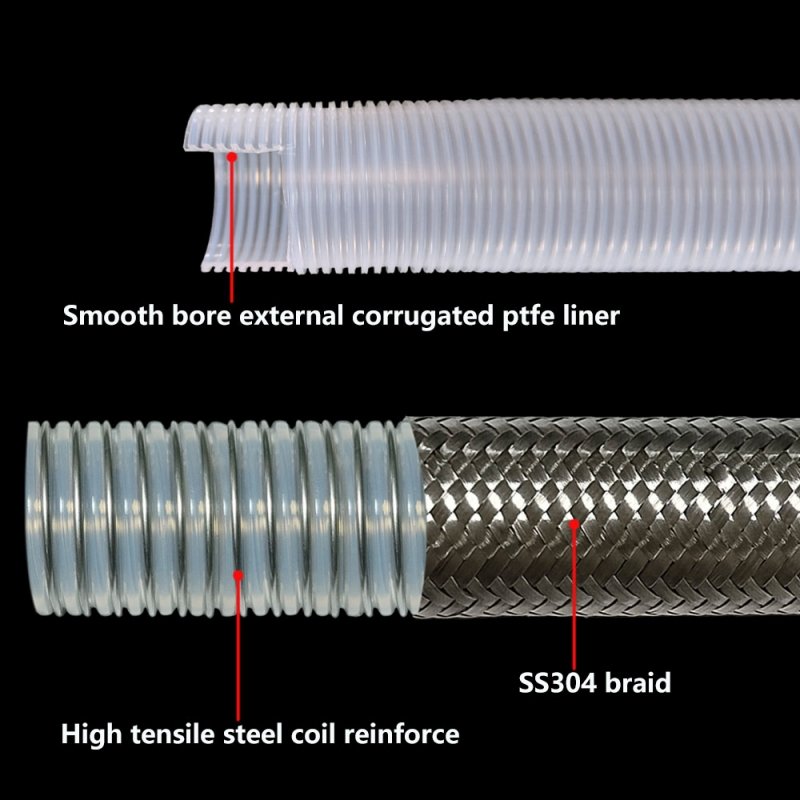

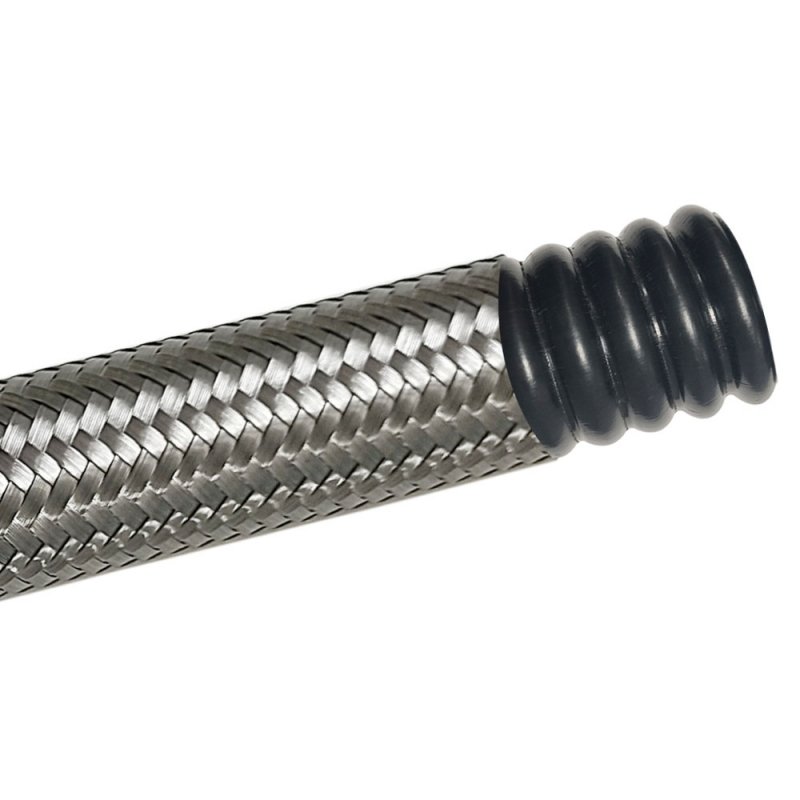

Inner Convoluted Hose
Construction:
Tube:100% PTFE resin
Cover:single or double AISI 304 or 316 stainless steel wire outer braid
APPLICATION:
It features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings, high temperature media transfer and general-purpose applications.
| Item code | Size | I.D | O.D | Wall Thickness | W.P | B.P | Minimum Bending Radius | ||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm | |
| CR14-065 | 1/4″ | 6.5 | 0.256 | 11.5 | 0.453 | 0.8 | 1923 | 133 | 5546 | 382.5 | 20 |
| CR14-08 | 5/16″ | 8 | 0.315 | 12.3 | 0.484 | 0.65 | 1923 | 132.6 | 5324 | 367.2 | 25 |
| CR14-10 | 3/8″ | 10 | 0.394 | 14.2 | 0.559 | 0.65 | 1849 | 127.5 | 5177 | 357 | 33 |
| CR14-13 | 1/2″ | 13 | 0.512 | 17.2 | 0.677 | 0.85 | 1627 | 112.2 | 4881 | 336.6 | 42 |
| CR14-16 | 5/8″ | 16 | 0.63 | 21.6 | 0.85 | 0.9 | 1183 | 81.6 | 3560 | 244.8 | 60 |
| CR14-19 | 3/4″ | 19 | 0.748 | 25.3 | 0.996 | 1 | 1036 | 71.4 | 3108 | 214.2 | 63 |
| CR14-25 | 1″ | 25 | 0.984 | 31 | 1.22 | 1 | 740 | 51 | 2219 | 153 | 79 |
| CR14-32 | 1-1/4″ | 32 | 1.26 | 39 | 1.535 | 1.1 | 710 | 48.96 | 2071 | 142.8 | 125 |
| CR14-38 | 1-1/2″ | 38 | 1.496 | 45 | 1.772 | 1.45 | 636 | 43.86 | 1775 | 122.4 | 145 |
| CR14-50 | 2″ | 50 | 1.969 | 60 | 2.362 | 1.5 | 503 | 34.68 | 1479 | 102 | 180 |
