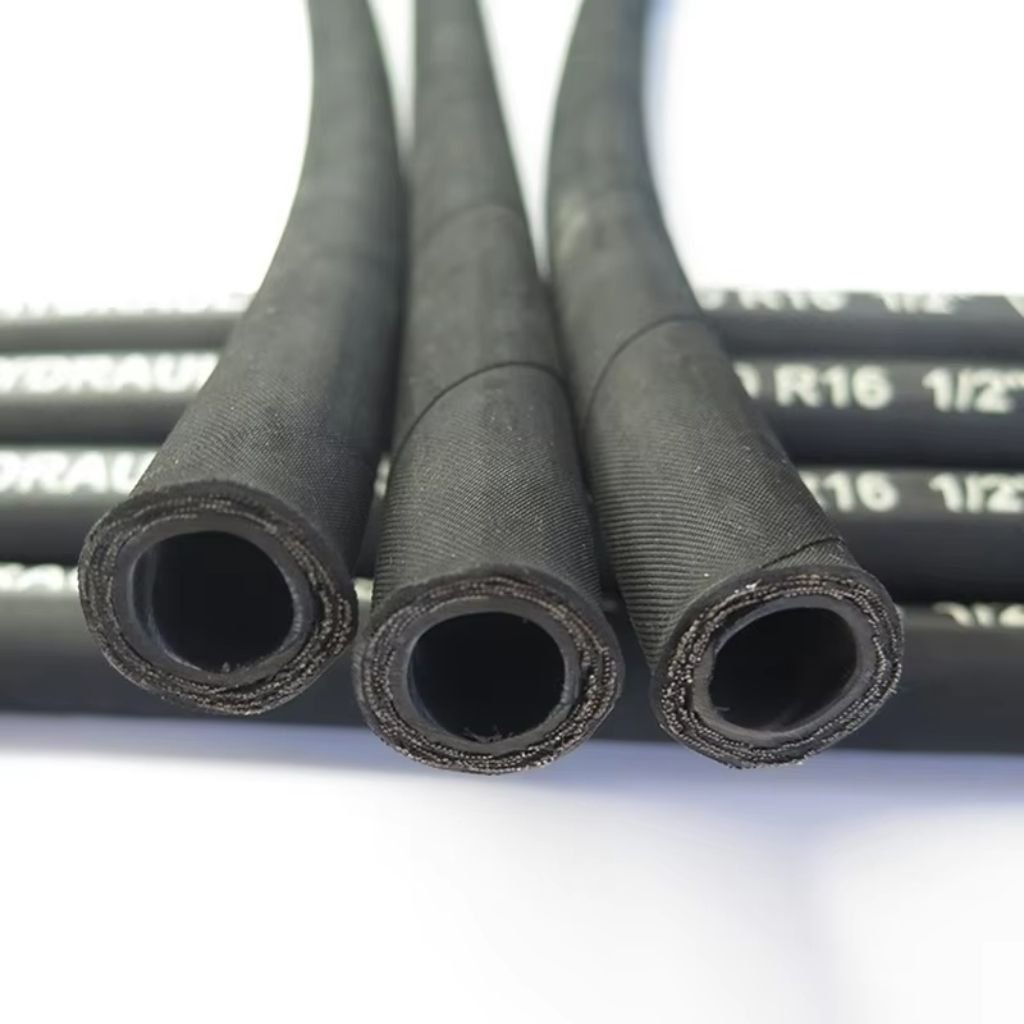

Hydraulic Rubber Hose SAE 100 R16 - Image 2

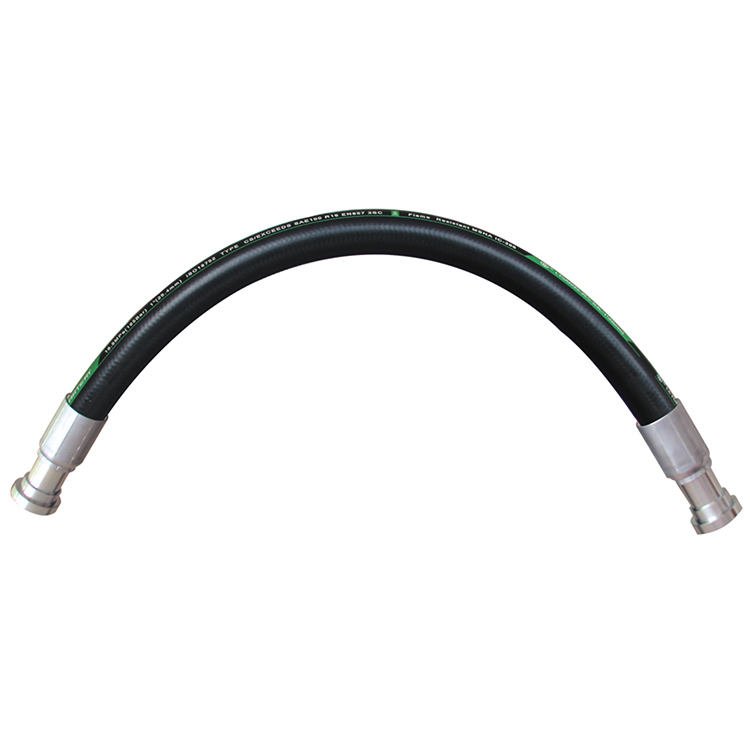

Hydraulic Rubber Hose SAE 100 R16 - Image 3

Hydraulic Rubber Hose SAE 100 R16

SAE 100 R16 steel wire reinforced hydraulic hose is suitable for use in narrow space. Because it has small bend radius and outside diameter. It consists of three parts: tube, reinforce and cover. The tube absorbs nitrile rubber because it has the best oil resistance. Thus it’s ideal for oil deliver. The reinforce is one layer or two layers of braided steel wire. It makes the hose can bear high pressure. While the cover is weather resistant synthetic rubber, making the hose resist ozone, aging, abrasion, corrosion and cut.

Structure:

INNER TUBE: oil resistant nitrile rubber

REINFORCEMENT: two layers of steel wire braided

COVER: oil and weather resistant synthetic rubber

APPLICATION: petroleum and water based hydraulic fluids

SURFACE: wrapped surface and smooth surface are available

TEMPERATURE RANGE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)

high pressure steel wire reinforced coolant radiator rubber hose technical parameters:

DN(mm)	Hose OD(mm)	W.P(PSI)	B.P(PSI)	Weight(Kg/m)	Length(m)	Minimum Bend Radius
6	13.4	3270	12840	0.21	50/100	102
8	15.0	3120	12280	0.24	50/100	114
10	17.4	2610	10280	0.33	50/100	127
13	20.6	2320	9180	0.41	50/100	178
16	23.7	1890	7420	0.45	50/100	203
19	27.7	1530	6000	0.58	50/100	241
25	35.6	1280	5020	0.88	50	305
32	43.5	920	3600	1.23	20/40	419
38	50.6	730	2860	1.51	20/40	508
51	64	580	2280	1.97	20/40	635
