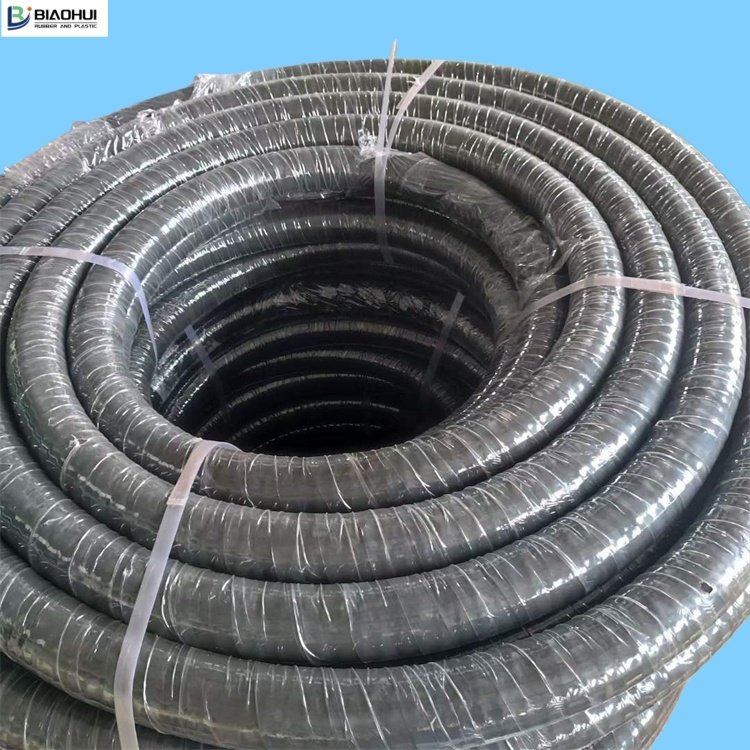

Hot Air Blower Hose
Hot air blower hose is a special hose for the bulk transport / tank truck industry only. The hose is generally made from high grade EPDM rubber to resist high temp. EPDM rubber is not suitable to transfer gasoline or oil. So it cannot serves in the petroleum transport / tank truck industry.
Construction:
Tube: Black EPDM
Reinforce: Multiple plies of polyester tire cord with wire helix
Cover: Black heat resistant EPDM rubber
Application:
Flexible and light weight hot air blower hose is to transfer hot air to tanks on dry bulk material trucks.
Temperature:
-30°F (-35°C) to +300°F (+149°C)
up to 325°F (+177°C) on an intermittent basis.
Not for steam service
Characteristic:
●EPDM tube and cover for high heat resistance.
●Temperature range up to +177°C (intermittent)
●Excellent flexibility, exceleent anti aging.
●All sizes are full vacuum
| Code |
ID |
OD | W.P | B.P | Max.L | ||||
| Inch | mm | mm | bar | psi | bar | psi | m | ft | |
| 038 | 1-1/2″ | 38 | 50 | 10 | 150 | 30 | 450 | 61 | 200 |
| 050 | 2″ | 50.8 | 64 | 10 | 150 | 30 | 450 | 61 | 200 |
| 064 | 2-1/2″ | 64 | 76 | 10 | 150 | 30 | 450 | 61 | 200 |
| 076 | 3″ | 76.2 | 91 | 10 | 150 | 30 | 450 | 61 | 200 |
| 089 | 3.5″ | 89 | 104 | 7 | 100 | 21 | 300 | 61 | 200 |
| 102 | 4″ | 102 | 120 | 5 | 75 | 15 | 225 | 61 | 200 |
| 127 | 5″ | 127 | 144 | 5 | 75 | 15 | 225 | 61 | 200 |
| 152 | 6″ | 152 | 170 | 5 | 75 | 15 | 225 | 30.5 | 100 |
Size, working pressure and wall thickness can be customized as required.
YOU MAY LIKE
Related products
-
Industrial Hoses

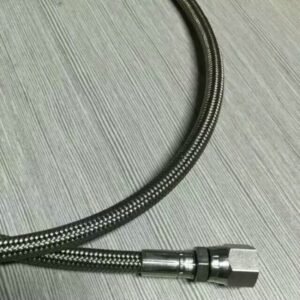

PTFE steam hose
-
Industrial Hoses

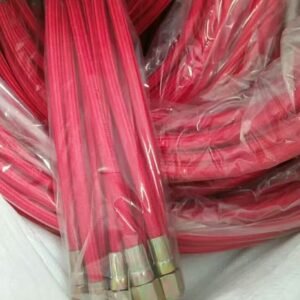

Iron steam hose
-
Chemical Hose
UHMWPE Chemical Discharge Hose
-
Industrial Hoses

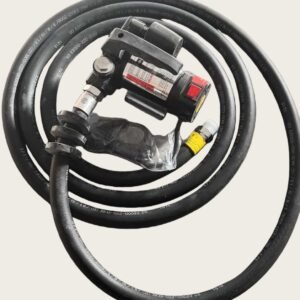

Fuel Dispenser Pump Hose
-
Industrial Hoses
Mold Cooling Water Hose
-
Industrial Hoses

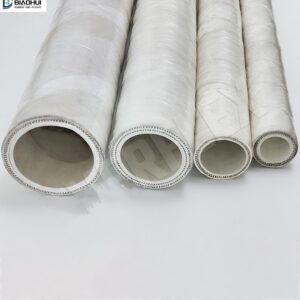

Non Conductive Furnace Door Hose
-
Industrial Hoses

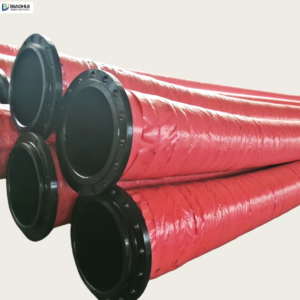

Rubber Suction Water Hose
-
