TPU Layflat Umbilical Slurry Hose Pipe

Construction:

Tube: Thermoplastic polyurethane(TPU)
Cover: Thermoplastic polyurethane(TPU)
Reinforcement: High Strength Circular Woven Polyester Or Polyamide

Accessories:

Germany type Storz,American Bolt on style,Victaulic,Camlock is Optional according to the requirement.

Packing:

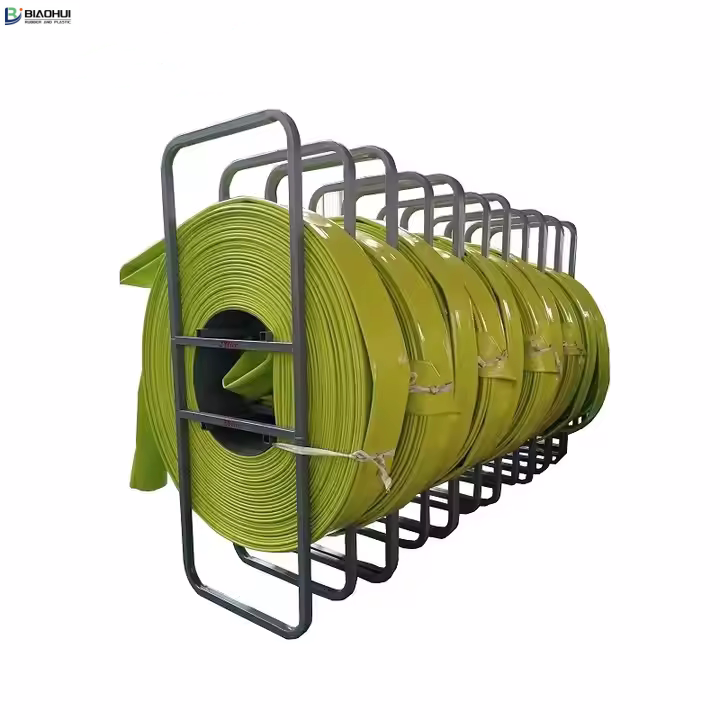

Generally the packing would be pallet or steel hose holder,Customized packing is also supported.

Application:

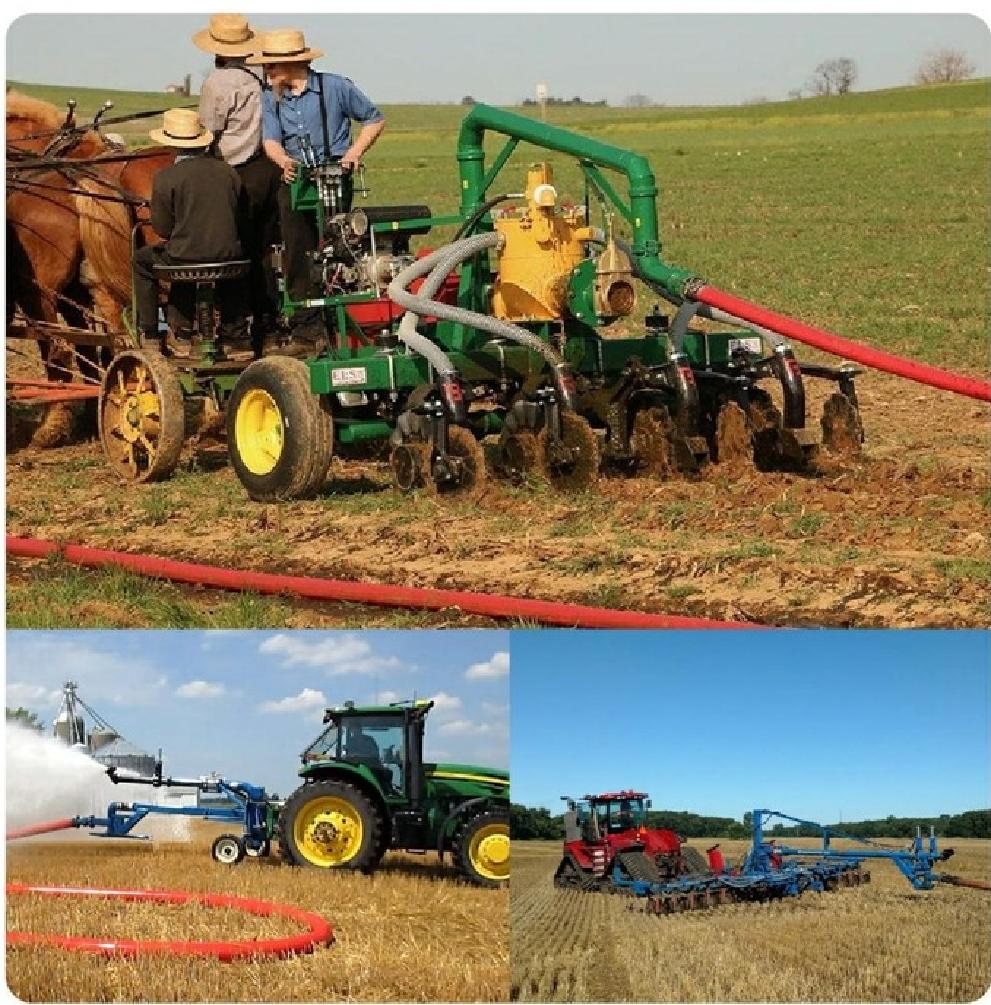

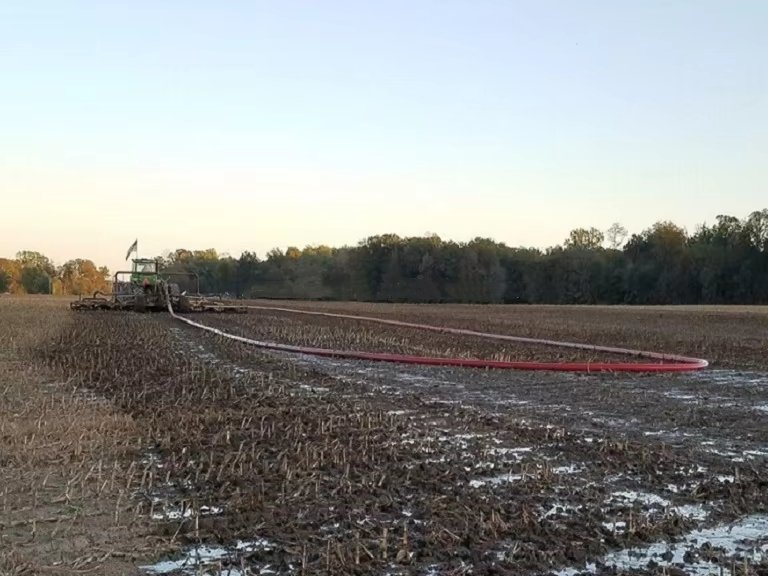

TPU drag hose is designed for distribution of slurry and manure as fertilizer,Delivery of water in self-propelled machinesfor irrigation,

As for the superior abrasion resistrance,the TPU drag hose is designed for distribution of slurry and manure as fertilizer,

delivery of water in self-propelled machines for irrigation.

Characteristic:

Extra abrasion resistance,oil resistance

Acid and alkali resistance, corrosion resistance

Cold resistance, small flow resistance

Low coil volume for easy handling

Flexible in all weather conditions from -50 to +80 deg C

Services:

Standard color black,other colors on request

Individual marking available

Binding with international couplings available on request

Other diameters on request

Standard lengths 100m and 200m

Temperature: -55ºC(-131ºF) to 80ºC(+176ºF)
