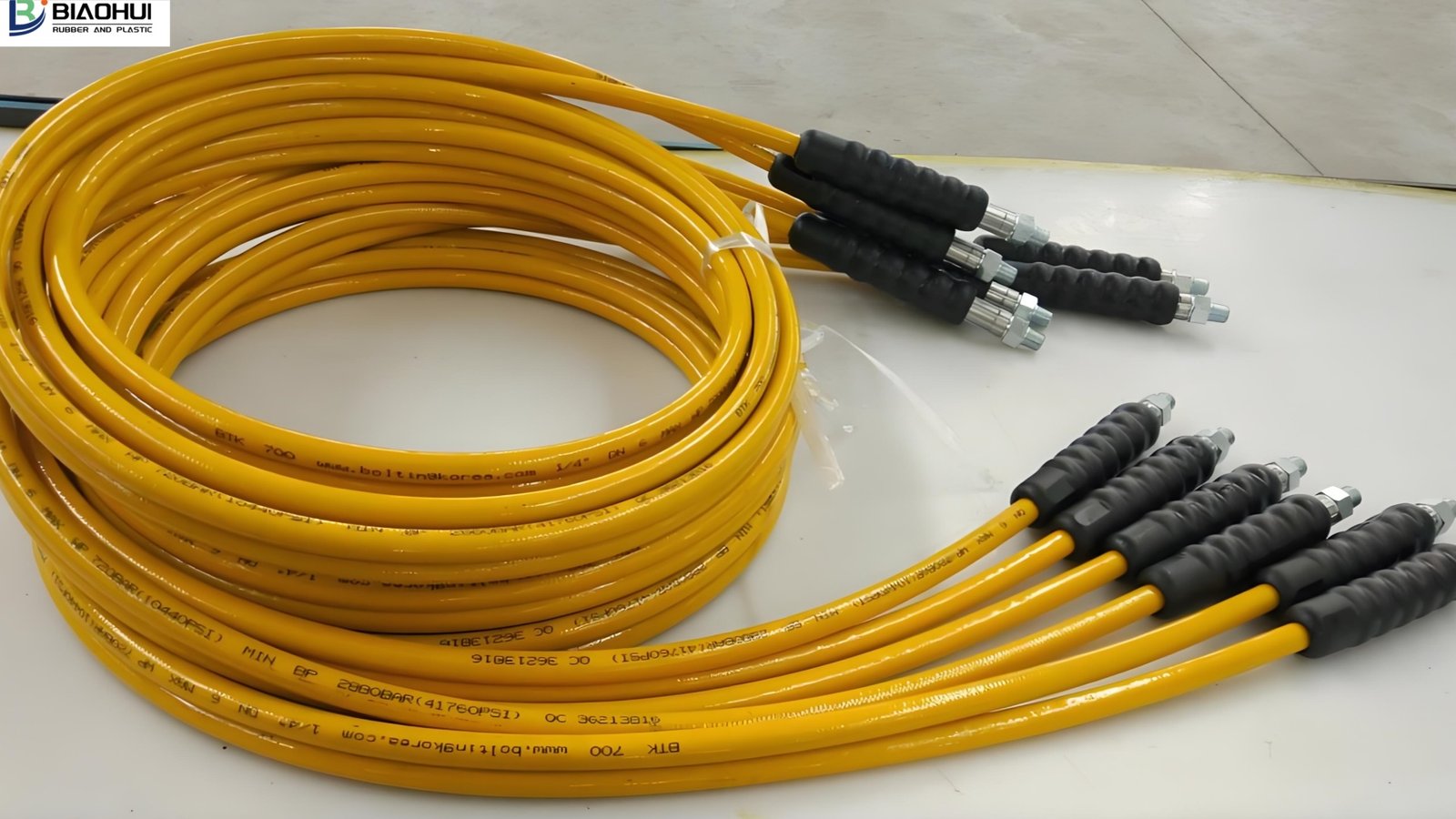

Thermoplastic Jack Hose

Application:

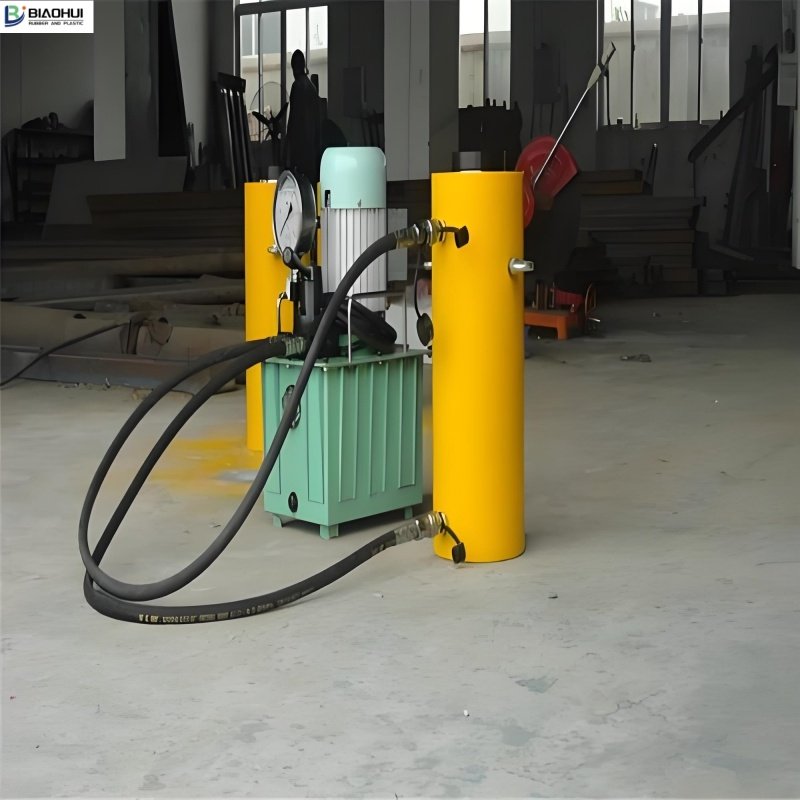

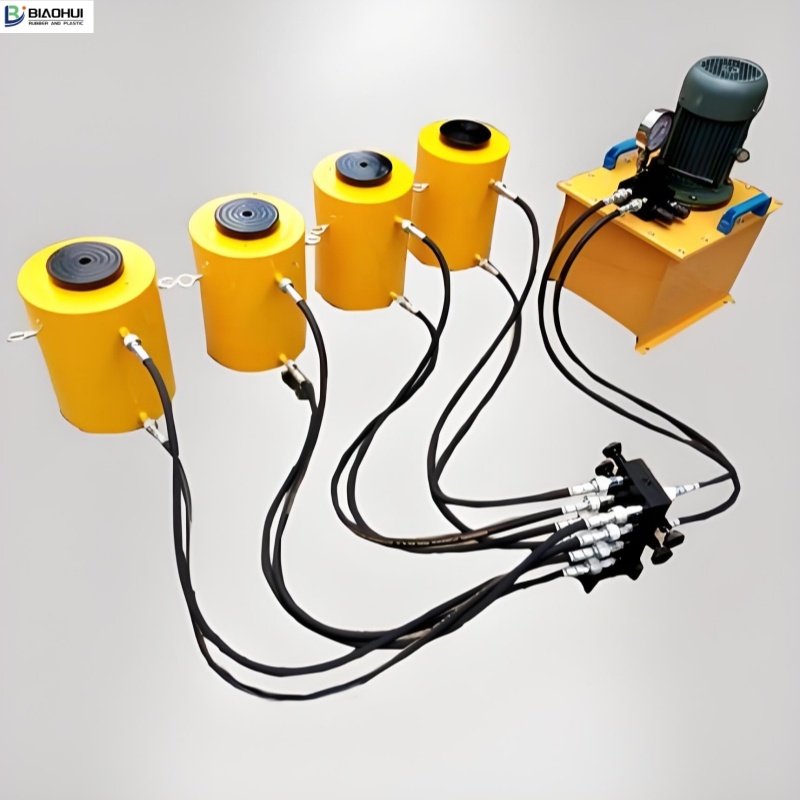

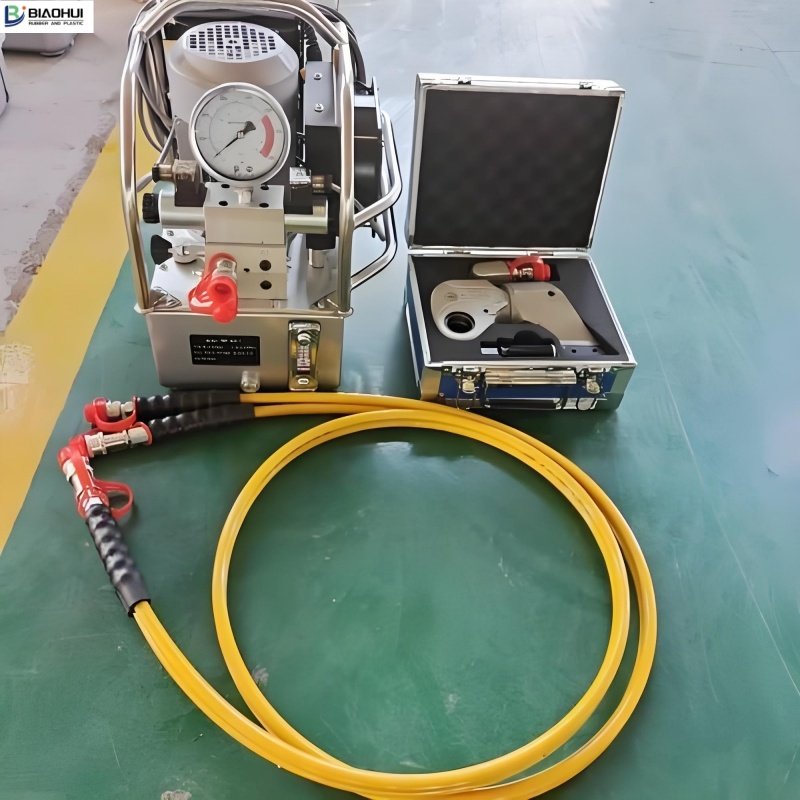

Very High-Pressure hydraulic lines 700 bar. High abrasion resistance and low change in length for use with petroleum, synthetic or water-based fluid in hydraulic oil transfer and other hydraulic tools. (rescue and safety equipment, bolt tensioning tools, jacking & re-railing equipment, earthmoving and material handling equipment)

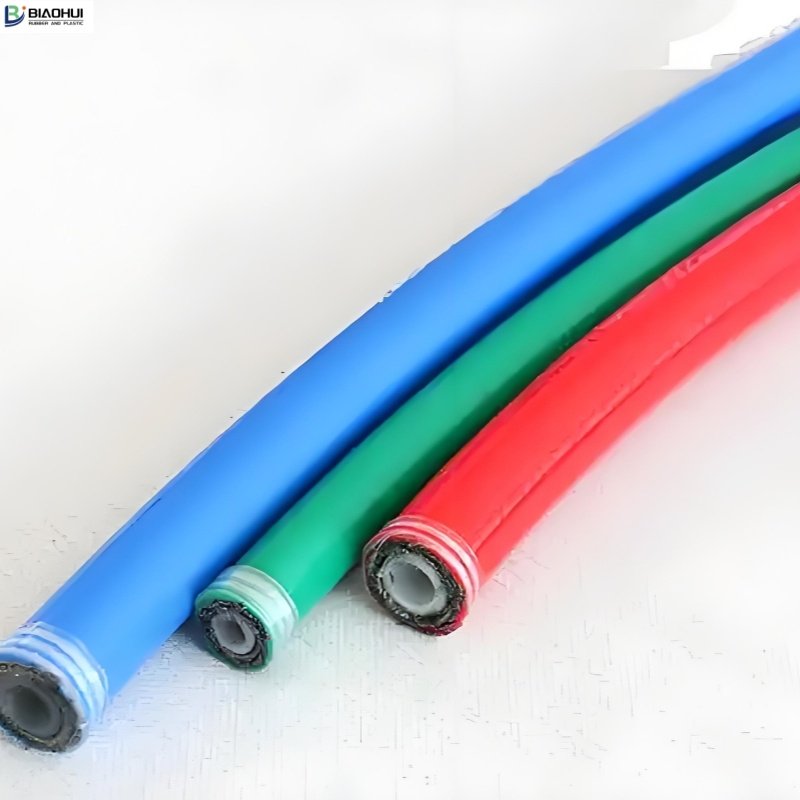

Structure:

Core: Thermoplastic Elastomer

Reinforcement: One or more braids of aramia fiber with one steel wire

Cover: Polyurethane

Temperature: -40 to 100℃

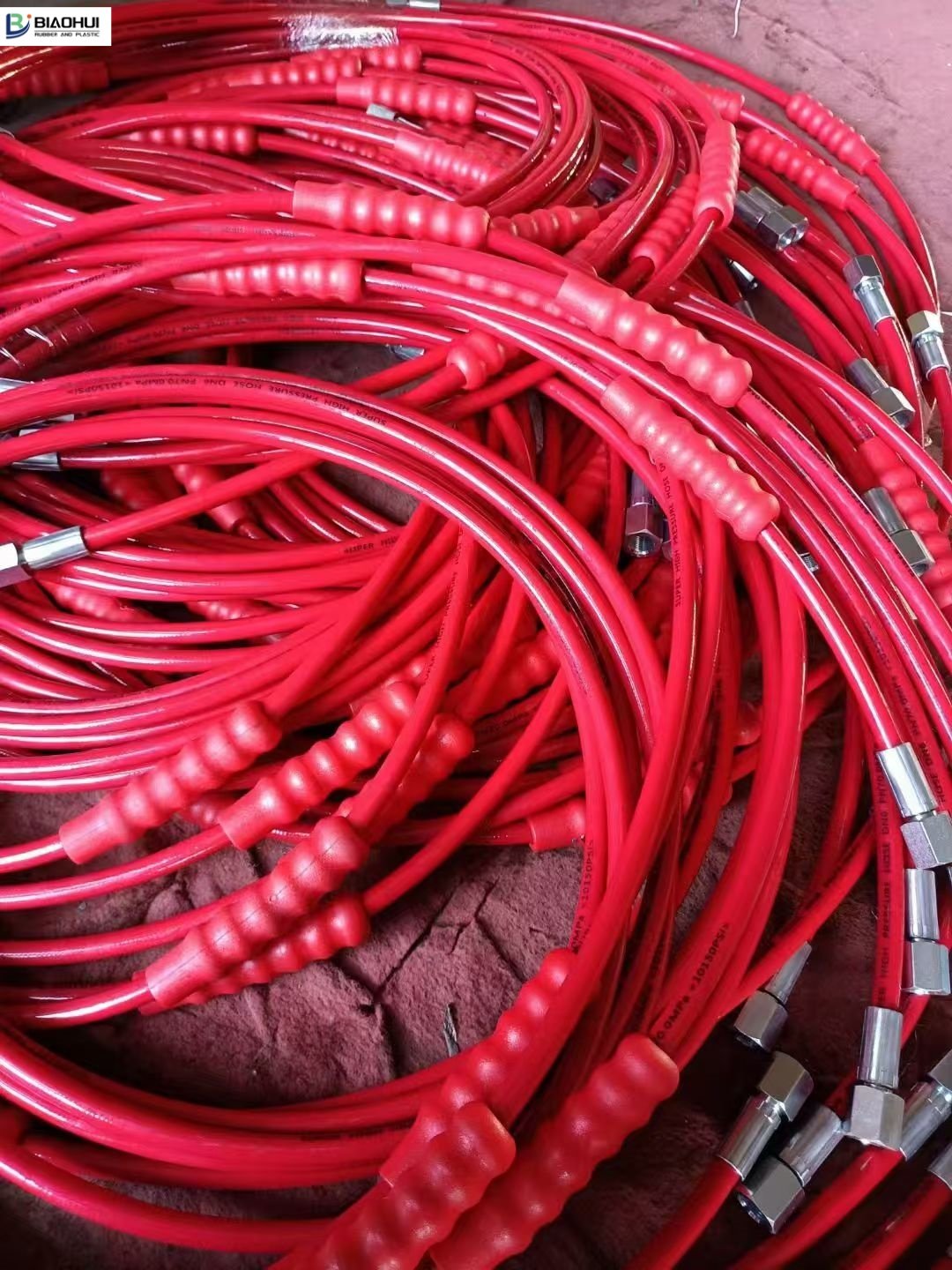

Color：Red

LENGTH: 2FT,3FT,6FT,10FT,20FT,30FT,50FT

FITTING: 1/4”NPT, 3/8”NPT

Series 43 Fittings for JK Hose : 10143-4-4, 10143-4-6, 10143-6-4, 10143-6-6
