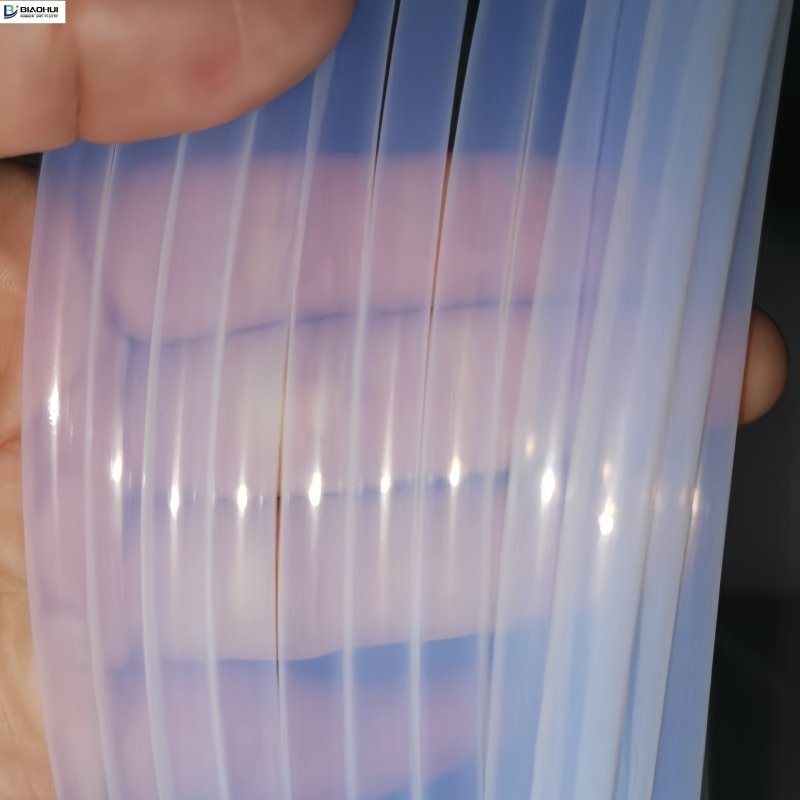

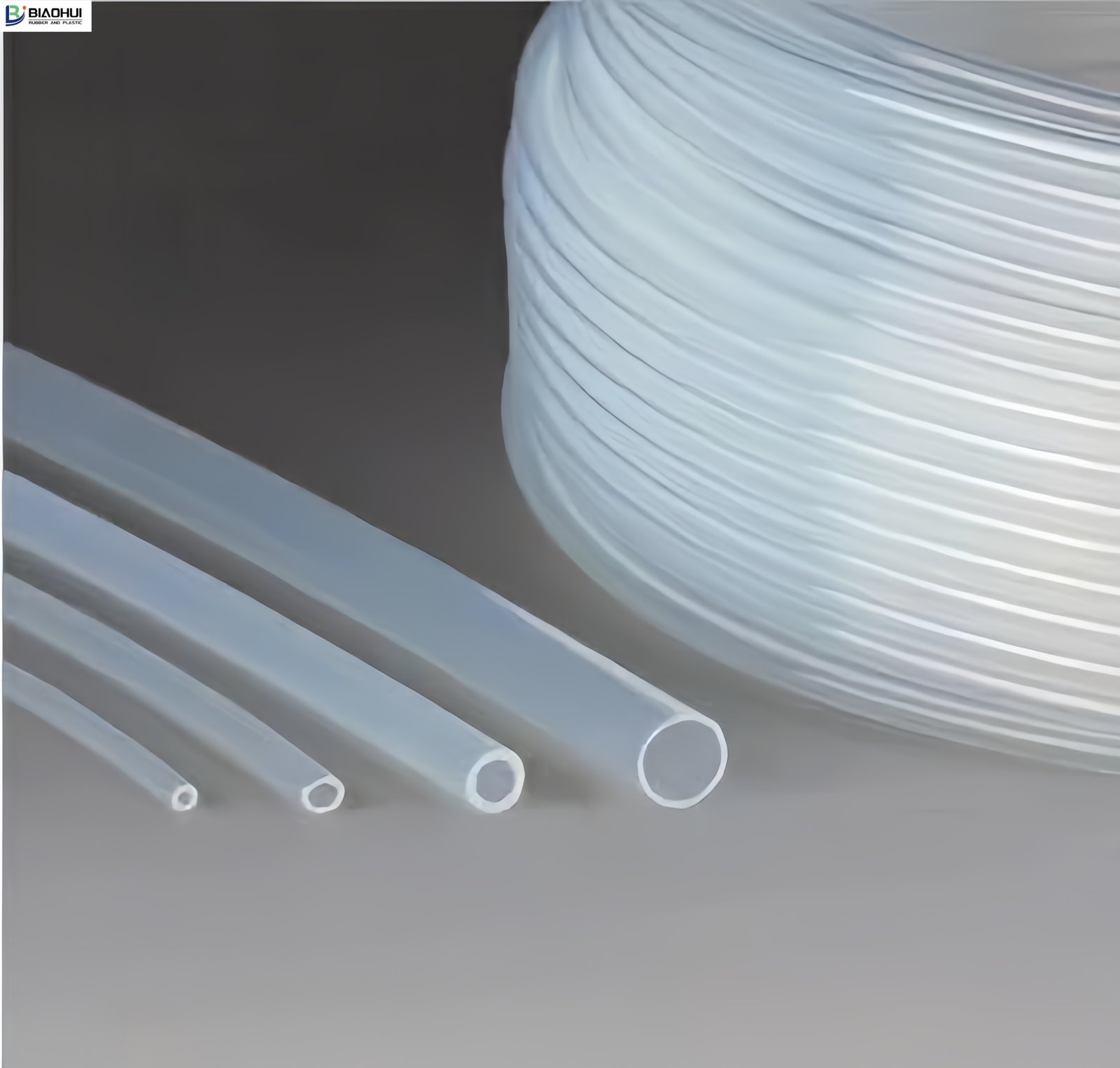

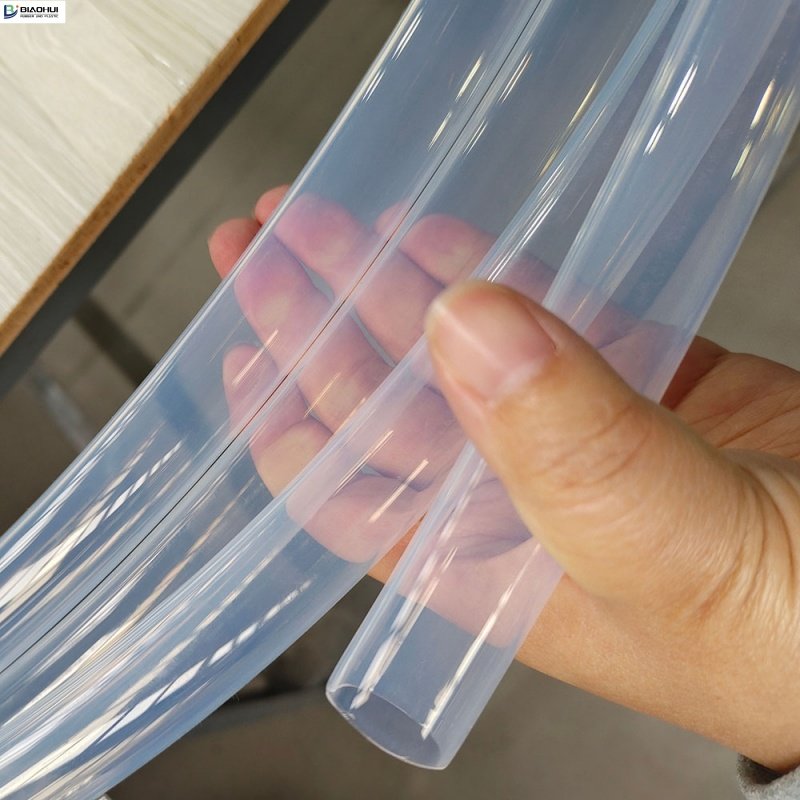

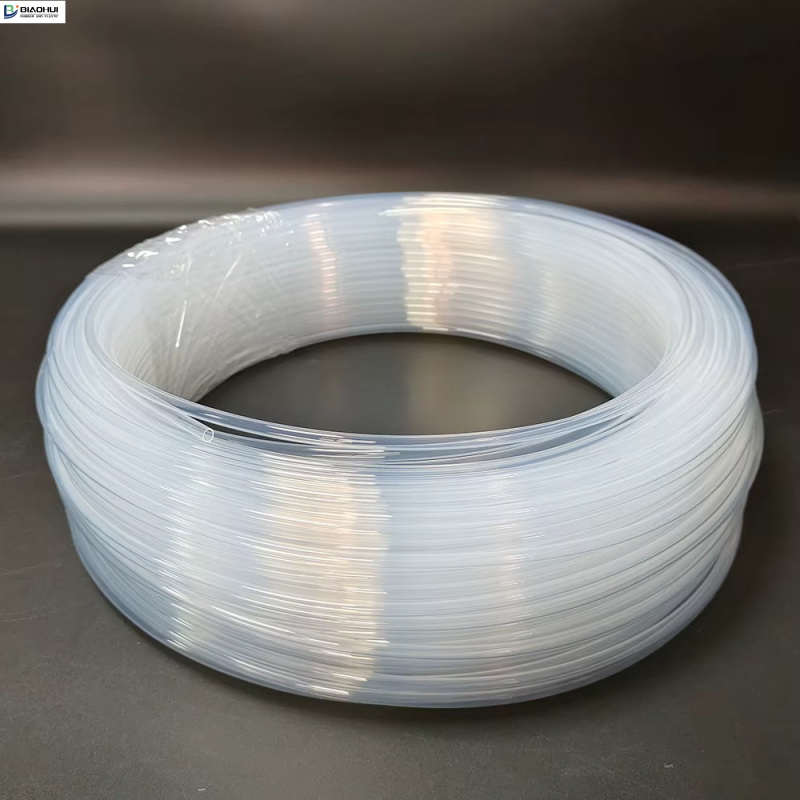

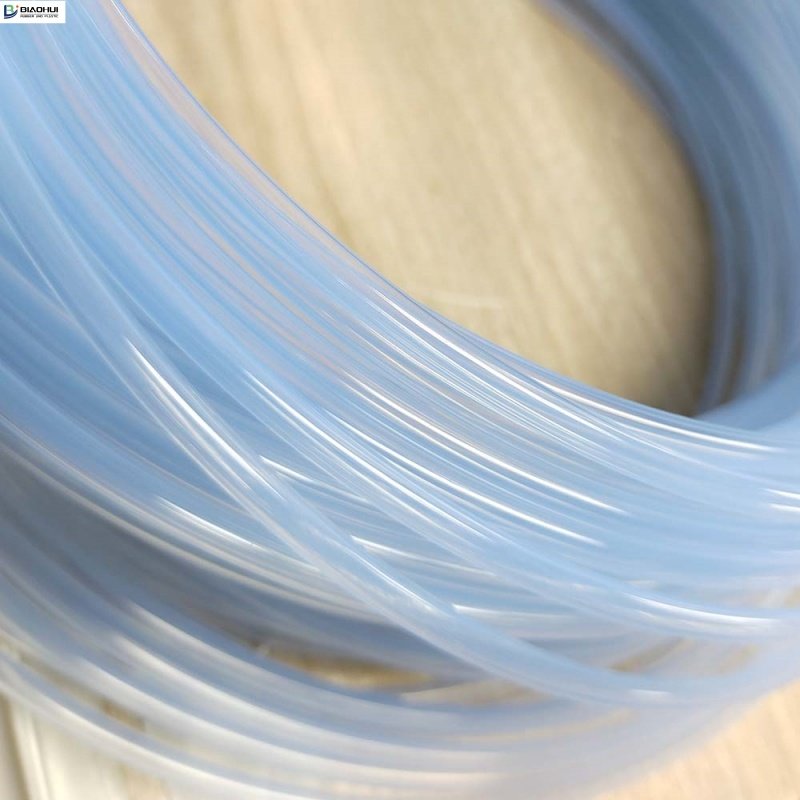

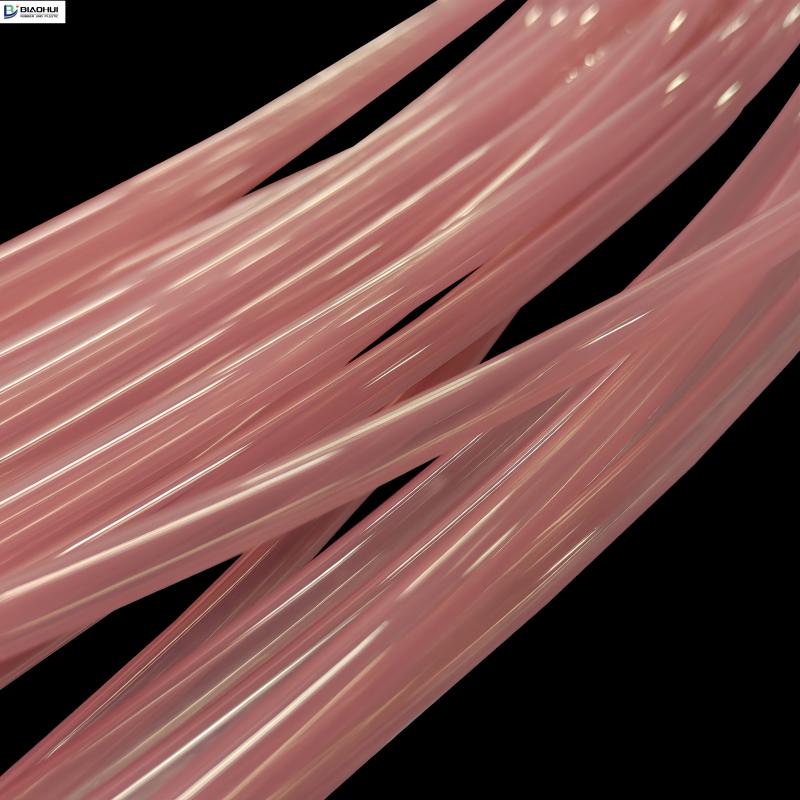

Construction: Smooth tube manufactured from PTFE/PFA/FEP material.
Applications: Tube has good electrical property, chemical resistance, weather resistance, non-stick performance and can be applied in electric, medical, vehicle, heat exchanger, pharmaceutical process.
| AWG | ID (mm) | OD (mm) | ||||
| Min | Normal | Max | S | T | L | |
| 30 | 0.25 | 0.3 | 0.38 | 0.76 | 0.76 | 0.6 |
| 28 | 0.33 | 0.38 | 0.46 | 0.84 | 0.84 | 0.68 |
| 26 | 0.41 | 0.48 | 0.53 | 0.92 | 0.92 | 0.76 |
| 24 | 0.51 | 0.56 | 0.66 | 1.16 | 1.06 | 0.86 |
| 23 | 0.58 | 0.66 | 0.74 | 1.26 | 1.1.16 | 0.96 |
| 22 | 0.66 | 0.71 | 0.81 | 1.31 | 1.21 | 1.01 |
| 21 | 0.74 | 0.81 | 0.89 | 1.41 | 1.31 | 1.11 |
| 20 | 0.81 | 0.86 | 0.97 | 1.66 | 1.46 | 1.16 |
| 19 | 0.91 | 0.96 | 1.74 | 1.76 | 1.56 | 1.26 |
| 18 | 1.01 | 1.07 | 1.17 | 1.87 | 1.67 | 1.37 |
| 17 | 1.14 | 1.19 | 1.32 | 1.99 | 1.79 | 1.49 |
| 16 | 1.29 | 1.34 | 1.47 | 2.14 | 1.94 | 1.64 |
| 15 | 1.45 | 1.5 | 1.65 | 2.3 | 2.1 | 1.8 |
| 14 | 1.62 | 1.68 | 1.83 | 2.48 | 2.28 | 2.08 |
| 13 | 1.83 | 1.93 | 2.05 | 2.73 | 2.53 | 2.33 |
| 12 | 2.05 | 2.16 | 2.31 | 2.96 | 2.77 | 2.56 |
| 11 | 2.31 | 2.41 | 2.57 | 3.21 | 3.01 | 2.81 |
| 10 | 2.59 | 2.69 | 2.84 | 3.49 | 3.29 | 3.09 |
| 9 | 2.9 | 3 | 3.15 | 4 | 3.76 | 3.4 |
| 8 | 3.06 | 3.38 | 3.53 | 4.38 | 4.14 | 3.78 |
| 7 | 3.65 | 3.76 | 3.94 | 4.76 | 4.52 | 4.16 |
| 6 | 4.11 | 4.22 | 4.41 | 5.22 | 4.98 | 4.72 |
| 5 | 4.62 | 4.72 | 4.95 | 5.72 | 5.48 | 5.22 |
| 4 | 5.18 | 5.28 | 5.53 | 6.28 | 6.04 | 5.78 |
| 3 | 5.81 | 5.94 | 6.2 | 6.94 | 6.7 | 6.44 |
| 2 | 6.55 | 6.68 | 6.93 | 7.68 | 7.44 | 7.18 |
| 1 | 7.34 | 7.46 | 7.75 | 8.46 | 8.22 | 7.96 |
| 0 | 8.26 | 8.38 | 8.69 | 9.38 | 9.14 | 8.8 |
| Normal Wall Thickness |
Proof voltage at 50 Hz | |
| At room temperature |
At maximum operation temperature |
|
| mm | V | V |
| 0.25 | 3000 | 2000 |
| 0.30 | 4000 | 3000 |
| 0.40 | 5000 | 4000 |
| 0.50 | 6000 | 5000 |
