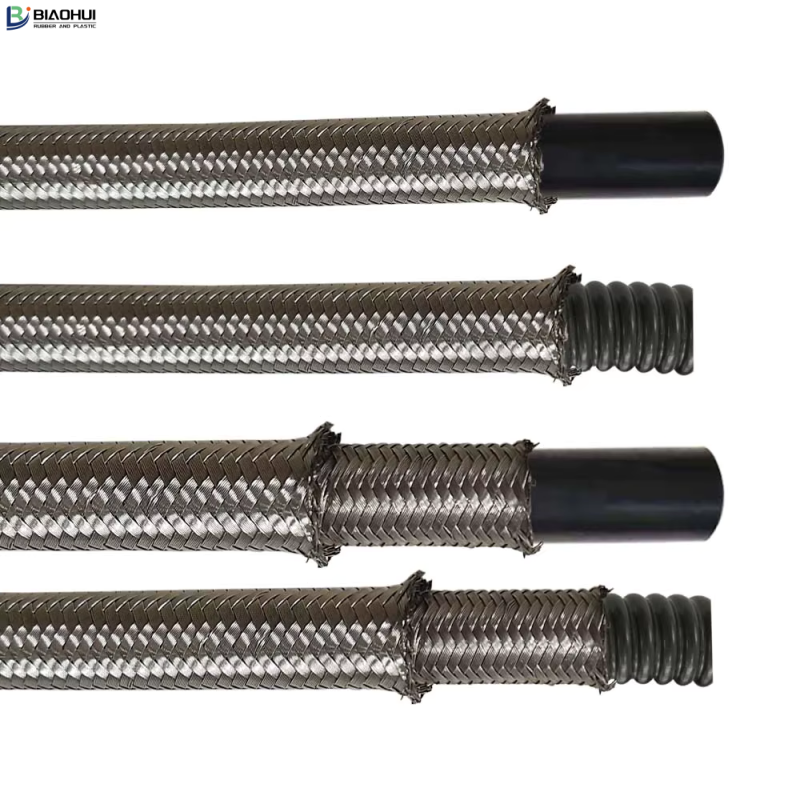

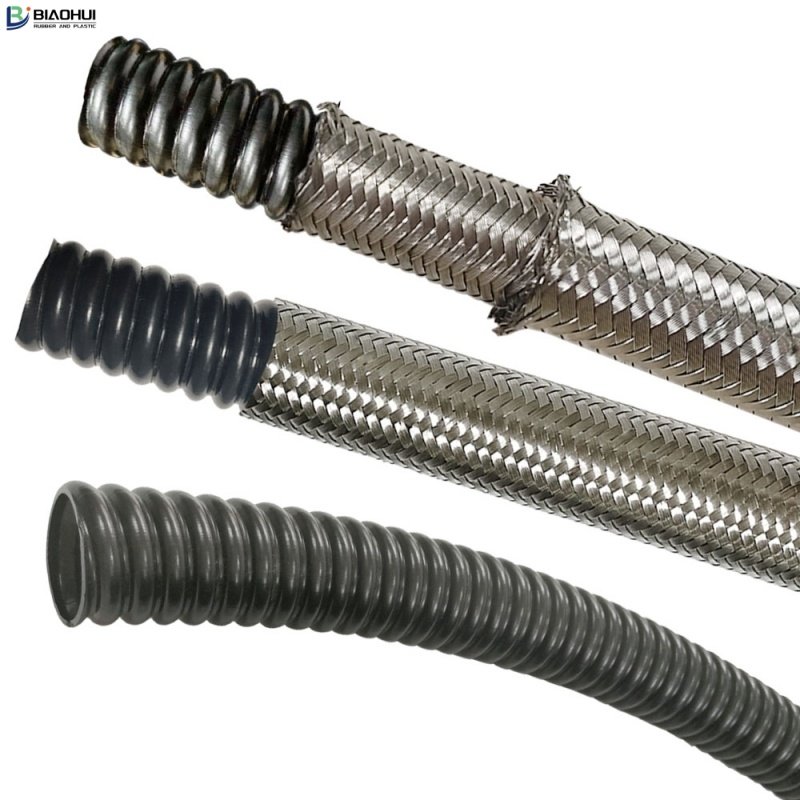

Construction: Type is manufactured from smooth anti-static PTFE tube with stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on where a closed bending radius is not required. Not recommended for steam-cold water cycling.

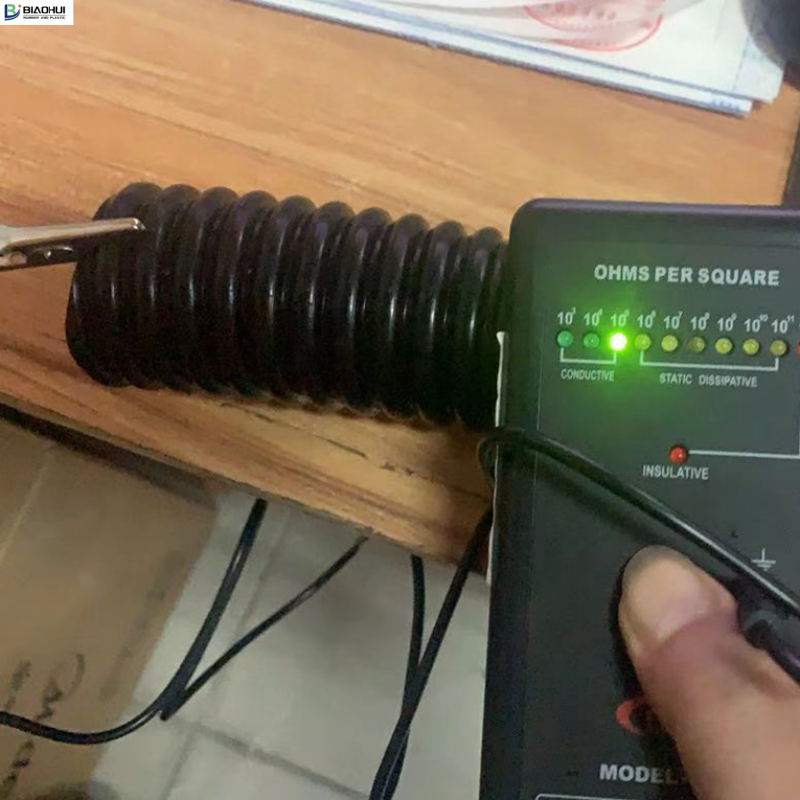

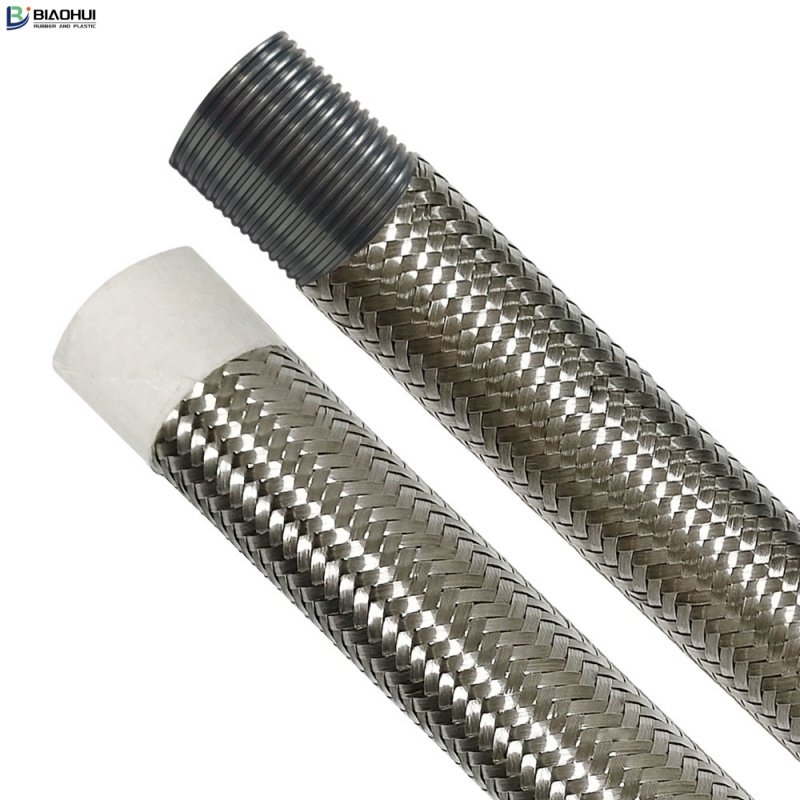

Virgin and anti-static liners are available.
This hose has the advantage of zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
| Core | Inter | Outer | Inner tube wall thickness | Bend radius | Work pressure | Burst pressure | |
| in. | mm | mm | mm | mm | bar | bar | |
| 003 | 1/8″ | 3.2 | 6.5 | 1.00 | 60 | 250 | 750 |
| 005 | 3/16″ | 4.8 | 7.7 | 0.75 | 60 | 200 | 600 |
| 006 | 1/4″ | 6.4 | 9.3 | 0.65 | 75 | 185 | 555 |
| 008 | 5/16″ | 7.9 | 11.3 | 0.75 | 100 | 180 | 540 |
| 010 | 3/8″ | 9.5 | 13.1 | 0.75 | 125 | 170 | 510 |
| 013 | 1/2″ | 12.7 | 16.5 | 0.75 | 140 | 130 | 390 |
| 016 | 5/8″ | 15.9 | 19.5 | 0.90 | 160 | 100 | 300 |
| 019 | 3/4″ | 19 | 23 | 0.90 | 200 | 75 | 225 |
| 022 | 7/8″ | 22 | 26.5 | 1.00 | 300 | 65 | 195 |
| 025 | 1″ | 25.4 | 29.8 | 1.05 | 400 | 65 | 195 |
YOU MAY LIKE
Related products
-
PTFE Hose
PTFE Corrugated Tube
-
PTFE Hose

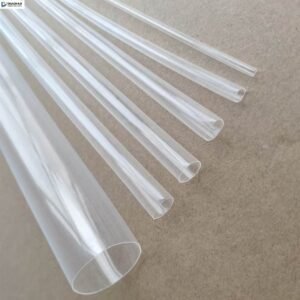

Smooth FEP Tube
