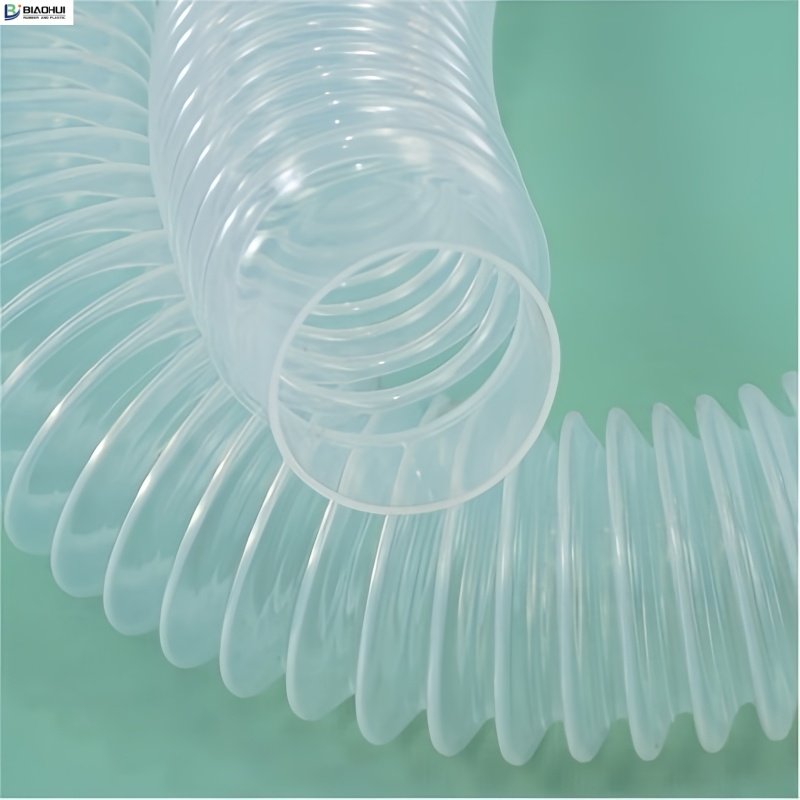

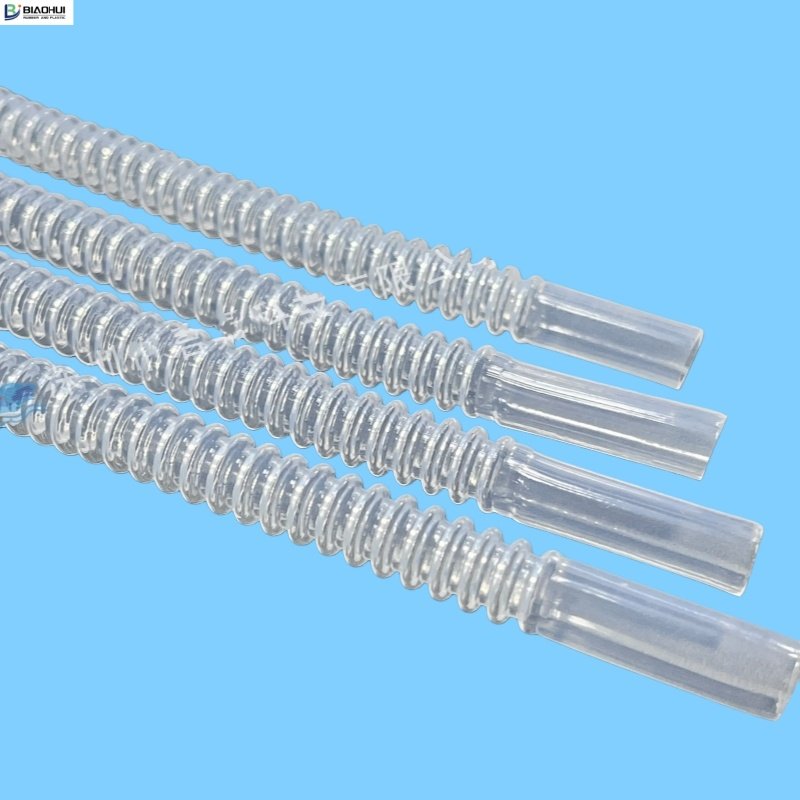

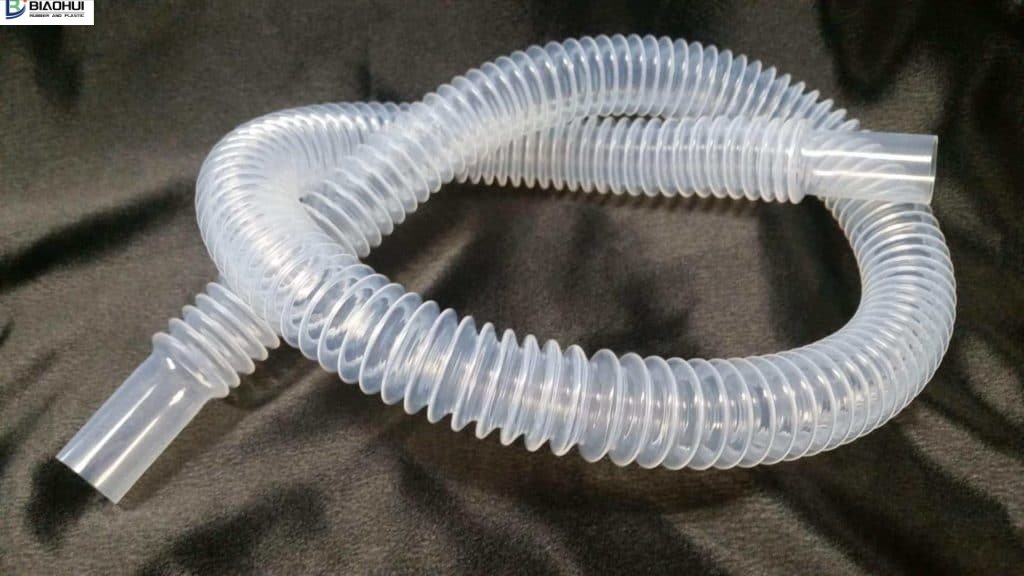

Structure: It is an ultra clean PFA corrugated hose with smooth ends and a tower shaped ripple in the middle
Working temperature: -60 ° C~+150 ° C
Application scope: High demand semiconductors, photovoltaics, aerospace, LCD manufacturing, pharmaceuticals, chemicals, etc
Features:
1. High cleanliness, chemical resistance, and temperature resistance
2. Ultra thin tube body, high transparency, visibility

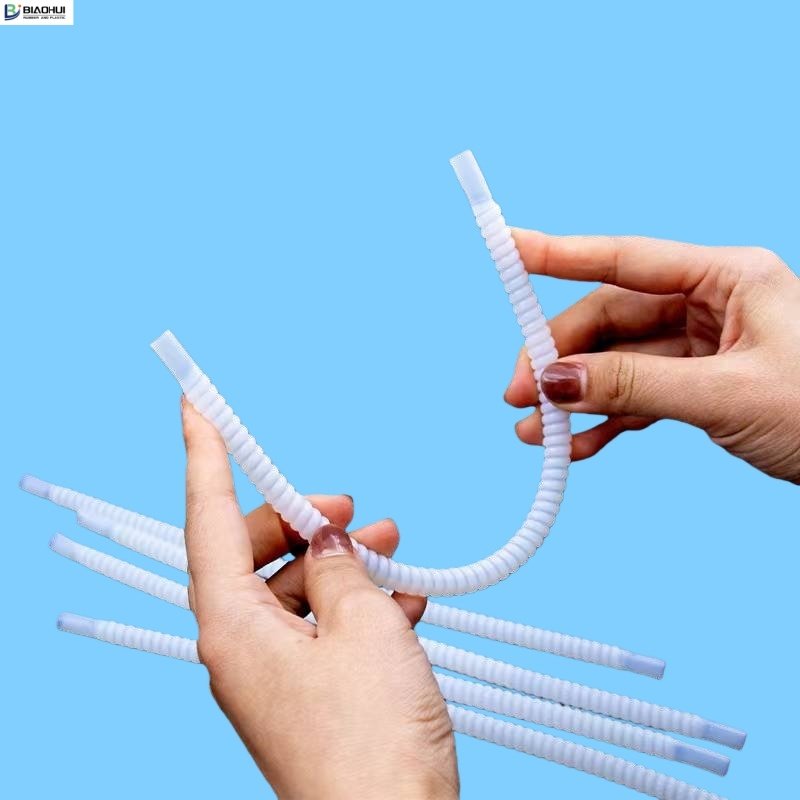

3. Tower shaped ripples, super strong bending performance, fearless of bending
4. Smooth ends for easy installation
5. Anti adhesive, non absorbent, wear-resistant
6. High insulation resistance, breakdown, and dielectric properties
| Cord | Diameter | Straight section inner and outer diameters | Straight section length | Wall thickness | The longest length |
| inch | mm | mm | mm | mm | |
| 04 | 1/4″ | 5.25*6.35 | 30-50 | 0.55 | 1200 |
| 04B | 1/4″ | 6.0*6.82 | 30-50 | 0.41 | |
| 06 | 3/8″ | 9.2*10.3 | 30-50 | 0.55 | 1500 |
| 08 | 1/2″ | 11.1*12.7 | 30-50 | 0.80 | |
| 12 | 3/4″ | 17.4*19.0 | 30-50 | 0.80 | |
| 16 | 1″ | 23.8*25.4 | 30-50 | 0.80 | |
| 16B | 1″ | 24.8*26.4 | 30-50 | 0.93 |
If you need other customized calibers or lengths, please contact our sales staff。
