Silicone Reducer Hose
Silicone Reducer Hose - Image 2
Silicone Reducer Hose - Image 3
Silicone Reducer Hose - Image 4
Silicone Reducer Hose - Image 5
Silicone Reducer Hose - Image 6

Silicone Reducer Hose

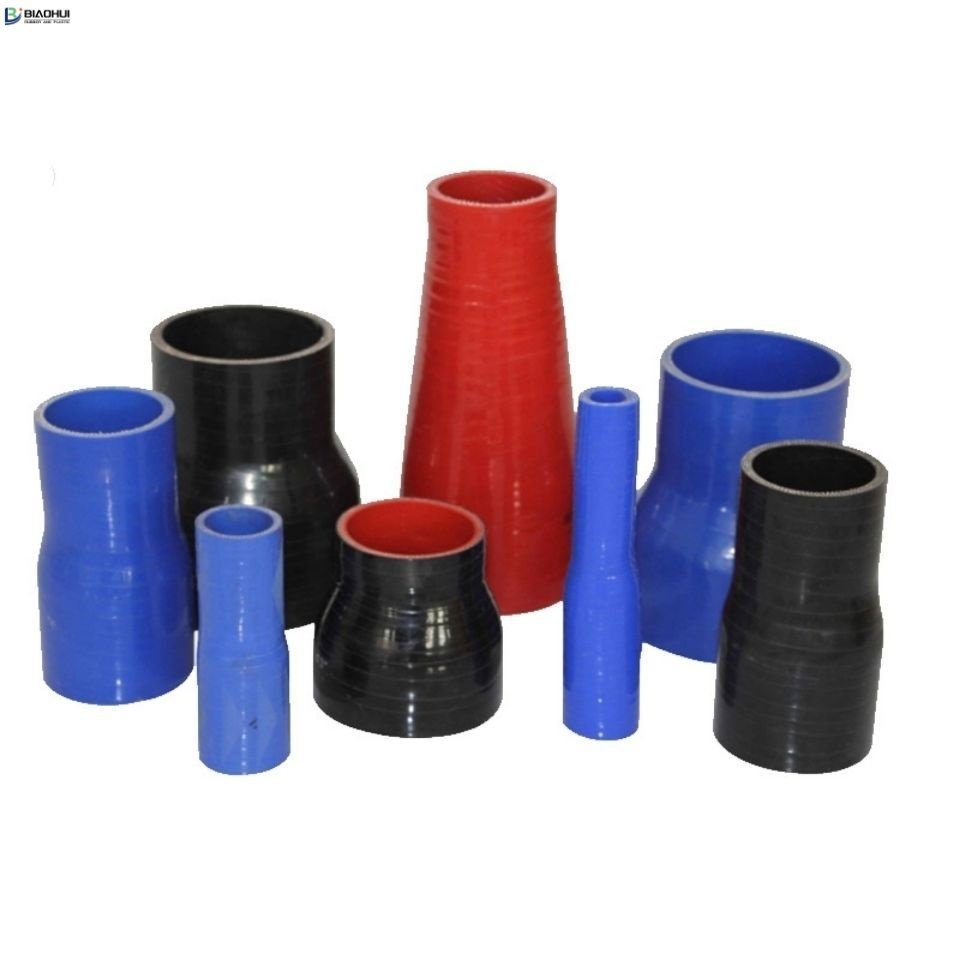

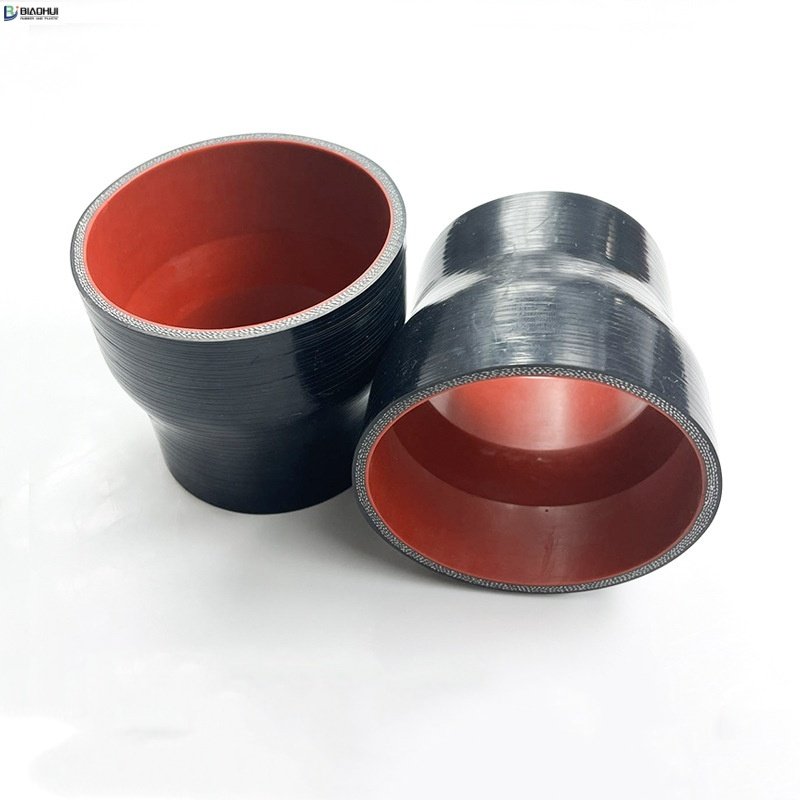

Silicone Reducer Hose absorbs 4-ply high temp material. And it exceeds SAEJ20 Standard. HPS silicon reducer coupler hose serves in vehicles such as high level racing car, truck and bus. It is also a good choice for marine, engine and off highway vehicles. It’s also ideal for turbo diesel and general industry.

Send Inquiry
Silicone Reducer Hose

Construction:
Inner:100% High quality silicone Cover:silicone
Reinforcement:4ply Polyester/Aramid fabric
Color:Black/Red/Blue/Green/Yellow

Application:
Heating and Cooling Systems, CAC Charge-Air-Cooler (Hot & Cold side) , Turbo Charger Systems & Custom Compressor, Intercooler or Intake & Inlet Piping for
turbo/Superchargers. etc.

Characteristic:
1.Good electrical insulating performance.
2.No smell, no toxic, eco-friendly.
3.High temperature resistance,aging,operative temperature: – 40 ° C ~ 220 ° C
4.Having physical laziness,Good air permeability
5.We offer OEM/ODM, We can 3D design, produce according to your drawings

Temperature:-40ºC (-104 ºF )to +220ºC (+428 ºF )

SILICONE STRAIGHT REDUCER

Item Code

I.D.

Layer

Thickness (mm)

Length

Item Code

I.D.

Layer

Thickness (mm)

Length

mm

inch

mm

inch

SR19-16

19-16

3/4″-5/8″

3

4

76mm

SR45-32

45-32

1 3/4″-1 1/4″

4

5

76mm

SR22-19

22-19

7/8″-3/4″

3

4

76mm

SR45-35

45-35

1 3/4″-1 3/8″

4

5

76mm

SR25-16

25-16

1″-5/8″

3

4

76mm

SR45-38

45-38

1 3/4″-1 1/2″

4

5

76mm

SR25-19

25-19

1″-3/4″

3

4

76mm

SR48-29

48-29

1 7/8″-1 1/8″

4

5

76mm

SR25-22

25-22

1″-7/8″

3

4

76mm

SR48-35

48-35

1 7/8″-1 3/8″

4

5

76mm

SR27-24

27-24

1 1/15″-15/16″

3

4

76mm

SR48-38

48-38

1 7/8″-1 1/2″

4

5

76mm

SR28-22

28-22

1 1/8″-7/8″

3

4

76mm

SR48-41

48-41

1 7/8″-1 5/8″

4

5

76mm

SR28-25

28-25

1 1/8″-1″

3

4

76mm

SR48-44

48-44

1 7/8″-1 18/25″

4

5

76mm

SR30-25

30-25

1 3/16″-1″

3

4

76mm

SR49-32

49-32

1 23/25″-1 1/4″

4

5

76mm

SR30-28

30-28

1 3/16″-1 1/8″

3

4

76mm

SR50-41

50-41

1 24/25″-1 5/8″

4

5

76mm

SR32-19

32-19

1 1/4″-3/4″

3

4

76mm

SR51-25

51-25

2″-1″

4

5

76mm

SP32-25

32-25

1 1/4″-1″

3

4

76mm

SR51-29

51-29

2″-1 1/8″

4

5

76mm

SR32-28

32-28

1 1/4″-1 1/8″

3

4

76mm

SR51-32

51-32

2″-1 1/4″

4

5

76mm

SR35-25

35-25

1 3/8″-1″

3

4

76mm

SR51-35

51-35

2″-1 3/8″

4

5

76mm

SR35-28

35-28

1 3/8″-1 1/8″

3

4

76mm

SR51-38

51-38

2″-1 1/2″

4

5

76mm

SR35-32

35-32

1 3/8″-1 1/4″

3

4

76mm

SR51-44

51-44

2″-1 18/25″

4

5

76mm

SR38-19

38-19

1 1/2″-3/4″

3

4

76mm

SR51-48

51-48

2″-1 7/8″

4

5

76mm

SR38-22

38-22

1 1/2″-7/8″

3

4

76mm

SR54-51

54-51

2 1/8″-2″

4

5

76mm

SR38-25

38-25

1 1/2″-1″

3

4

76mm

SR55-50

55-50

2 4/25″-1 24/25″

4

5

76mm

SR38-29

38-29

1 1/2″-1 1/8″

3

4

76mm

SR57-45

57-45

2 1/4″-1 3/4″

4

5

76mm

SR38-32

38-32

1 1/2″-1 1/4″

3

4

76mm

SR57-51

57-51

2 1/4″-2″

4

5

76mm

SR38-35

38-35

1 1/2″-1 3/8″

3

4

76mm

SR60-51

60-51

2 3/8″-2″

4

5

76mm

SR41-25

41-25

1 5/8″-1″

4

5

76mm

SR60-55

60-55

2 3/8″-2 4/25″

4

5

76mm

SR41-29

41-29

1 5/8″-1 1/8″

4

5

76mm

SR62-58

62-58

2 11/25″-2 7/25″

4

5

76mm

SR41-32

41-32

1 5/8″-1 1/4″

4

5

76mm

SR63-51

63-51

2 1/2″-2″

4

5

76mm

SR41-38

41-38

1 5/8″-1 1/2″

4

5

76mm

SR63-54

63-54

2 1/2″-2 1/8″

4

5

76mm

SR44-25

44-25

1 18/25″-1″

4

5

76mm

SR63-57

63-57

2 1/2″-2 1/4″

4

5

76mm

SR44-29

44-29

1 18/25″-1 1/8″

4

5

76mm

SR64-44

64-44

2 13/25″-1 18/25″

4

5

76mm

SR44-41

44-41

1 18/25″-1 5/8″

4

5

76mm

SR64-60

64-60

2 13/25″-2 3/8″

4

5

76mm

SR65-60

65-60

2 9/16″-2 3/8″

4

5

76mm

SR89-70

89-70

3 1/2″-2 3/4″

4

5

76mm

SR66-61

66-61

2 3/5″-2 2/5″

4

5

76mm

SR89-76

89-76

3 1/2″-3″

4

5

76mm

SR70-51

70-51

2 3/4″-2″

4

5

76mm

SR89-80

89-80

3 1/2″-3 1/8″

4

5

76mm

SR70-57

70-57

2 3/4″-2 1/4″

4

5

76mm

SR89-83

89-83

3 1/2″-3 1/4″

4

5

76mm

SR70-60

70-60

2 3/4″-2 3/8″

4

5

76mm

SR90-60

90-60

3 11/20″-2 3/8″

4

5

76mm

SR70-63

70-63

2 3/4″-2 1/2″

4

5

76mm

SR90-70

90-70

3 11/20″-2 3/4″

4

5

76mm

SR71-68

71-68

2 4/5″-2 17/25″

4

5

76mm

SR90-80

90-80

3 11/20″-3 1/8″

4

5

76mm

SR76-51

76-51

3″–2″

4

5

76mm

SR92-90

92-90

3 16/25″-3 11/20″

4

5

76mm

SR76-57

76-57

3″-2 1/4″

4

5

76mm

SR95-89

95-89

3 17/25″-3 1/2″

4

5

76mm

SR76-60

76-60

3″-2 3/8″

4

5

76mm

SR98-80

98-80

3 21/25″-3 1/8″

4

5

76mm

SR76-63

76-63

3″-2 1/2″

4

5

76mm

SR100-70

100-70

3 9/10″-2 3/4″

4

5

76mm

SR76-68

76-68

3″-2 17/25″

4

5

76mm

SR100-76

100-76

3 9/10″-3″

4

5

76mm

SR76-70

76-70

3″-2 3/4″

4

5

76mm

SR100-80

100-80

3 9/10″-3 1/8″

4

5

76mm

SR76-73

76-73

3″-2 22/25″

4

5

76mm

SR100-83

100-83

3 9/10″-3 1/4″

4

5

76mm

SR77-70

77-70

3 1/25″-2 3/4″

4

5

76mm

SR100-90

100-90

3 9/10″-3 11/20″

4

5

76mm
45/90/135 DEGREE ELBOW REDUCER SILICONE HOSE

Item Code

I.D.

Layer

Thickness (mm)

Length(mm)

Item Code

I.D.

Layer

Thickness (mm)

Length(mm)

mm

inch

mm

inch

ER25-16

25-16

1-5/8

3

4

150*150

ER76-57

76-57

3-2 1/4

4

5

150*150

ER25-19

25-19

1-3/4

3

4

150*150

ER/76-60

76-60

3-2 3/8

4

5

150*150

ER32-25

32-25

1 1/4-1

3

4

150*150

ER76-63

76-63

3-2 1/2

4

5

150*150

ER35-25

35-25

1 3/8-1

3

4

150*150

ER76-67

76-67

3-2 16/25

4

5

150*150
ER35-32 35-32 13/8-1 1/4 3 4 150*150 ER76-70 76-70 3-23/4 4 5 150*150
ER38-25 38-25 1 1/2-1 3 4 150*150 ER80-60 80-60 31/8-23/8 4 5 150*150
ER38-32 38-32 1 1/2-1 1/4 3 4 150*150 ER80-64 80-64 31/8-213/25 4 5 150*150
ER38-35 38-35 1 1/2-13/8 3 4 150*150 ER80-70 80-70 31/8-23/4 4 5 150*150
ER45-38 45-38 13/4-1 1/2 4 5 150*150 ER80-76 80-76 31/8-3 4 5 150*150
ER51-38 51-38 2-1 1/2 4 5 150*150 ER83-64 83-64 31/4-213/25 4 5 150*150
ER51-42 51 -42 2-1 16/25 4 5 150*150 ER89-60 89-60 31/2-23/8 4 5 150*150
ER51-45 51-45 2-1 19/25 4 5 150*150 ER89-76 89-76 31/2-3 4 5 150*150
ER57-51 57-51 21/4-2 4 5 150*150 ER89-83 89-83 31/2-31/4 4 5 150*150
ER60-51 60-51 23/8-2 4 5 150*150 ER90-65 90-65 311/20-29/16 4 5 150*150
ER62-48 62-48 2 4/9- 1 7/8 4 5 150*150 ER90-70 90-70 311/20-23/4 4 5 150*150
ER63-51 63-51 21/2-2 4 5 150*150 ER90-76 90-76 311/20-3 4 5 150*150
ER63-57 63-57 21/2-21/4 4 5 150*150 ER90-80 90-80 311/20-31/8 4 5 150*150
ER64-45 64-45 213/25-1 19/25 4 5 150*150 ER100-83 100-83 39/10-31/4 4 5 150*150
ER64-51 64-51 213/25-2 4 5 150*150 ER102-63 102-63 4-21/2 4 5 150*150
ER65-58 65-58 29/16-2 7/25 4 5 150*150 ER102-76 102-76 4-3 4 5 150*150
ER70-51 70-51 23/4-2 4 5 150*150 ER102-89 102-89 4-31/2 4 5 150*150
ER70-57 70-57 23/4-21/4 4 5 150*150 ER114-89 114-89 412/25- 31/2 4 5 150*150
ER70-60 70-60 23/4-23/8 4 5 150*150 ER114-102 114-102 412/25- 4 4 5 150*150
ER70-63 70-63 23/4-21/2 4 5 150*150 ER127-102 127-102 5- 4 4 5 150*150
ER76-51 76-51 3–2 4 5 150*150
