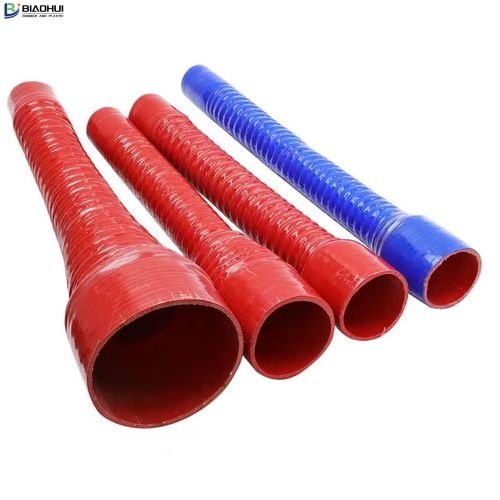

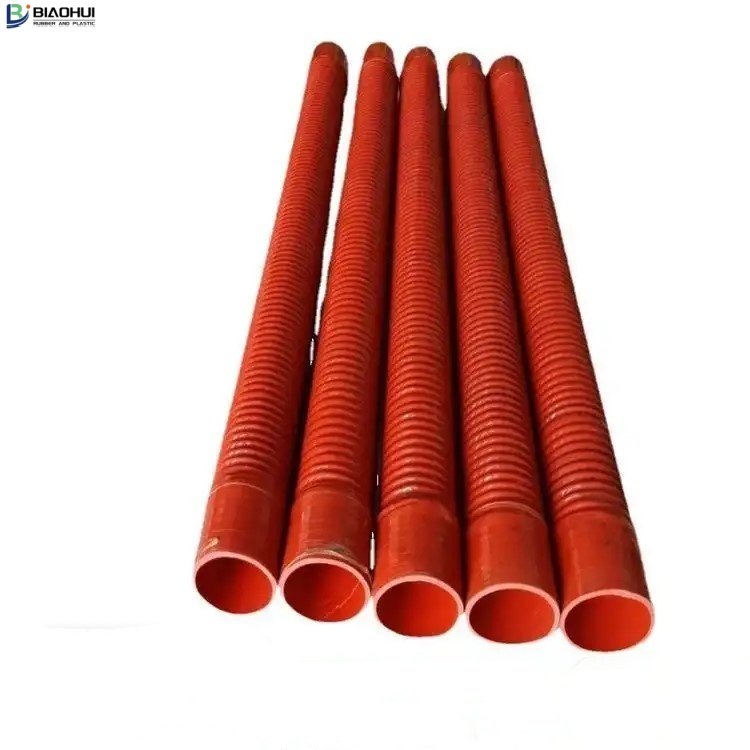

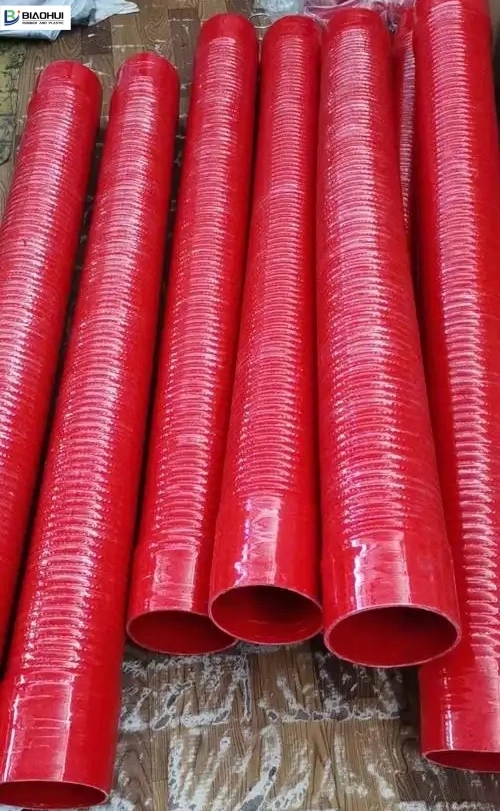

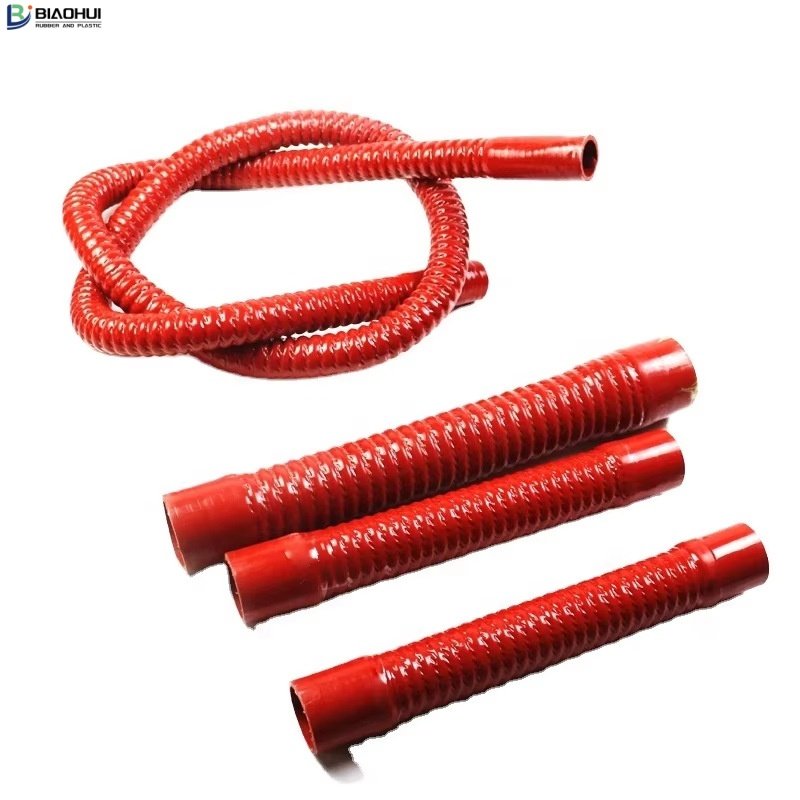

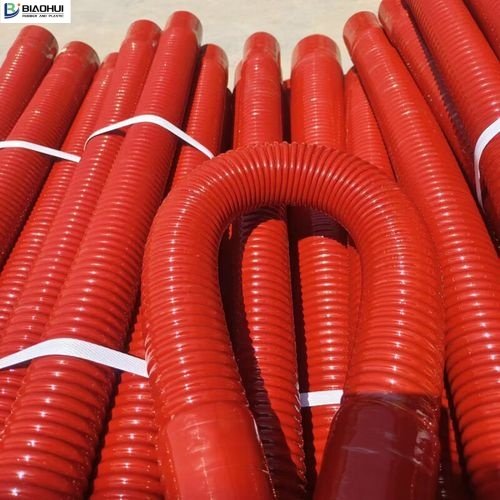

Silicone Corrugated Hose
Silicone corrugated hose is ideal for air cleaner hose, main engine exhaust, engine cooling, engine intake. In a word, it’s the ideal hose for vehicles.
Construction:
Inner:100% High quality silicone Cover:silicone

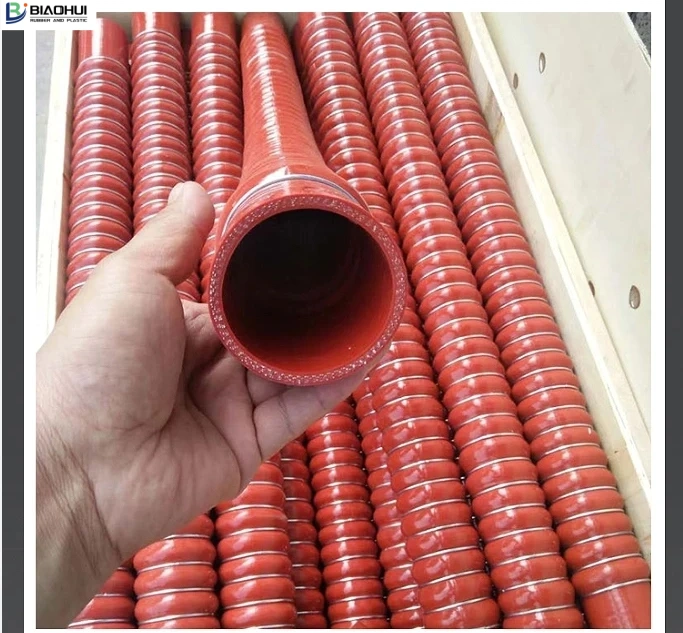

Reinforcement:4ply Polyester/Aramid fabric with helix wire
Color:Black/Red/Blue/Green/Yellow
Application:
mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding
machinery agricultural machinery various machine tools.
Characteristic:
1.100% Virgin silicone materials
2.Provides high pressure resistance and superior impulse resistance.
3.Provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber
4.Provides superior bonding in hose internal, soft use and small deformation under pressure
5.Provides superior kink resistance and fatigue resistance and longer services life
6.Working Pressure:0.3-1.2MPA
Temperature:-40ºC ( -104 ºF ) to +220ºC (+428 ºF )
| Item Number | ID | Layer | Thickness (mm) |
Leg Length (mm) |
Item Number | ID | Layer | Thickness (mm) |
Leg Length (mm) |
| SCH16 | 16 | 4 | 4.5 | 300 400 500 550 600 650 700 750 800 850 900 950 1000 |
SCH45 | 45 | 4 | 4.5 | 300 400 500 550 600 650 700 750 800 850 900 950 1000 |
| SCH18 | 18 | 4 | 4.5 | SCH50 | 50 | 4 | 4.5 | ||
| SCH20 | 20 | 4 | 4.5 | SCH54 | 54 | 4 | 4.5 | ||
| SCH22 | 22 | 4 | 4.5 | SCH57 | 57 | 4 | 4.5 | ||
| SCH25 | 25 | 4 | 4.5 | SCH60 | 60 | 4 | 4.5 | ||
| SCH28 | 28 | 4 | 4.5 | SCH63 | 63 | 4 | 4.5 | ||
| SCH30 | 30 | 4 | 4.5 | SCH65 | 65 | 4 | 4.5 | ||
| SCH32 | 32 | 4 | 4.5 | SCH68 | 68 | 4 | 4.5 | ||
| SCH35 | 35 | 4 | 4.5 | SCH70 | 70 | 4 | 4.5 | ||
| SCH38 | 38 | 4 | 4.5 | SCH74 | 74 | 4 | 4.5 | ||
| SCH41 | 41 | 4 | 4.5 | SCH76 | 76 | 4 | 4.5 | ||
| SCH43 | 43 | 4 | 4.5 | SCH80 | 80 | 4 | 4.5 |
Size，working pressure and wall thickness can be customized as required。
