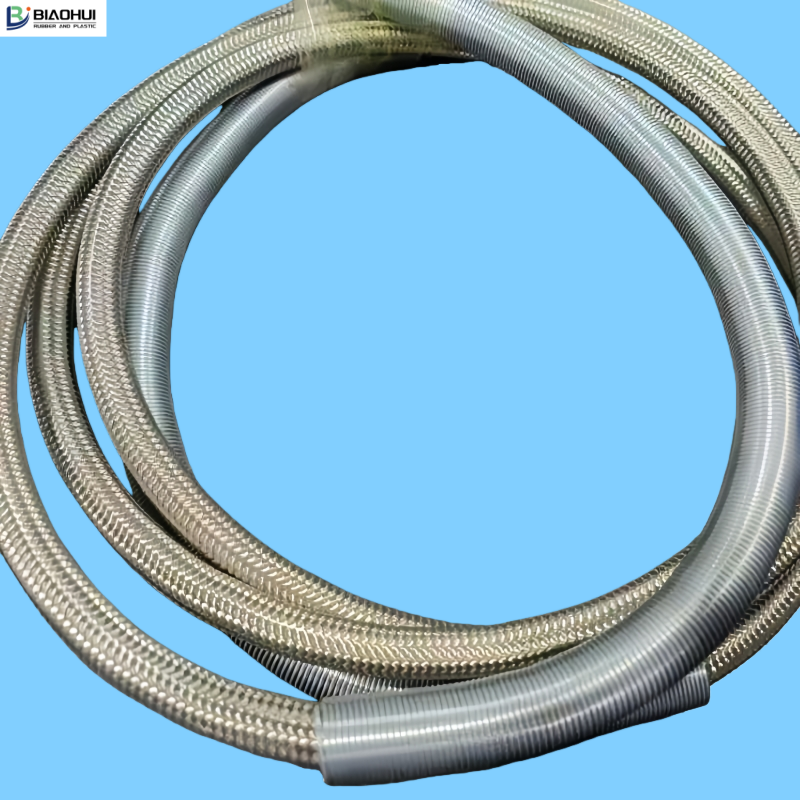

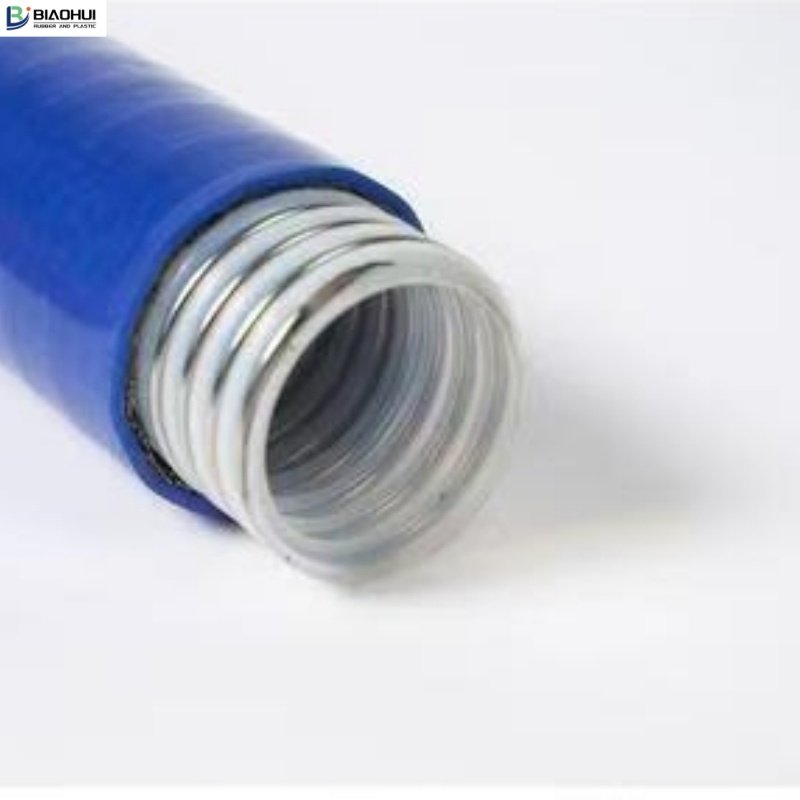

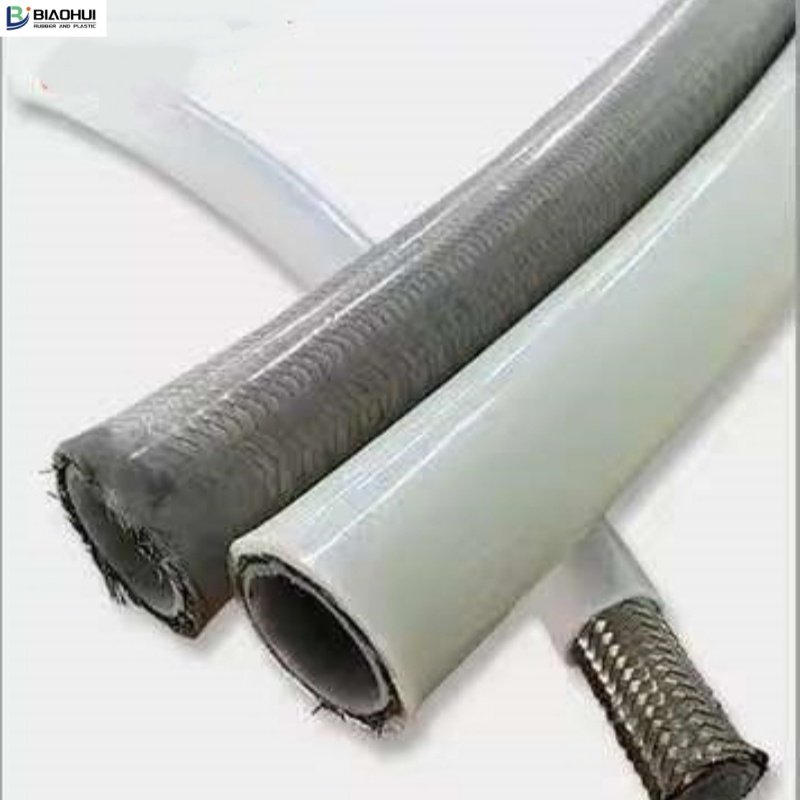

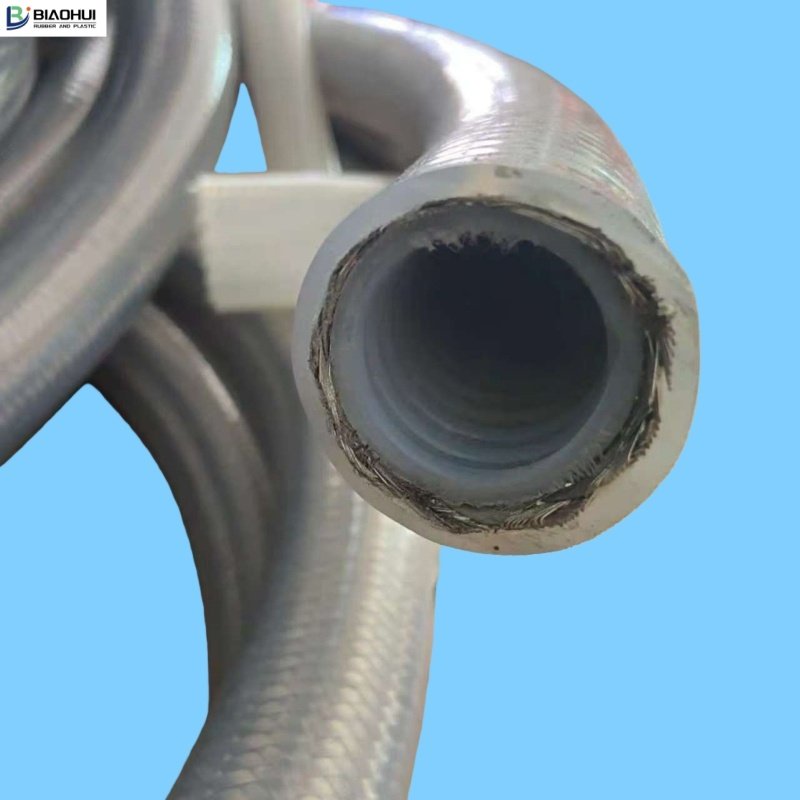

Construction: Type is manufactured from convoluted PTFE tube with stainless steel over braid and transparent silicone cover.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of superb flexibility, zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
| Core | Inter | Minimum outer diameter | Inner tube wall thickness | Bend radius | Work pressure | Burst pressure | |
| in. | mm | mm | mm | mm | bar | bar | |
| 010 | 3/8″ | 9.5 | 18.1 | 0.75 | 25 | 110 | 440 |
| 013 | 1/2″ | 12.7 | 21.1 | 0.75 | 35 | 100 | 400 |
| 016 | 5/8″ | 15.9 | 26.9 | 0.75 | 65 | 85 | 340 |
| 019 | 3/4″ | 19 | 30.4 | 0.90 | 65 | 80 | 320 |
| 025 | 1″ | 25.4 | 38.4 | 1.00 | 75 | 60 | 240 |
| 032 | 1-1/4″ | 32 | 50.1 | 1.00 | 100 | 45 | 180 |
| 038 | 1-1/2″ | 38 | 55.4 | 1.00 | 140 | 35 | 140 |
| 051 | 2″ | 50.8 | 68.9 | 1.10 | 180 | 25 | 100 |
