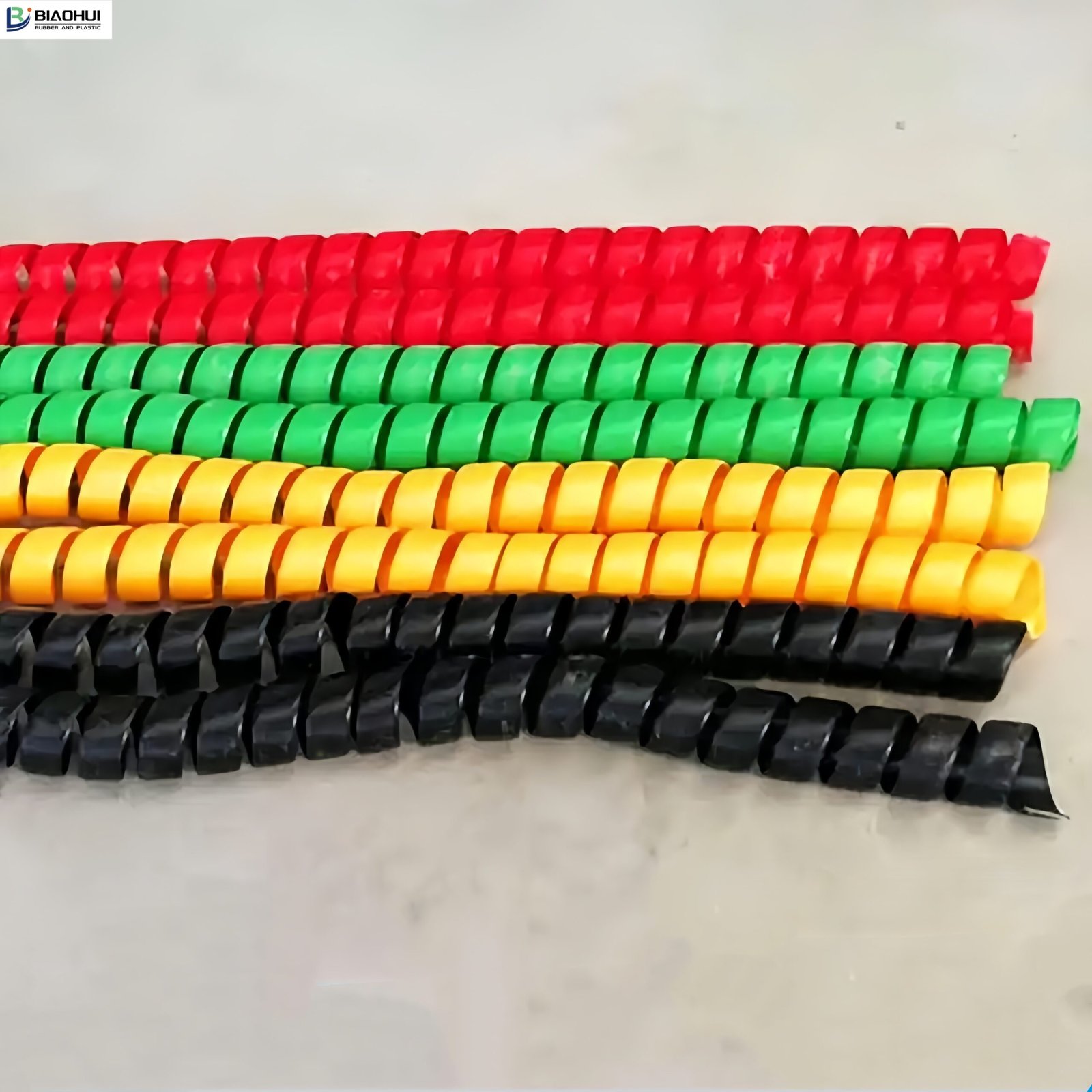

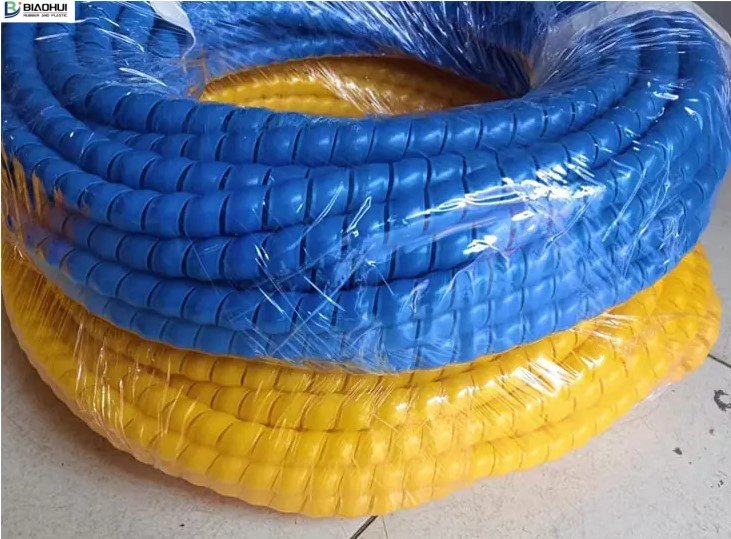

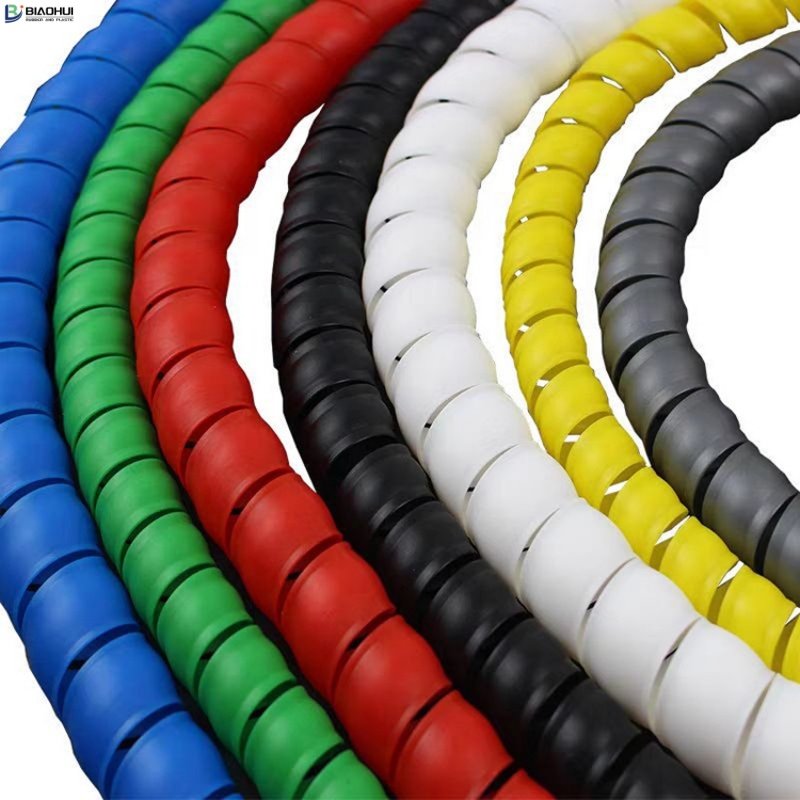

PP Spiral Guard
Spiral hose guard is an method of protecting and extending the life of hydraulic and pneumatic hoses, cables, wires and rope from premature wear.Spiral hose guard will withstand the extremes of climate and operating conditions.Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards.
Construction: Material:PP (Polypropylene)
Application:
The use of spiral hose guard is an economical and convenient method of protecting and extending the life of hydraulic and pneumatic hoses, cables, wires and rope
from premature wear.Spiral hose guard will withstand the extremes of climate and operating conditions.Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards.
Temperature: -50ºC (-122 ºF ) to +80ºC (+176 ºF )
Characteristics:
1.Resistant to acids, oils and solvents
2.UV resistance,abrasion resistant
3.Protect hose increases usable life of hose Recyclable
4.Flame retardant available
| Heavy Duty | |||||||
| Item Code | O.D | I.D | Thickness | Standard Length | Carton size | Applied for hose O.D | |
| mm | mm | mm | mm | ft | cm | mm | |
| 12H | 12 | 9 | 1.5 | 61m | 200ft | 35*35*30 | 10-13 |
| 16H | 16 | 13 | 1.5 | 61m | 200ft | 35*35*30 | 14-17 |
| 20H | 20 | 16 | 2 | 61m | 200ft | 45*45*30 | 17-21 |
| 25H | 25 | 20.6 | 2.2 | 61m | 200ft | 45*45*30 | 22-27 |
| 32H | 32 | 27 | 2.5 | 61m | 200ft | 55*55*36 | 28-35 |
| 40H | 40 | 34.4 | 2.8 | 61m | 200ft | 60*60*42 | 36-45 |
| 50H | 50 | 43.6 | 3.2 | 30.5m | 100ft | 70*70*35 | 46-56 |
| 63H | 63 | 56 | 3.5 | 30.5m | 100ft | 70*70*70 | 57-67 |
| 75H | 75 | 66 | 4.5 | 22.5m | 75ft | 70*70*70 | 68-81 |
| 90H | 90 | 81 | 4.5 | 15m | 50ft | 70*70*48 | 82-100 |
| 110H | 110 | 100 | 5 | 15m | 50ft | 70*70*70 | 101-114 |
| 125H | 125 | 114 | 5.5 | 12m | 40ft | 70*70*70 | 115-127 |
| 140H | 140 | 127 | 6.5 | 12m | 40ft | 70*70*70 | 127-145 |
| Standard Duty | |||||||
| Item Code | O.D | I.D | Thickness | Standard Length | Carton size | Applied for hose O.D | |
| mm | mm | mm | mm | ft | cm | mm | |
| 12S | 12 | 9.6 | 1.2 | 61m | 200ft | 35*35*30 | 10-13 |
| 16S | 16 | 13.6 | 1.2 | 61m | 200ft | 35*35*30 | 14-17 |
| 20S | 20 | 17 | 1.5 | 61m | 200ft | 45*45*30 | 17-21 |
| 25S | 25 | 21 | 2 | 61m | 200ft | 45*45*30 | 22-27 |
| 32S | 32 | 28 | 2 | 61m | 200ft | 55*55*36 | 28-35 |
| 40S | 40 | 35 | 2.5 | 61m | 200ft | 60*60*42 | 36-45 |
| 50S | 50 | 44 | 3 | 30.5m | 100ft | 70*70*35 | 46-56 |
| 63S | 63 | 57 | 3 | 30.5m | 100ft | 70*70*70 | 57-67 |
| 75S | 75 | 68 | 3.5 | 22.5m | 75ft | 70*70*70 | 68-81 |
| 90S | 90 | 82 | 4 | 15m | 50ft | 70*70*48 | 82-100 |
| 110S | 110 | 101 | 4.5 | 15m | 50ft | 70*70*70 | 101-114 |
| 125S | 125 | 116 | 4.5 | 12m | 40ft | 70*70*70 | 115-127 |
| 140S | 140 | 130 | 5 | 12m | 40ft | 70*70*70 | 127-145 |
YOU MAY LIKE
Related products
-
Hose Protective Cover
Silicone Fire Guard
-
Hose Protective Cover

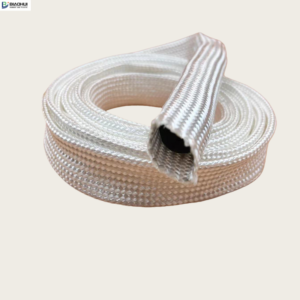

Nylon Guard
