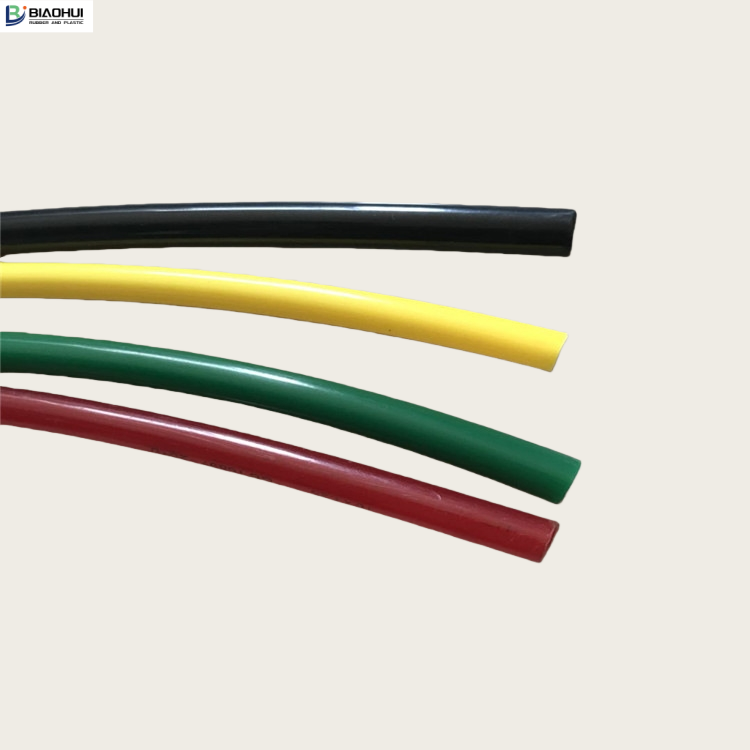

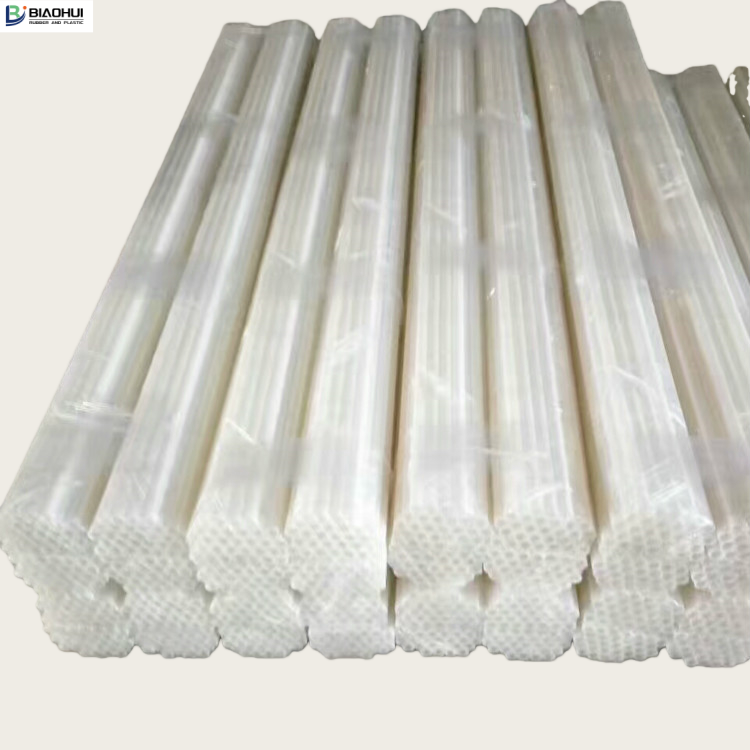

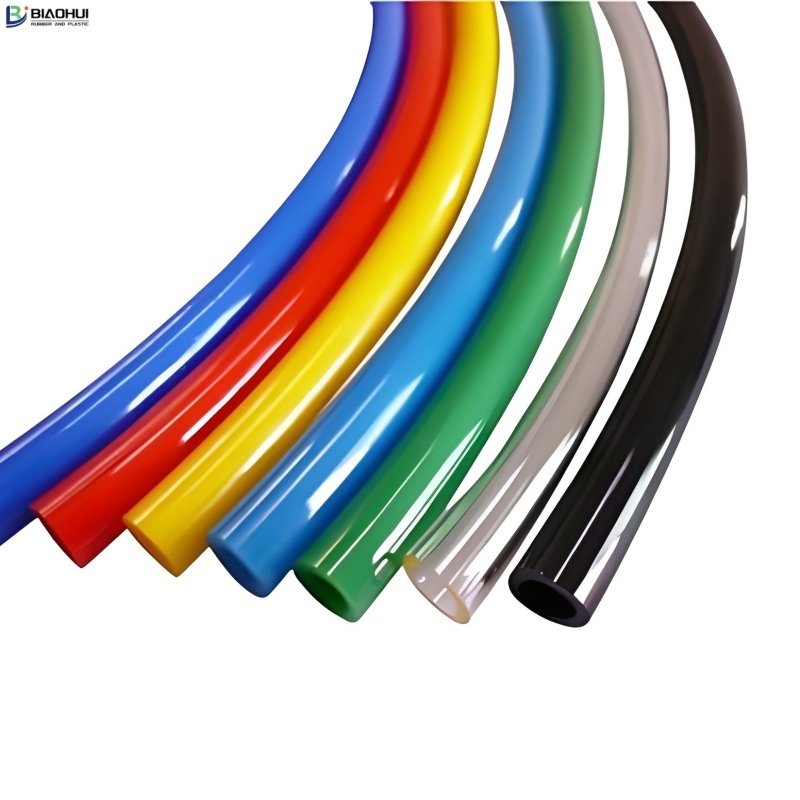

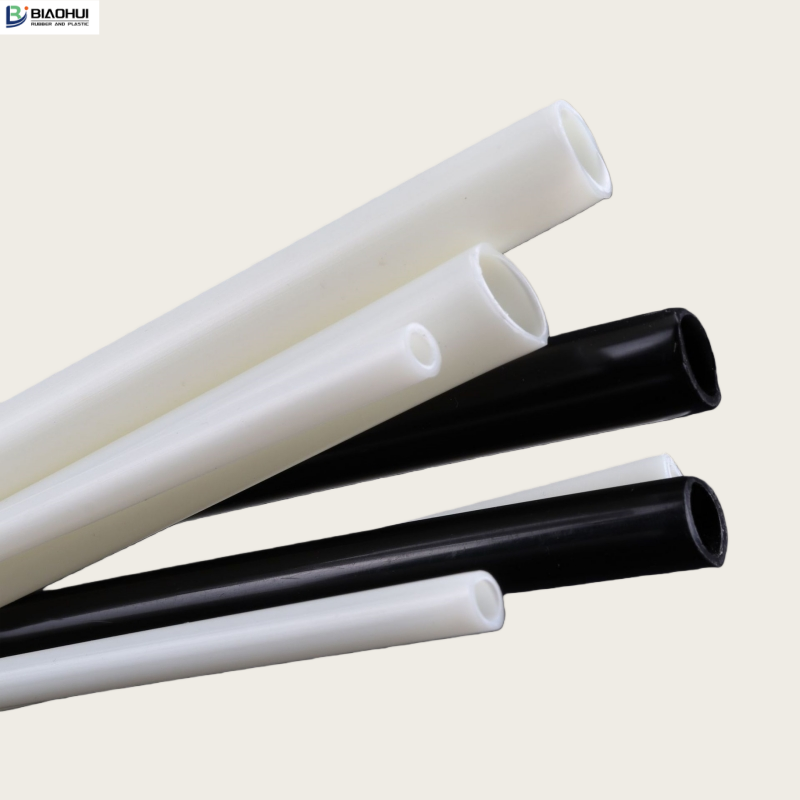

1) PA-6、PA-11 and PA-12 nylon pipes are wear-resistant, easy to bend, and many materials that can cause failure of other types of pipes have no effect on them.
2）The inner walls of PA-6, PA-11, and PA-12 nylon pipes are smooth, the liquid transmission is smooth, and there is no rust or scaling phenomenon.
3) PA-6, PA-11, and PA-12 nylon pipes can be bent and easily installed, and can withstand corrosion from many chemicals. It has a long lifespan within its application range and has great stability in stretching and bending.
4) PA-6, PA-11, and PA-12 nylon tubes have extremely high resistance, so they can be used as insulators.
5) The pipes made of PA-6, PA-11, and PA-12 nylon materials have stable dimensions and extremely low permeability.
Scope of application: Air, who, chemical lubrication, instrument lines, irrigation control systems, textile factories, food factories, fuel delivery pipes for vehicles and ships, vacuum systems, air conditioning systems, oscillation insulators, electrostatic insulators, and other industries. Can maintain flexibility and function normally within the temperature range of -40 ℃ to+120 ℃.
| Specifications（mm） | outer diametermm（mm） | wall thicknessmm（mm） | work pressure（MPa） | burst pressure（MPa） | permissible tolerance | |
| outer diametermm（mm） | inner diameter（mm） | |||||
| Φ4×0.75 | 4 | 0.75 | 2.4 | 9.5 | ±0.1 | ±0.1 |
| Φ4×1 | 4 | 1 | 2.75 | 11.0 | ±0.1 | ±0.1 |
| Φ4.7×0.61 | 4.7 | 0.61 | 2.5 | 10.0 | ±0.1 | ±0.1 |
| Φ5×1 | 5 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ6×1 | 6 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ6×1.5 | 6 | 1.5 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ7×1 | 7 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ8×1 | 8 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ8×1.5 | 8 | 1.5 | 2.1 | 8.5 | ±0.15 | ±0.1 |
| Φ9×1.5 | 9 | 1.5 | 2.0 | 8.0 | ±0.15 | ±0.1 |
| Φ10×1 | 10 | 1 | 1.9 | 7.5 | ±0.15 | ±0.1 |
| Φ10×1.25 | 10 | 1.25 | 2.1 | 8.3 | ±0.15 | ±0.1 |
| Φ10×1.5 | 10 | 1.5 | 2.1 | 8.5 | ±0.15 | ±0.1 |
| Φ12×1.25 | 12 | 1.25 | 2.1 | 8.2 | ±0.15 | ±0.1 |
| Φ12×1.5 | 12 | 1.5 | 2.1 | 8.4 | ±0.15 | ±0.1 |
| Φ14×1 | 14 | 1 | 1.9 | 7.7 | ±0.15 | ±0.15 |
| Φ14×1.5 | 14 | 1.5 | 2.0 | 8.0 | ±0.15 | ±0.15 |
| Φ15×1 | 15 | 1 | 1.8 | 7.5 | ±0.15 | ±0.15 |
| Φ15×1.5 | 15 | 1.5 | 1.9 | 7.8 | ±0.15 | ±0.15 |
| Φ16×1.5 | 16 | 1.5 | 2.0 | 8.2 | ±0.15 | ±0.15 |
| Φ18×1 | 18 | 1 | 1.0 | 4.25 | ±0.15 | ±0.15 |
| Φ18×1.25 | 18 | 1.25 | 1.4 | 5.5 | ±0.15 | ±0.15 |
| Φ18×1.5 | 18 | 1.5 | 1.7 | 6.8 | ±0.15 | ±0.15 |
| Φ19×1.5 | 19 | 1.5 | 1.5 | 6.3 | ±0.15 | ±0.15 |
| Φ20×2 | 20 | 2 | 1.6 | 6.5 | ±0.15 | ±0.15 |
| Φ22×1.5 | 22 | 1.5 | 1.3 | 5.3 | ±0.15 | ±0.15 |
| Φ25×1.5 | 25 | 1.5 | 1.0 | 4.2 | ±0.15 | ±0.15 |
| Φ28×1.5 | 28 | 1.5 | 0.8 | 3.2 | ±0.15 | ±0.15 |
| Φ35×1.5 | 35 | 1.5 | 0.4 | 1.8 | ±0.15 | ±0.15 |
| Φ40×2 | 40 | 2 | 0.4 | 1.6 | ±0.15 | ±0.15 |
| Φ45×2.5 | 45 | 2.5 | 0.45 | 1.8 | ±0.18 | ±0.15 |
| Φ51×2.5 | 51 | 2.5 | 0.4 | 1.6 | ±0.18 | ±0.15 |
| Φ64×3 | 64 | 3 | 0.4 | 1.6 | ±0.2 | ±0.2 |
| Φ76×3 | 76 | 3 | 0.35 | 1.4 | ±0.2 | ±0.2 |
| Φ80×3 | 80 | 3 | 0.3 | 1.2 | ±0.25 | ±0.2 |
