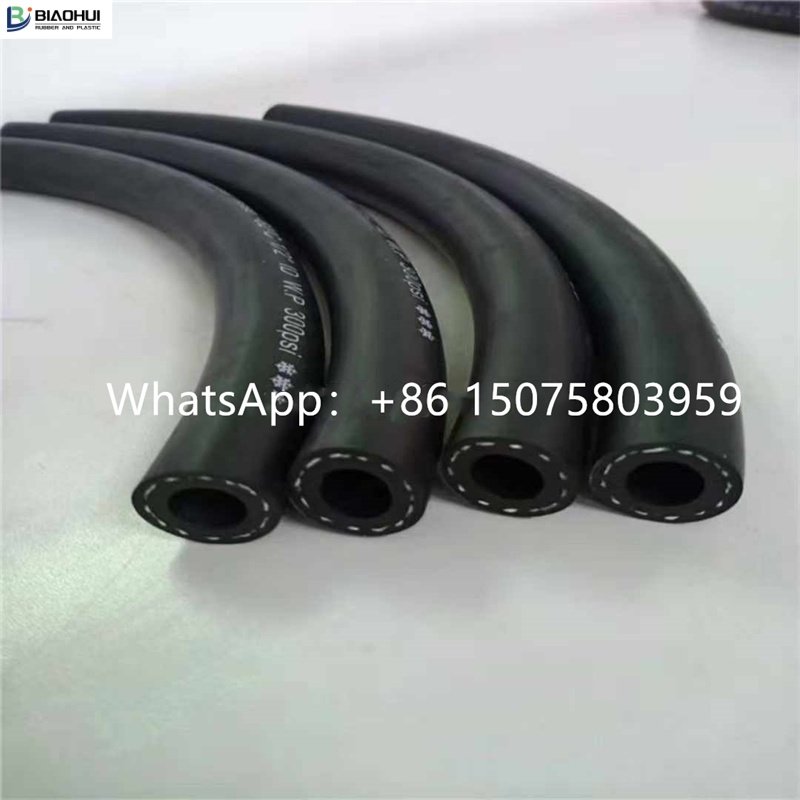

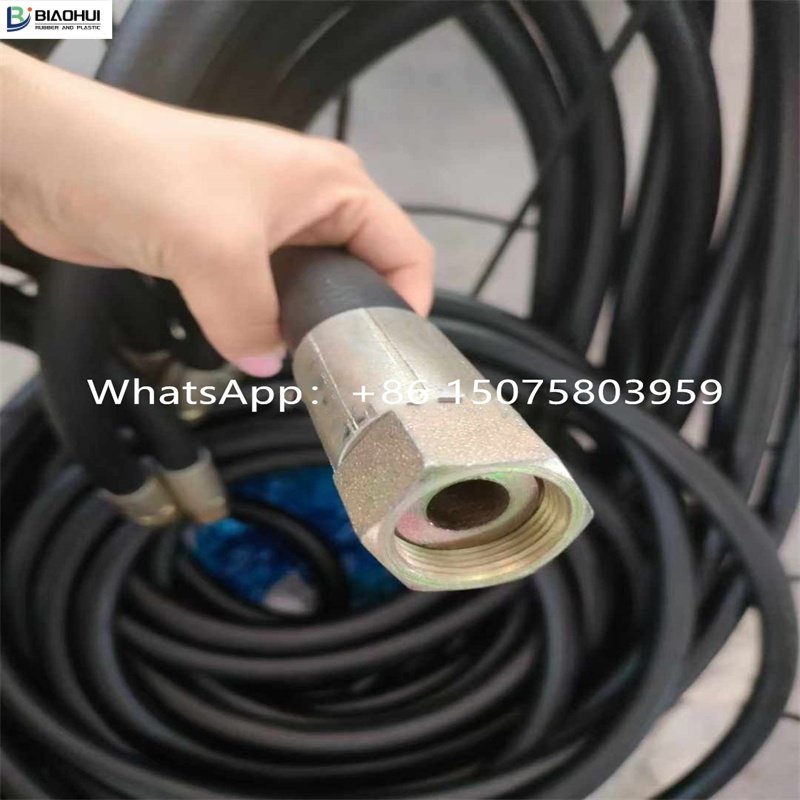

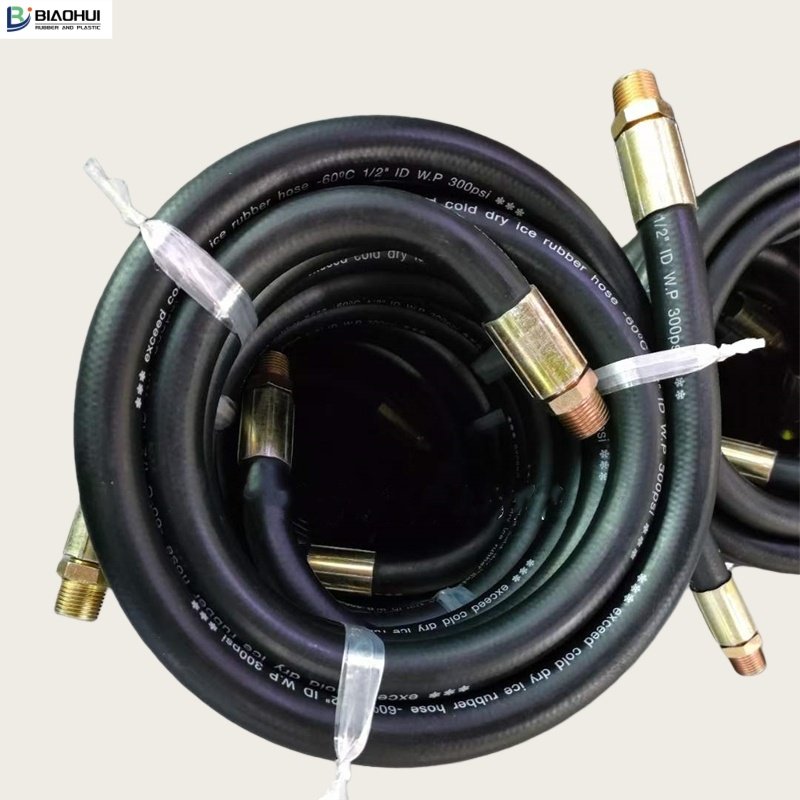

Low Temperature Resistant Dry Ice Conveying Hose
A hose used for dry ice spraying, applied in industries that require special sandblasting and cleaning services. The hose is super wear-resistant and resistant to dynamic bending.
Application scope:
A hose used for dry ice spraying, applied in industries that require special sandblasting and cleaning services. The hose is super wear-resistant and resistant to dynamic bending.
Technical features:
The rubber layer is conductive with a resistivity of R<106 ohm and meets the American ASTM anti-static design standard.
Hose structure:
Inner tube: black low temperature resistant, wear-resistant, anti-static synthetic rubber.
Reinforcement layer: German made high-strength synthetic fiber woven layer.
Outer tube: Black ultra low temperature resistant, wear-resistant, anti-static synthetic rubber, smooth surface, black.
Applicable temperature: -60 to 90 ℃.
| Cord | ID | ID | OD | Bending | WP | BP | Lengh/roll |
| inch | mm | mm | mm | bar | bar | m | |
| GTL004-010 | 3/8″ | 9.5 | 17.5 | 100 | 15 | 60 | 100 |
| GTL004-010 | 3/8″ | 9.5 | 20 | 120 | 20 | 80 | 100 |
| GTL004-013 | 1/2″ | 12.7 | 25 | 120 | 20 | 80 | 100 |
| GTL004-016 | 5/8″ | 15.9 | 28 | 150 | 15 | 60 | 60 |
| GTL004-019 | 3/4″ | 19 | 31 | 170 | 10 | 40 | 60 |
| GTL004-019B | 3/4″ | 19 | 33.5 | 170 | 20 | 80 | 60 |
| GTL004-025 | 1″ | 25.4 | 38 | 200 | 10 | 40 | 60 |
| GTL004-025B | 1″ | 25.4 | 40 | 200 | 25 | 100 | 60 |
Size,working pressure and wall thickness can be customized as required。
