Hydraulic Rubber Hose SAE100 R15
Hydraulic Rubber Hose SAE100 R15 is suitable for extremely high pressure and high impulse usages. This hose meets SAE 100R15 and EN 856 4SP(-6,-8,-10 and -12), EN856 4SH(-12, -16 and -20). It’s ideal for hydraulic fluids like synthetic esters and vegetable oils as well as petroleum based fluids.

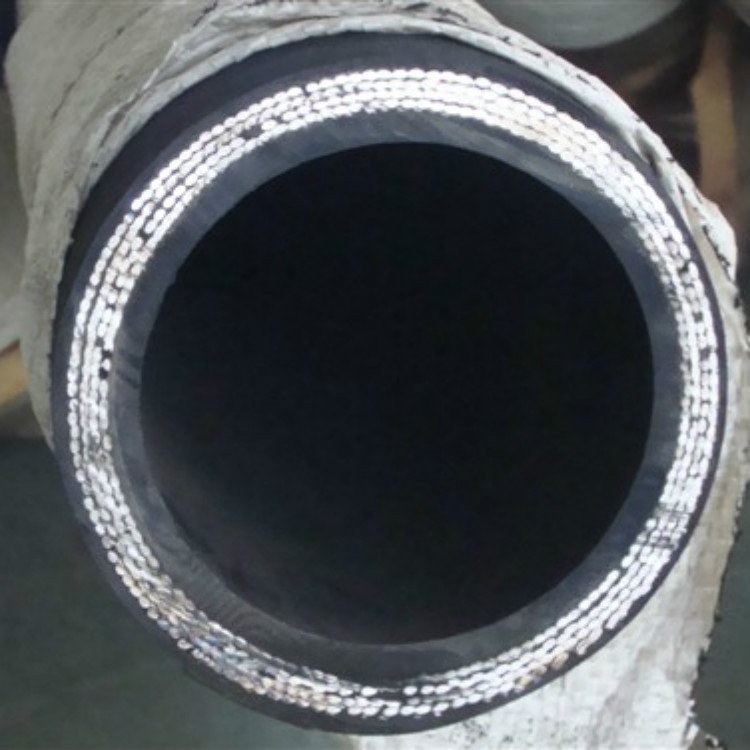

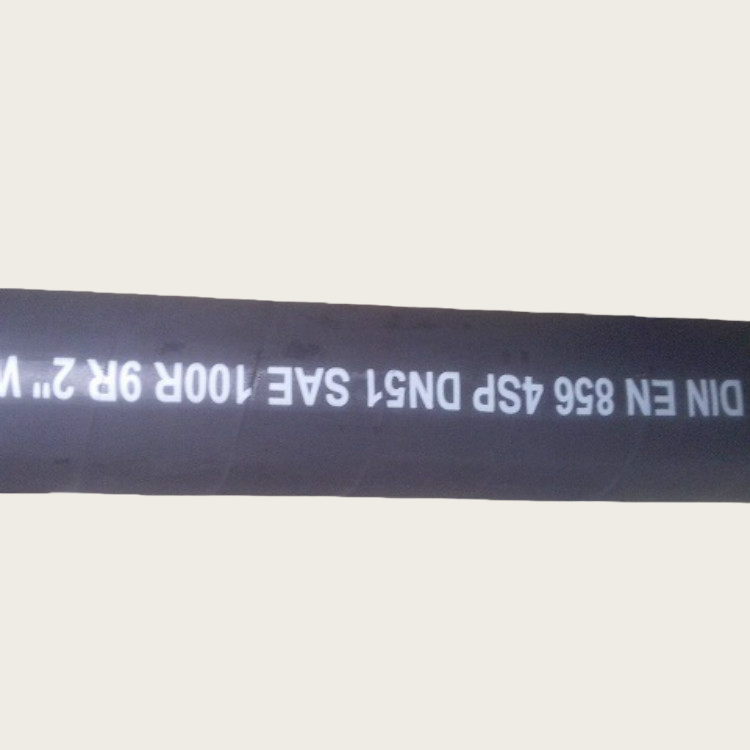

EN856 4SP-FOUR LAYERS STEEL WIRE SPIRAL HIGH PREESSURE HYDRAULIC HOSE
Construction:
INNER TUBE:oil resistant synthetic nitrile rubber
REINFORCEMENT:4 layers of steel wire spiral.
COVER:oil and weather resistant synthetic rubber
APPLICATION:petroleum base and water base hydraulic fluids
TEMPERATURE RANGE:-40ºC (-104 ºF ) to +100ºC(+212 ºF)
| Item Code | Metric Size | Inch Size | SAE Dash size | I.D | W.D | O.D | Max W.P | Min B.P | Min B.R | W.T | ||||
| (mm) | (mm) | (mm) | ||||||||||||
| mm | inches | Dash | Min | Max | Min | Max | Min | Max | Mpa | psi | Mpa | mm | Kg/m | |
| 4SP-06 | 6.3 | 1/4 | 04 | 6.2 | 7.0 | 14.1 | 15.3 | 17.1 | 18.7 | 45.0 | 6530.0 | 180.0 | 150.0 | 0.6 |
| 4SP-10 | 10 | 3/8 | 06 | 9.3 | 10.1 | 16.9 | 18.1 | 20.6 | 22.2 | 44.5 | 6450.0 | 178.0 | 180.0 | 0.76 |
| 4SP-13 | 12.5 | 1/2 | 08 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 41.5 | 6020.0 | 166.0 | 230.0 | 0.9 |
| 4SP-16 | 16 | 5/8 | 10 | 15.5 | 16.7 | 23.0 | 24.6 | 27.4 | 29.0 | 35.0 | 5080.0 | 140.0 | 250.0 | 1.1 |
| 4SP-19 | 19 | 3/4 | 12 | 18.6 | 19.8 | 27.4 | 29.0 | 31.4 | 33.0 | 35.0 | 5080.0 | 140.0 | 300.0 | 1.48 |
| 4SP-25 | 25 | 1 | 16 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 28.0 | 4060.0 | 112.0 | 340.0 | 2.02 |
| 4SP-32 | 31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 45.0 | 47.0 | 49.2 | 52.4 | 21.0 | 3050.0 | 84.0 | 460.0 | 2.98 |
| 4SP-38 | 38 | 1-1/2 | 24 | 37.7 | 39.3 | 51.4 | 53.6 | 55.6 | 58.8 | 18.5 | 2680.0 | 74.0 | 560.0 | 3.55 |
| 4SP-51 | 51 | 2 | 32 | 50.4 | 52.0 | 64.3 | 66.3 | 68.2 | 71.4 | 16.5 | 2390.0 | 66.0 | 660.0 | 4.86 |
EN 856 4SH-FOUR LAYERS STEEL WIRE SPIRAL EXTRA HIGH PREESSURE HYDRAULIC HOSE
Construction:
INNER TUBE:oil resistant synthetic nitrile rubber
REINFORCEMENT: four layers of spiral steel wire
COVER:oil and weather resistant synthetic rubber
APPLICATION:petroleum base and water base hydraulic fluids
TEMPERATURE RANGE:-40ºC (-104 ºF ) to +100ºC(+212 ºF)
| Item Code | Metric Size | Inch Size | SAE Dash size | I.D | W.D | O.D | Max W.P | Min B.P | Min B.R | W.T | ||||
| (mm) | (mm) | (mm) | ||||||||||||
| mm | inches | Dash | Min | Max | Min | Max | Min | Max | Mpa | psi | Mpa | mm | Kg/m | |
| 4SH-19 | 19 | 3/4 | 12 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33.0 | 42.0 | 6090 | 168.0 | 280.0 | 1.64 |
| 4SH-25 | 25 | 1 | 16 | 25.0 | 26.4 | 34.4 | 36.0 | 37.5 | 39.9 | 38.0 | 5510 | 152.0 | 340.0 | 2.03 |
| 4SH-32 | 31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 4710 | 130.0 | 460.0 | 2.45 |
| 4SH-38 | 38 | 1-1/2 | 24 | 37.7 | 39.3 | 47.8 | 49.8 | 51.9 | 55.1 | 29.0 | 4210 | 116.0 | 560.0 | 3.35 |
| 4SH-51 | 51 | 2 | 32 | 50.4 | 52.0 | 62.2 | 64.2 | 66.5 | 69.7 | 25.0 | 3630 | 100.0 | 700.0 | 4.5 |
