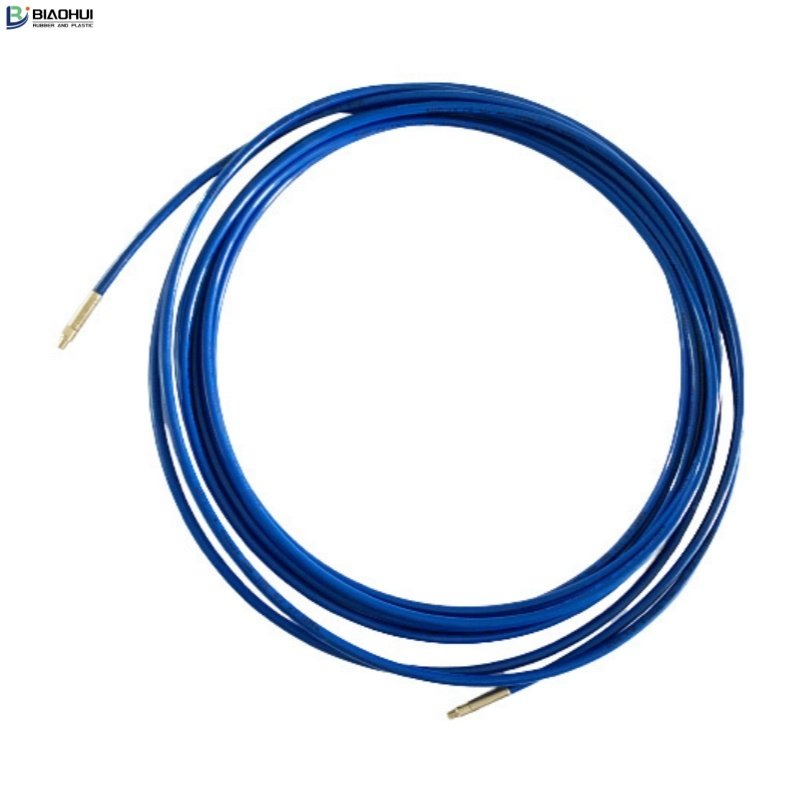

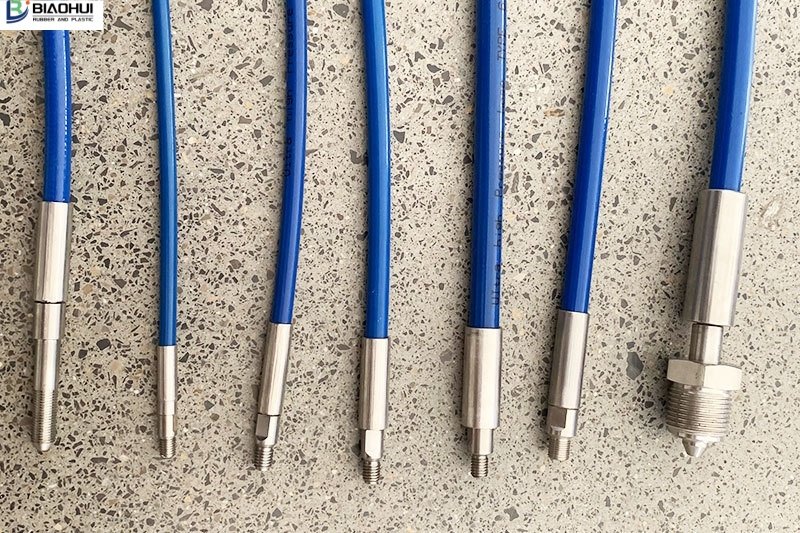

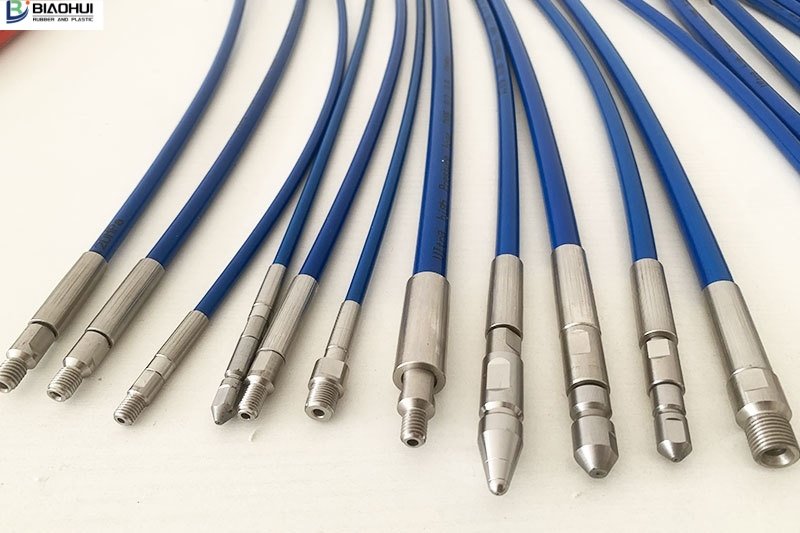

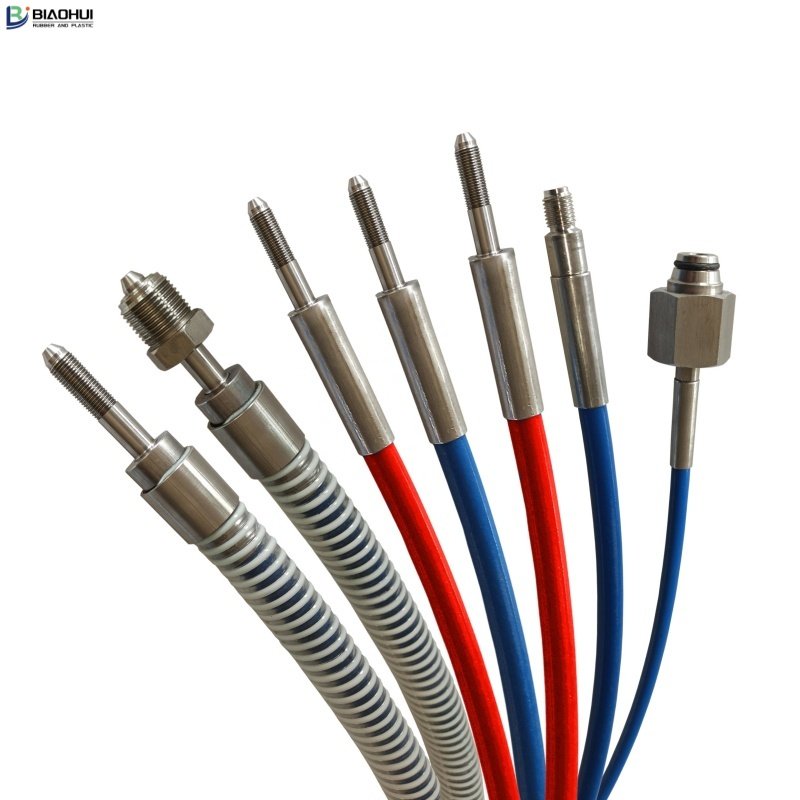

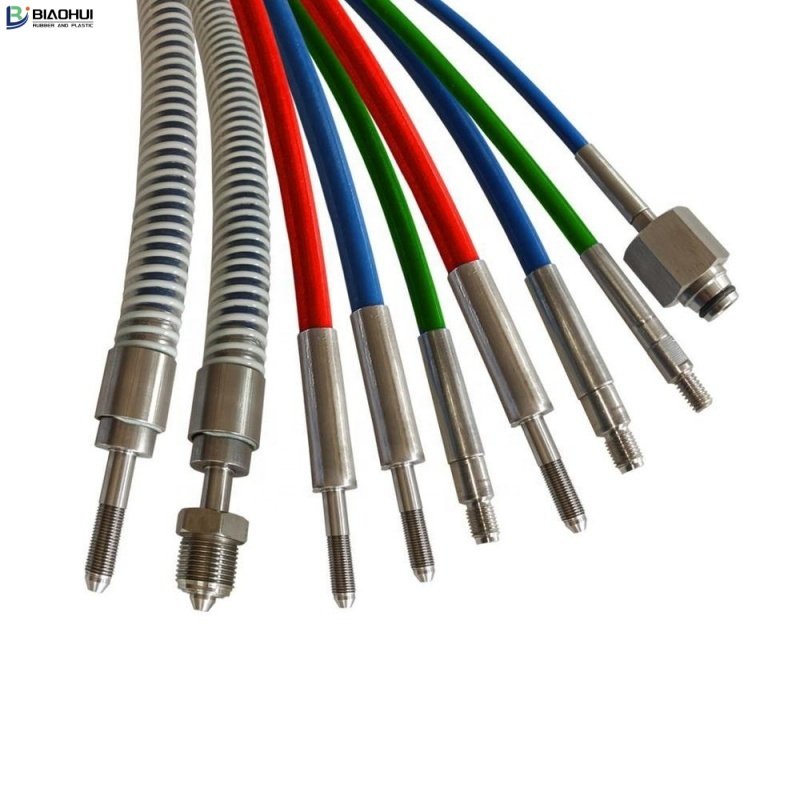

UHP Water Cleaning Flexible Hose
oil resistance,high pressure resistance,resistance to acid and alkali,wear resistance,smooth linning,high chemical resisitance,long life and so on.
Application:
1. WATER CLEANING: Heat Exchanger Tube Cleaning ,Ultra High Pressure Water jet Table Cutting, Ultra High Pressure Tube Cleaning, Paint Removal, Automated Cleaning Booths, Hydro Demolition of Concrete, Large Bore Pipe Cleaning, Tank and Vessel Cleaning, Water blast Supply Hose
2.HYDRAULIC: Instrumentation Packages for Gauges, Pressure Testing for Valves, Tooling and Control Panels Bolt Tensioning and Torque Tools, Hydraulic Jacks, Controls for Service Equipment, Instrumentation Packages for Gauges, Pressure Testing for Valves, Tooling and Control Panels
Structure:
Inner tube material: POM or PA
Reinforced: high tensile steel wire winding
Outer tube material: PU or PA
Temperature: -40 to 120℃
3.characteristic
oil resistance,high pressure resistance,resistance to acid and alkali,wear resistance,smooth linning,high chemical resisitance,long life and so on.
![]()
| Hose type | I.D(mm) | O.D(mm) | W.P(Mpa) | B.P(Mpa) | Bend Radius |
| 3/2SP | 3 | 8 | 120 | 300 | 95 |
| 3/4SP | 3 | 9.2 | 200 | 500 | 100 |
| 4/2SP | 4 | 10.8 | 120 | 300 | 105 |
| 4/4SP | 4 | 12.6 | 200 | 500 | 115 |
| 4/6SP | 4 | 14.4 | 260 | 650 | 130 |
| 4/8SP | 4 | 16.2 | 310 | 775 | 145 |
| 5/2SP | 5 | 12.2 | 120 | 300 | 115 |
| 5/4SP | 5 | 14 | 180 | 450 | 120 |
| 6/2SP | 6 | 13.6 | 110 | 275 | 125 |
| 6/4SP | 6 | 15.6 | 170 | 425 | 140 |
| 8/6SP | 8 | 20.2 | 220 | 550 | 195 |
| 8/8SP | 8 | 12.2 | 260 | 650 | 210 |
| 10/4SP | 10 | 21.4 | 160 | 400 | 200 |
| 10/6SP | 10 | 23.8 | 220 | 550 | 220 |
| 25/4SP | 25 | 39 | 60 | 150 | 400 |
