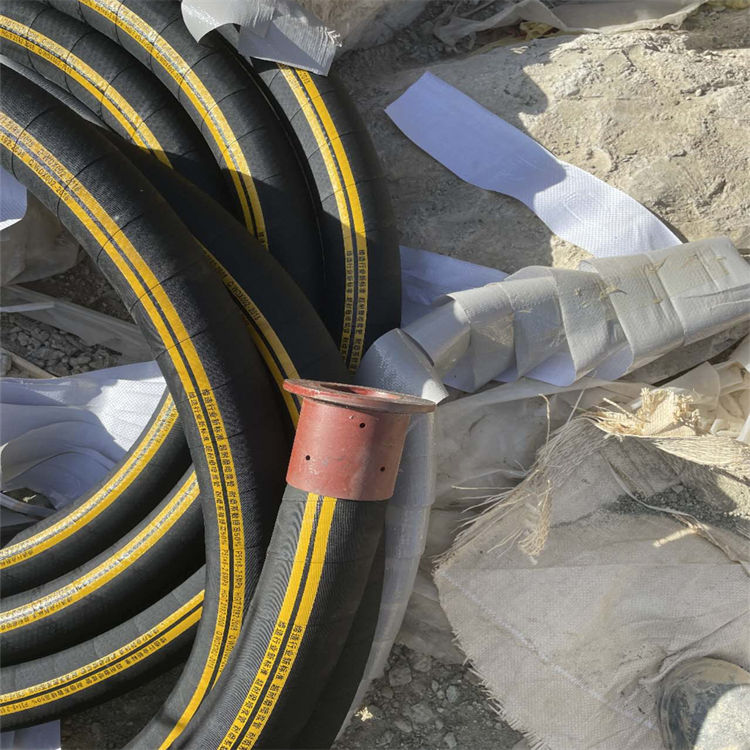

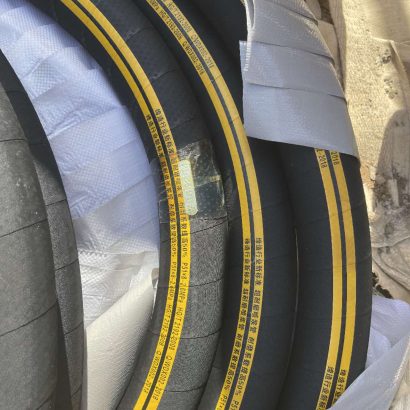

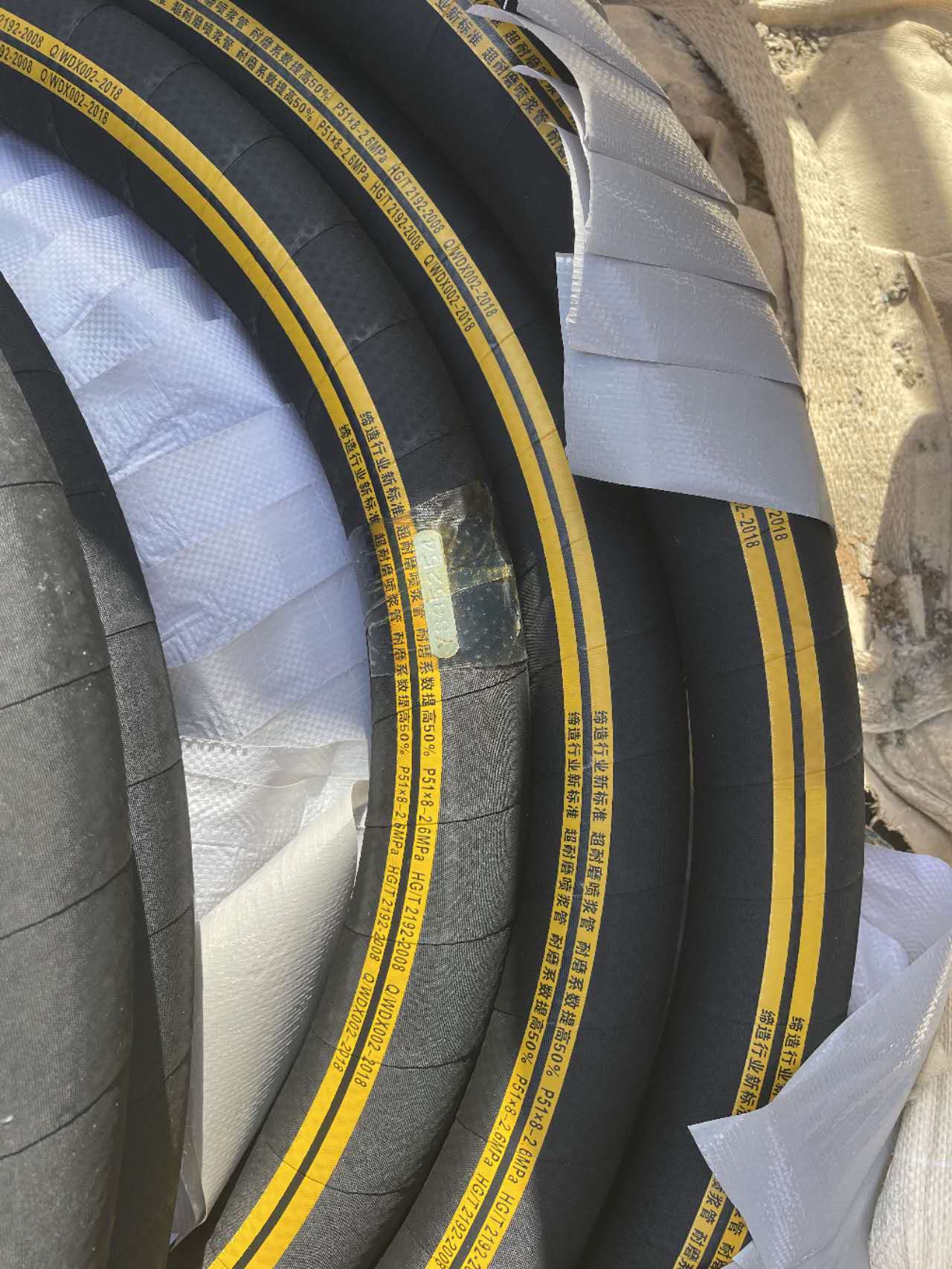

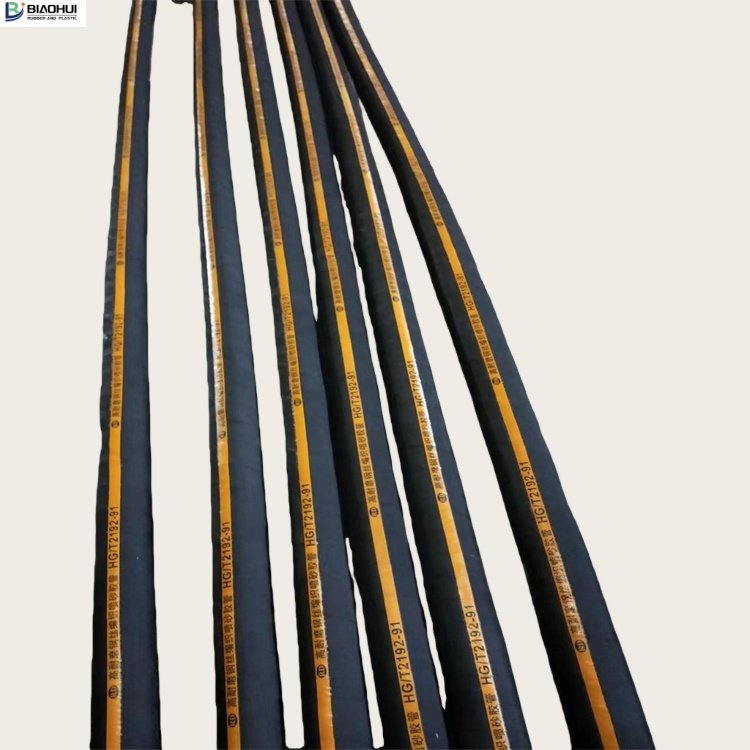

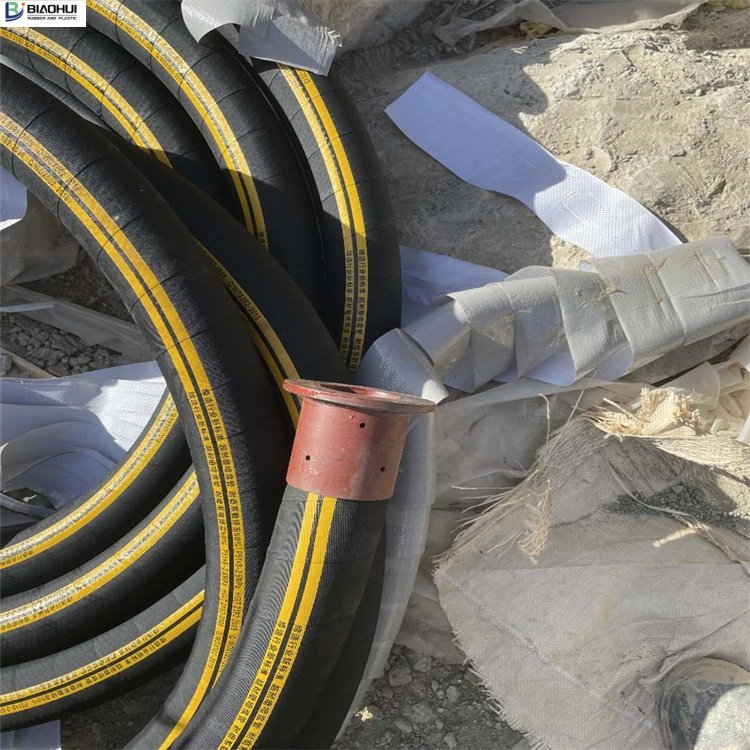

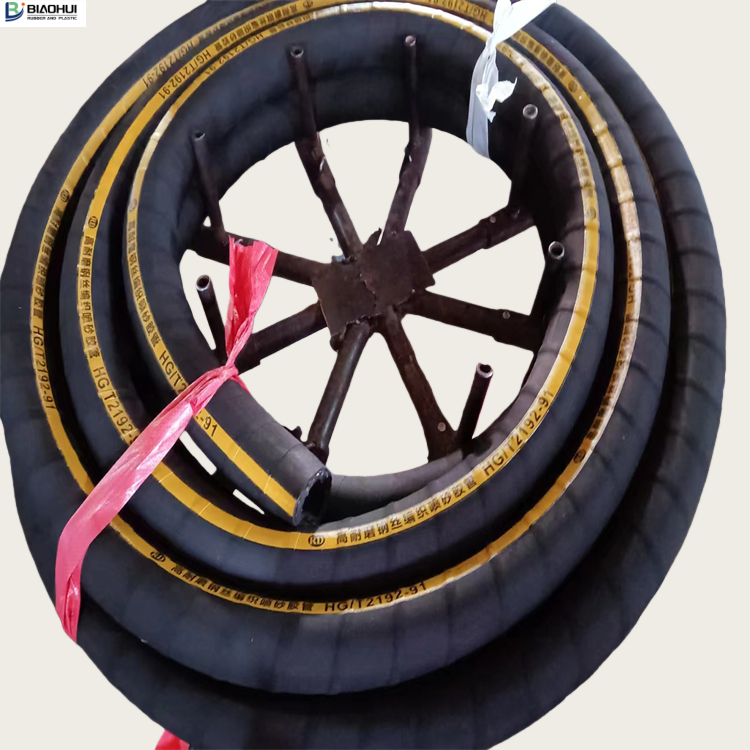

Gypsum and Mortar Spraying Machine Hose

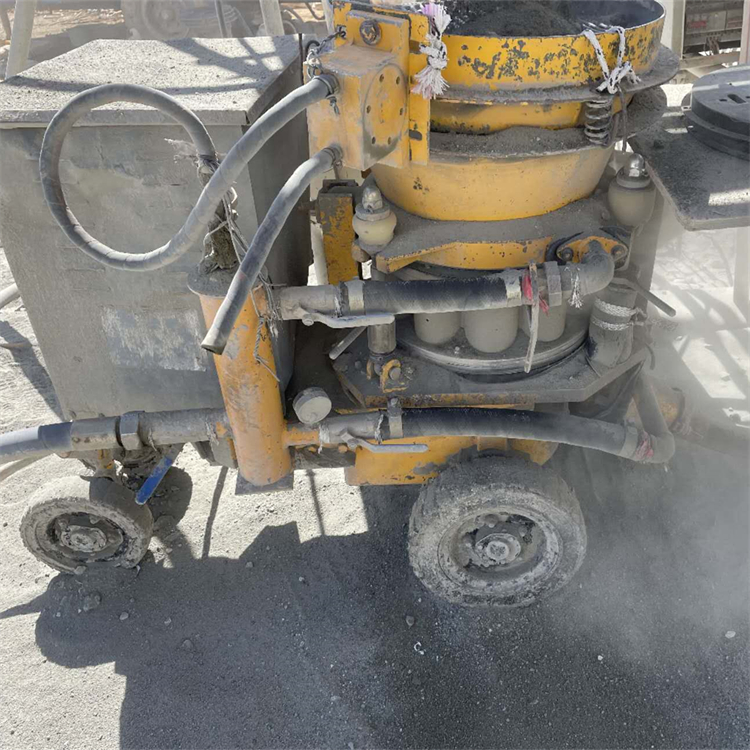

Plaster & Grout Hose is used to conduct wet cement, plaster, grout, wet shotcrete and concrete. While it serves in building, dam, tunnel face, swimming pool or construction. It can also be used for material handling on drilling rigs.
Gypsum and Mortar Spraying Machine Hose

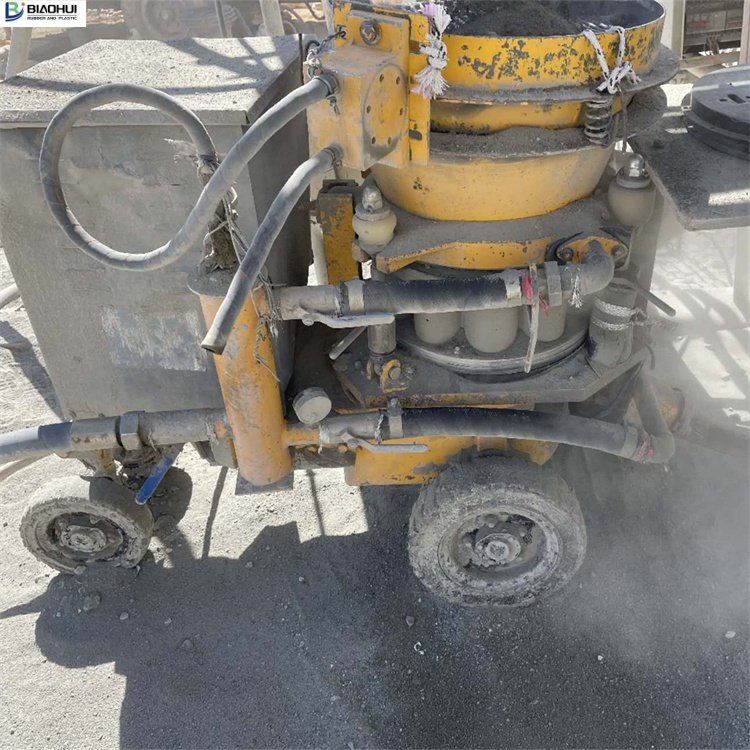

Application: Used for spraying plaster, grout, sand and gypsym.
Characteristic: Ozone and weather resistant cover Excellent abrasion resistance. Variety of applications.
Construction：

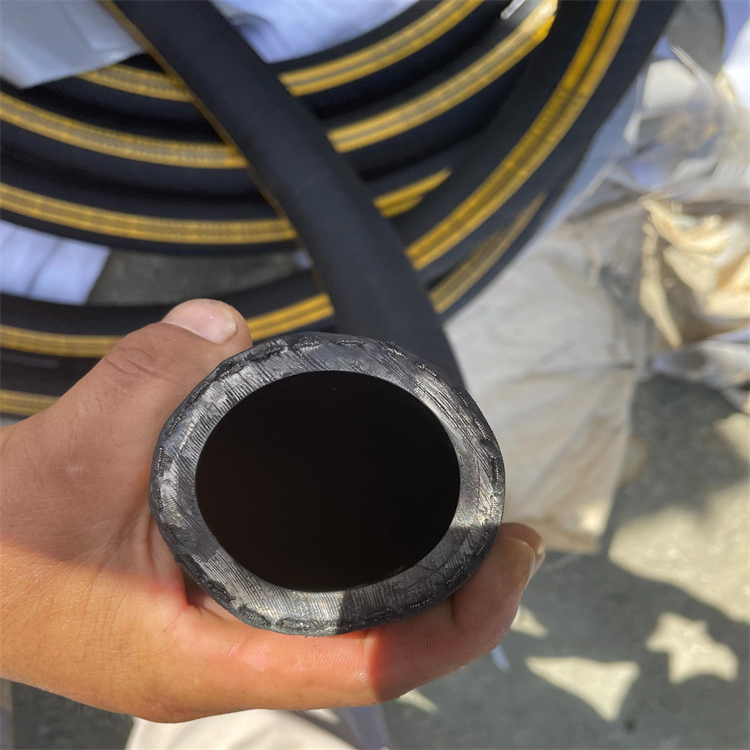

Tube: NR/SBR synthetic rubber.
Reinforcement: four or six plies of synthetic textile with a static wire. Cover:NR/SBR synthetic rubber,black,cloth impression.
Temperature：-40℃ to +70℃（-40℉ to +158℉)
|
Item |
ID |
OD |
W.P |
B.P |
Lenght |
||||
|
|
Inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
Ft |
|
025 |
1″ |
25 |
38 |
40 |
600 |
120 |
1800 |
60 |
200 |
|
032 |
1-1/4″ |
32 |
50 |
40 |
600 |
120 |
1800 |
60 |
200 |
|
038 |
1-1/2″ |
38 |
56 |
40 |
600 |
120 |
1800 |
60 |
200 |
|
051 |
2″ |
51 |
73 |
40 |
600 |
120 |
1800 |
60 |
200 |
|
064 |
2-1/2″ |
64 |
84 |
40 |
600 |
120 |
1800 |
60 |
200 |
|
076 |
3″ |
76 |
102 |
40 |
600 |
120 |
1800 |
60 |
200 |
|
086 |
3-1/2″ |
89 |
113 |
40 |
600 |
120 |
1800 |
60 |
200 |
|
0102 |
4″ |
102 |
127 |
40 |
600 |
120 |
1800 |
60 |
200 |
Size，working pressure and wall thickness can be customized as required。
