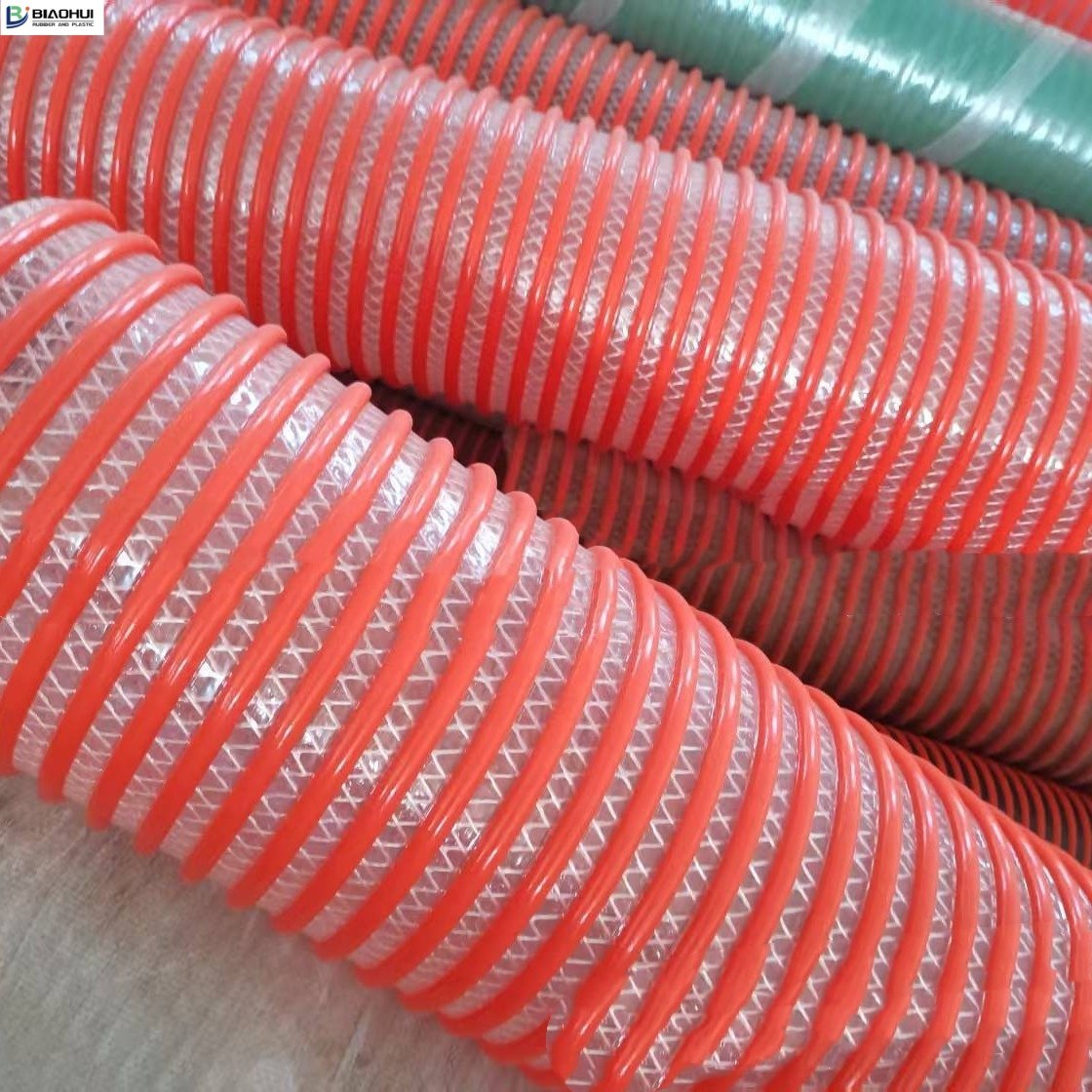

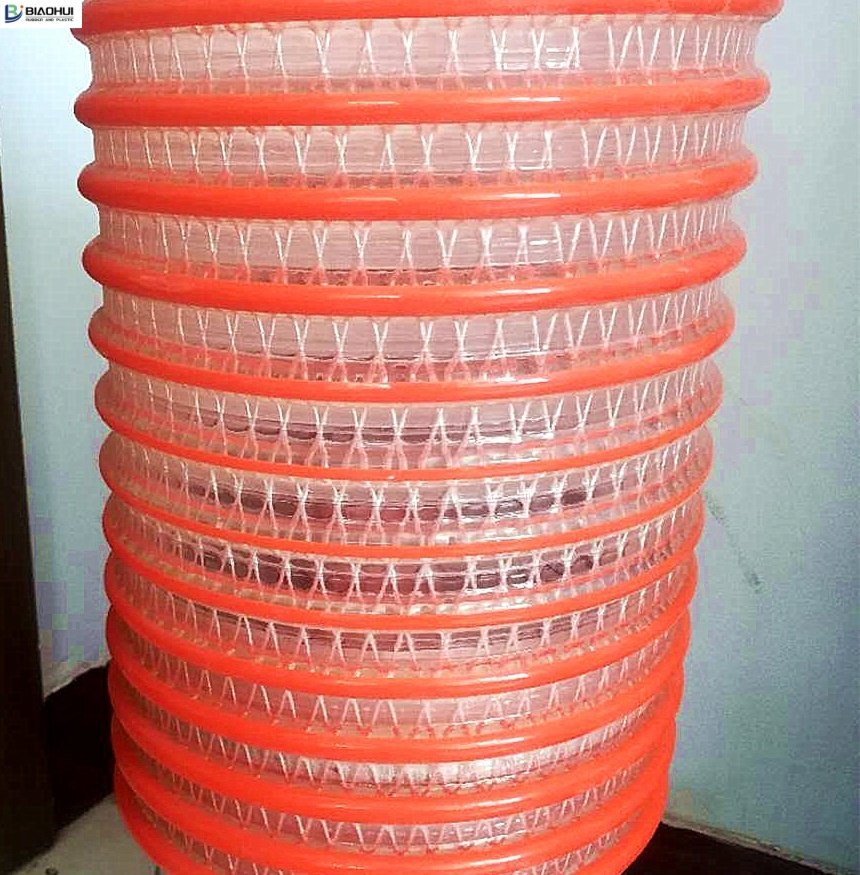

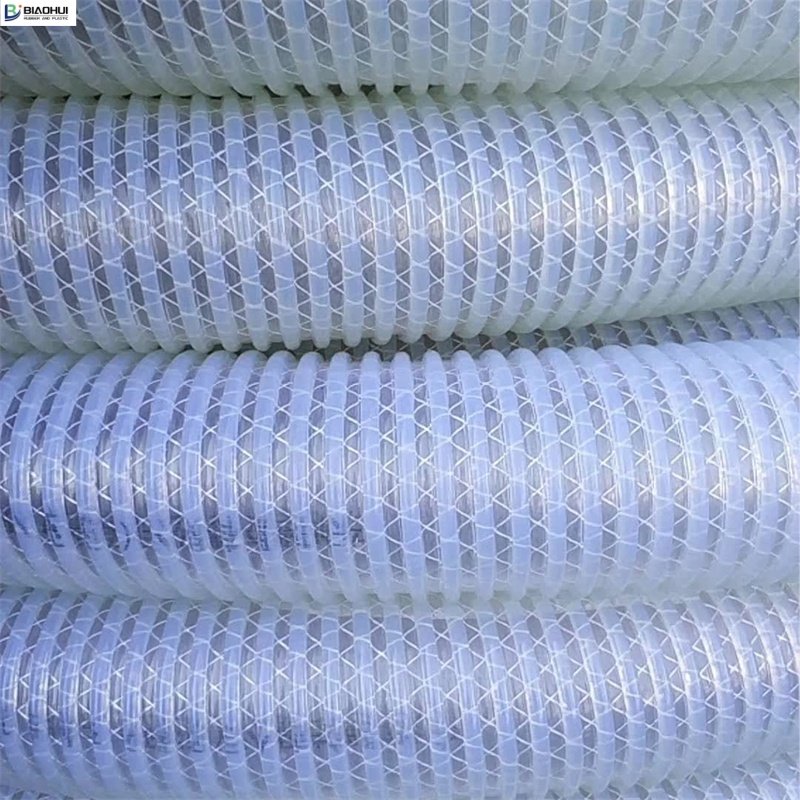

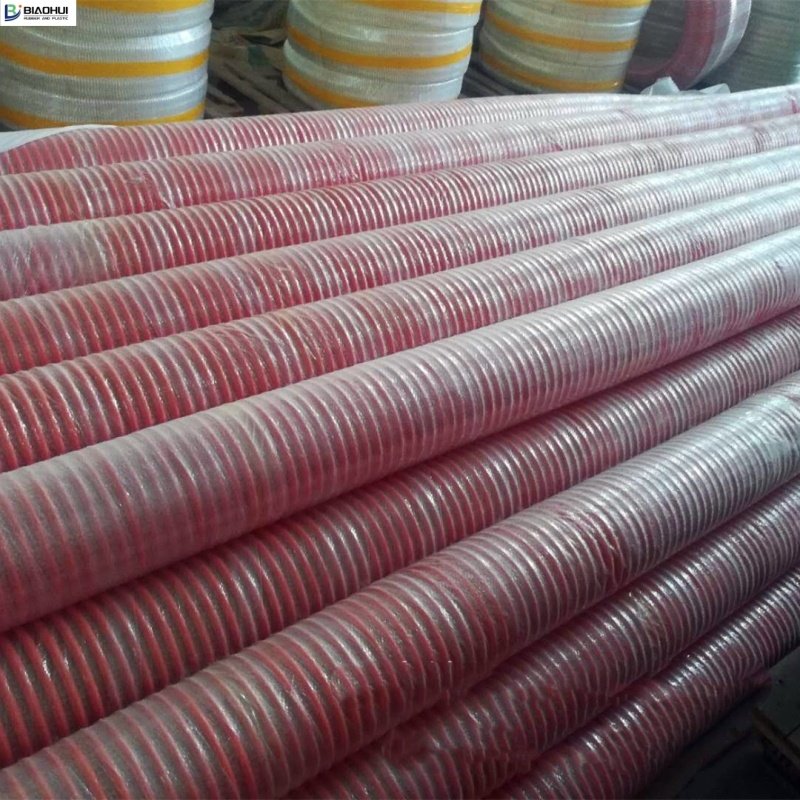

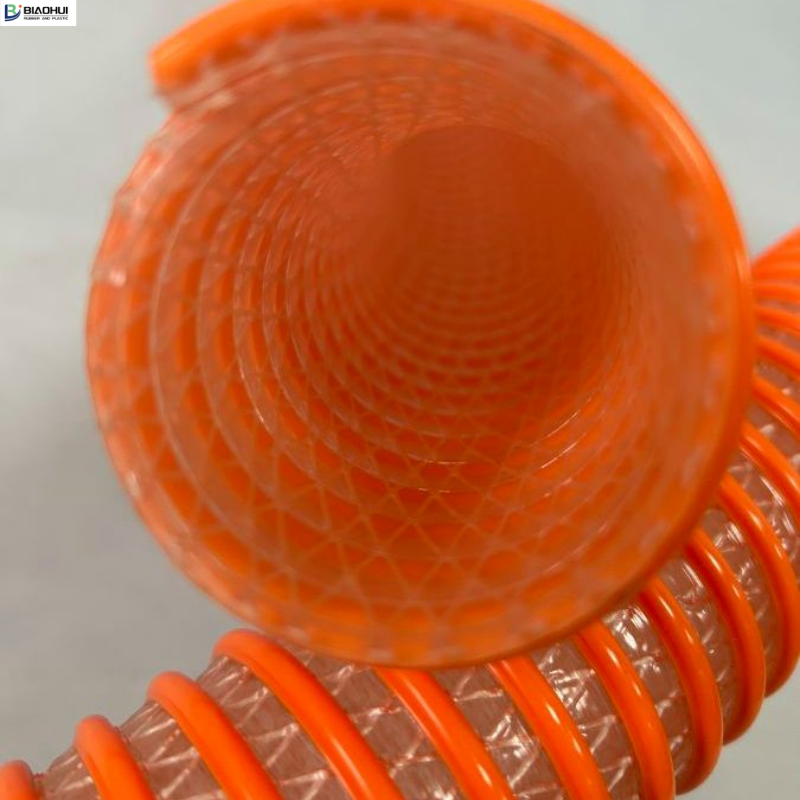

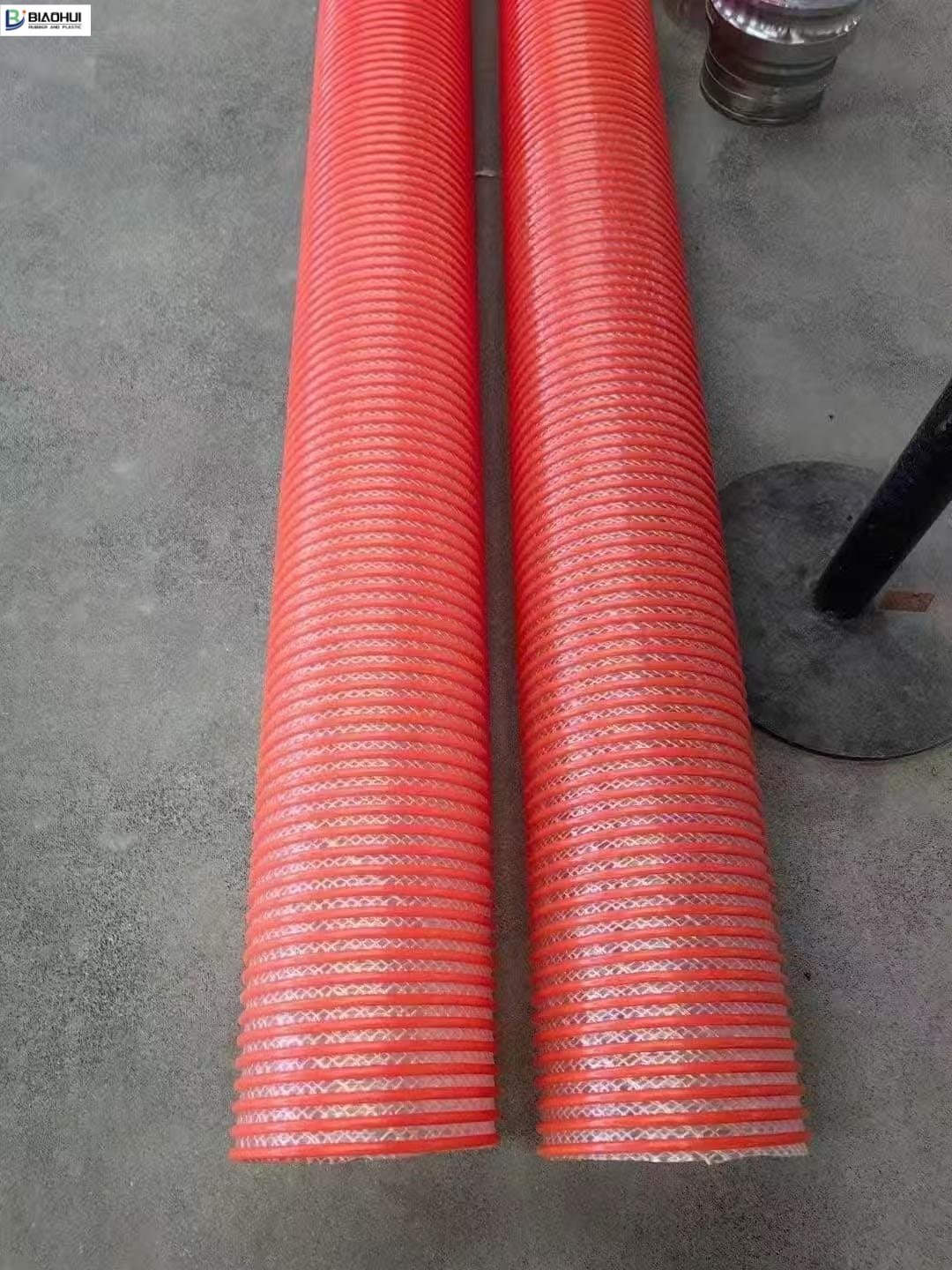

Fabric Reinforced Suction Hose

Fabric reinforced suction hose is essential tools in various industries for transferring liquids and materials. These hoses are designed with a strong fabric reinforcement layer to provide extra strength and durability, making them ideal for applications where a high level of suction is required. The fabric reinforcement also helps prevent the hose from collapsing under vacuum pressure, ensuring a continuous flow of materials. With their flexibility and resistance to abrasion, these hoses are versatile and reliable for use in a wide range of environments, from construction sites to agricultural fields. Whether used for water, oil, chemicals, or other liquids, fabric reinforced suction hoses are a valuable asset for any operation that requires efficient fluid transfer.

Fabric Reinforced Suction Hose
Construction
Wall: High quality PVC
Reinforcement: Rigid PVC helix and polyester fabric
Technical Parameters
Color: Orange
Size: 3/4 inch-16 inch
Length: up to 50m(164ft) or as required
Temperature: -10°C(14°F)-70°C(158 °F)
Features
Durability, high abrasion resistance, flexibility, clear visual flow, small bending radius, smooth inner construction for unrestricted flow of materials
Application

Fish suction, irrigation lines, pumps, rental and construction dewatering, trash pumps, suction and discharge, water suction – heavy duty



Inter Diameter Outer Diameter Working Pressure Burst Pressure Weight Coil
Inch Mm Mm Bar Psi Bar Psi g/m m
3/4 19 23 6 90 18 270 230 50
1 25 29 6 90 18 270 290 50
1-1/4 32 38 6 90 18 270 400 50
1-1/2 38 46 6 90 18 270 650 50
2 50 56 5 75 15 225 700 50
2-1/2 63 71 4 60 12 180 1170 30
3 75 83 3 45 9 135 1300 30
4 102 110 3 45 9 135 2300 30
5 125 137 3 45 9 135 3300 30
6 152 166 2 30 6 90 5500 10
908 203 214 2 30 6 90 6300 10
10 254 270 2 30 6 90 10000 10
12 305 329 2 30 6 90 180000 10
14 358 382 2 30 6 90 20000 10
16 408 432 2 30 6 90 23000 10
Size, working pressure can be customized as required
