Double Layer Steel Wire High-voltage Anti-static PTFE Tube

Send Inquiry

Construction:

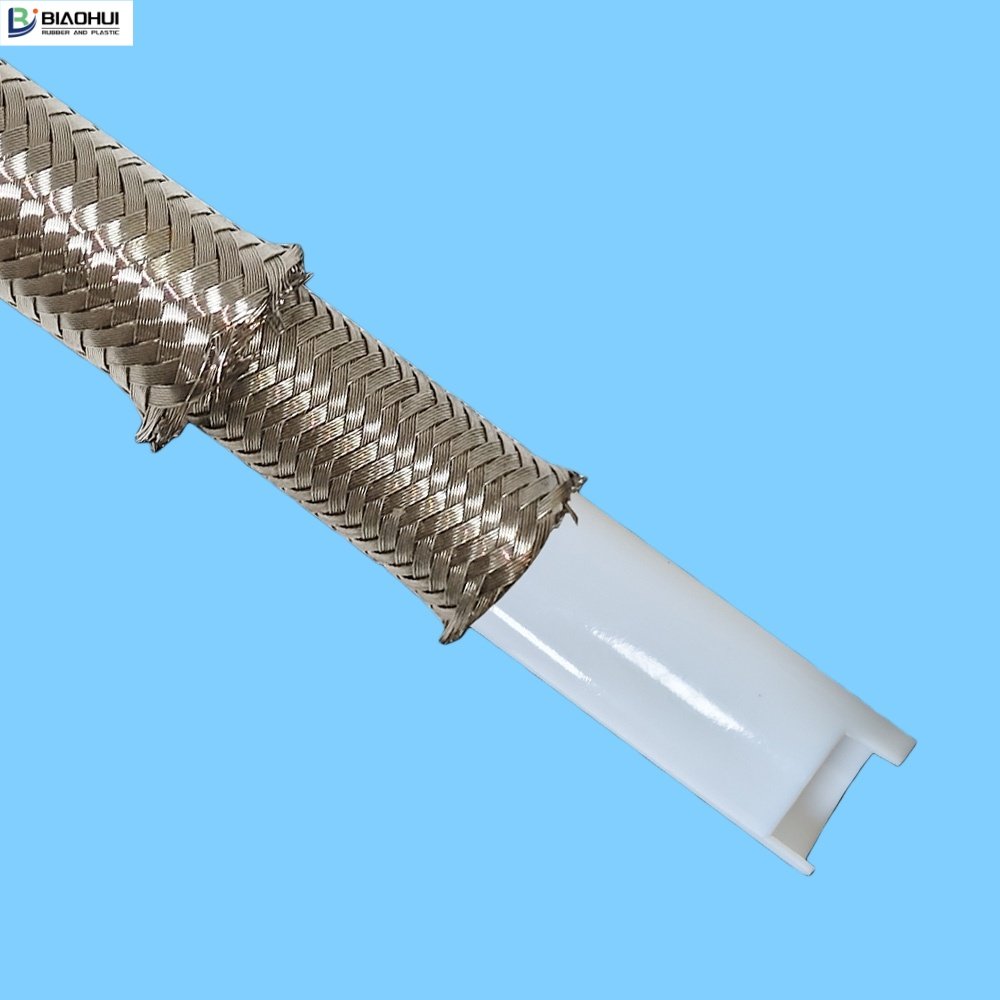

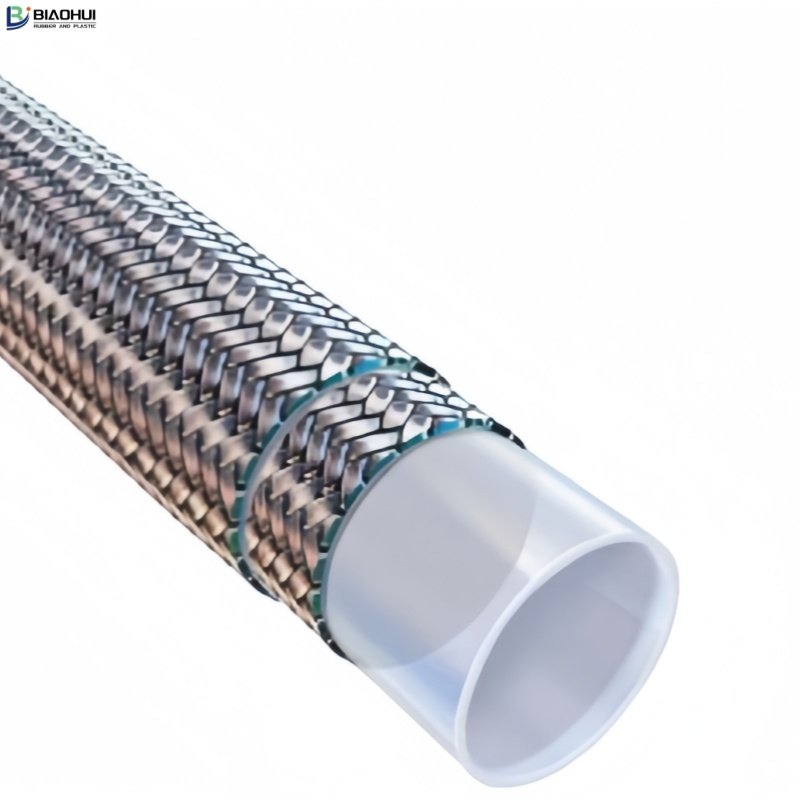

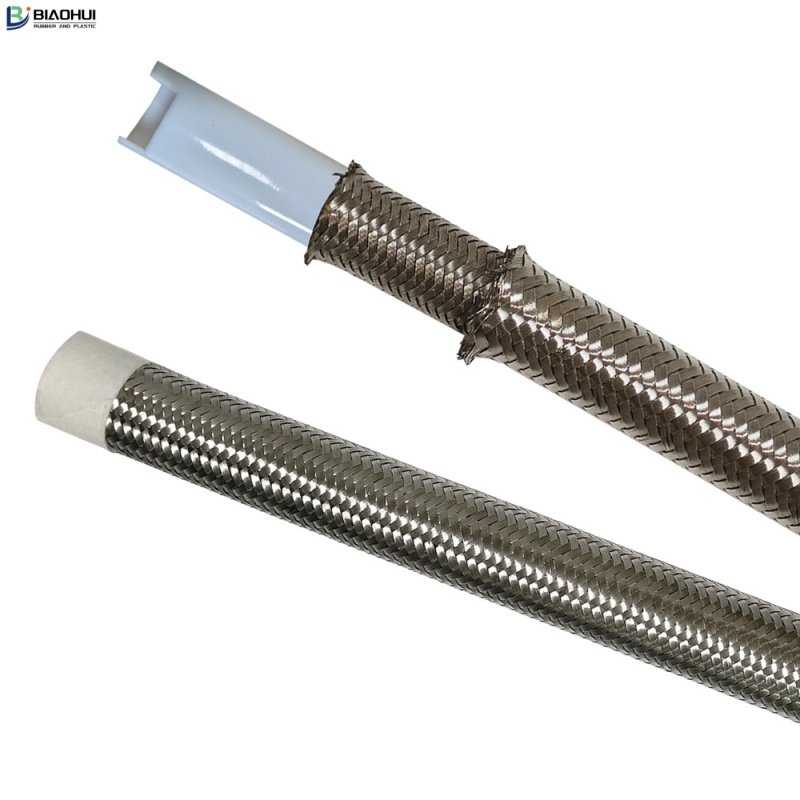

The hose is manufactured from antistatic PTFE resin with double, bunch braided SS304 stainless steel, high tensile braid. Non-sticking, easy to clean; Non-inflammable.

Temp. Range: -70°C and +260°C.

Applications: For gas applications.

Core Inter Outer Bend radius Work pressure Burst pressure
in. mm mm mm bar bar
006 1/4″ 6.4 11.5 65 350 1100
008 5/16″ 8.0 13.3 90 350 1100
010 3/8″ 9.5 15.1 100 350 1100
013 1/2″ 13.0 18.9 120 350 1100
016 5/8″ 15.9 22.7 160 350 1100
019 3/4″ 19.0 29.9 200 350 1100
025 1″ 25.4 36.9 250 350 1100
