Chemical Composite Hose

Characteristic:

Soft and lightweight, can bend freely.
Resistant to corrosion, oils, acids and alkalis.
Resistant and high temperature.
Excellent pressure resistance.

Construction:

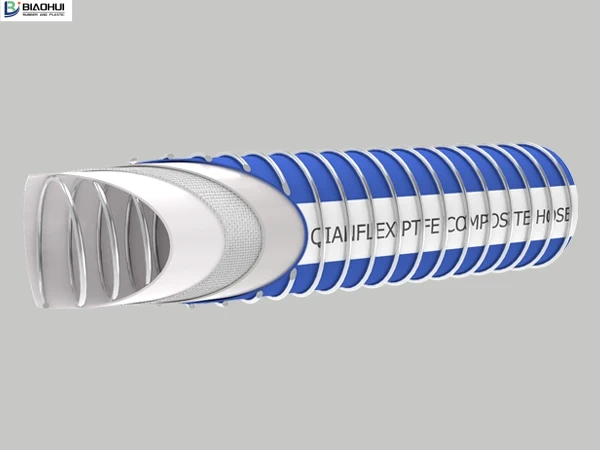

Its construction is very complex for five layers: inner and outer helix, liner, carcass and cover. And also there are four types namely PG (Polypropylene coated steel inner helix and high tensile galvanized carbon steel outer helix), PS (Polypropylene coated steel inner helix and 316L stainless steel outer helix), SG (316L stainless steel inner helix, and high tensile galvanized carbon steel outer helix) and SS (316L stainless steel inner helix and 316L stainless steel outer helix).

Liner: multiple layers of PTFE films.

Carcass: multiple layers of polypropylene fabrics, films and polyester barrier layers.

Cover: abrasion resistant PVC coated fabric.

The details of chemical composite hose:

Temperature range: -30°C to +100°C.
Inner diameter: 25mm, 38mm, 50mm, 65mm, 75mm and 100mm.
Outside diameter: 38mm, 52mm, 64mm, 80mm, 92mm and 120mm.
Bend radius: 90mm, 125mm, 160mm, 180mm, 220mm and 350mm.
Working pressure: 10 bar.
Length: 15m.

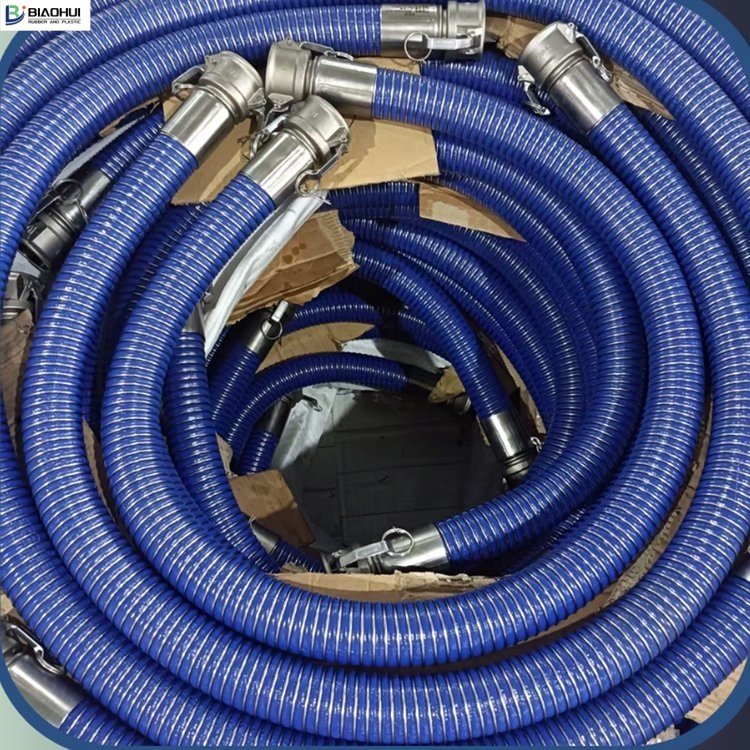

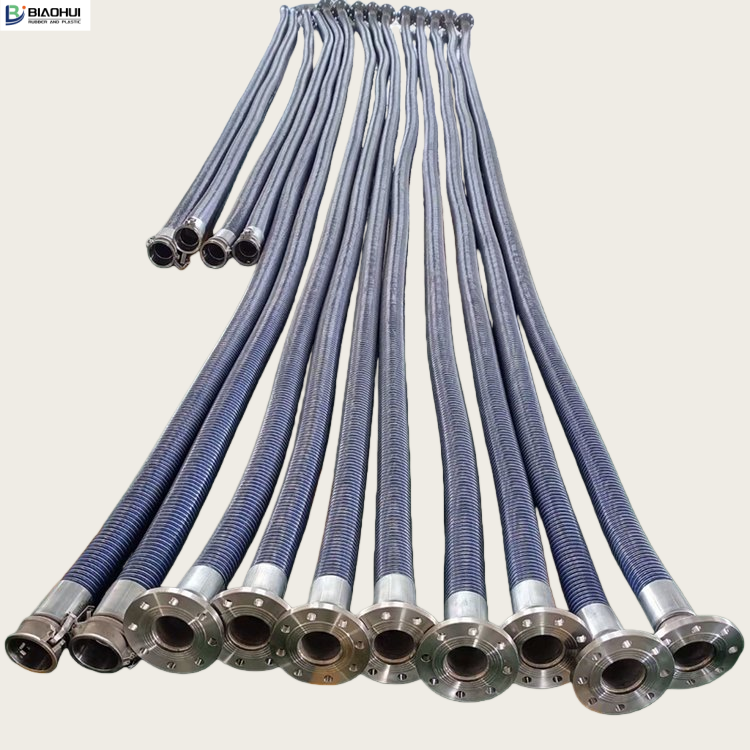

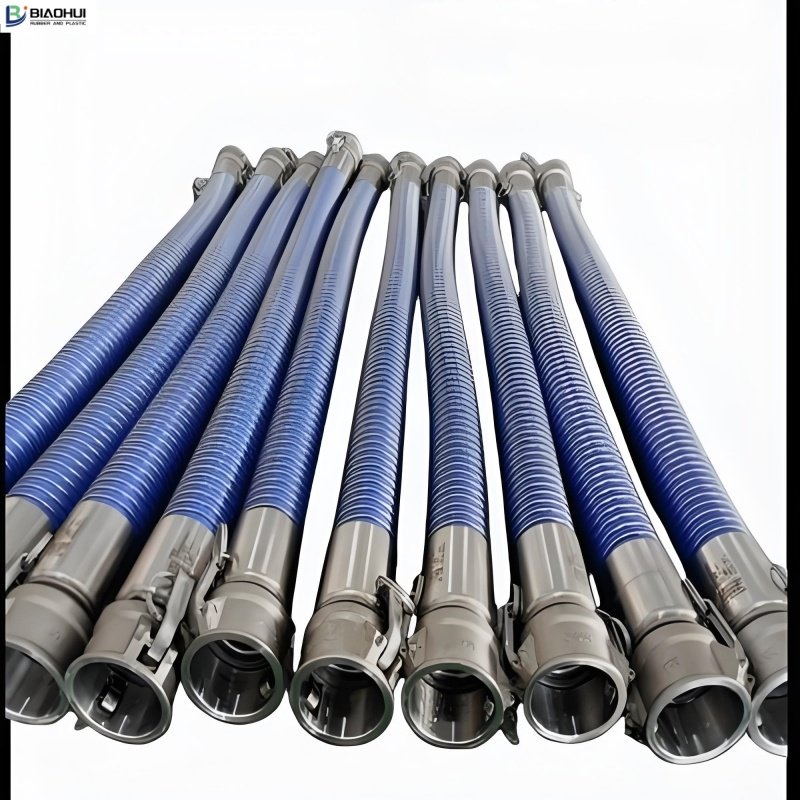

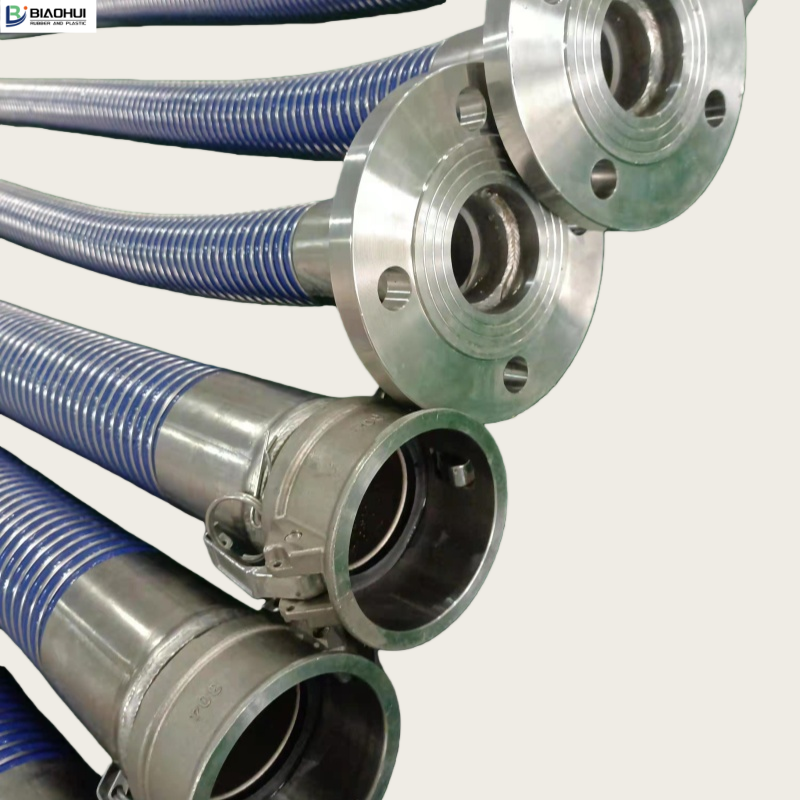

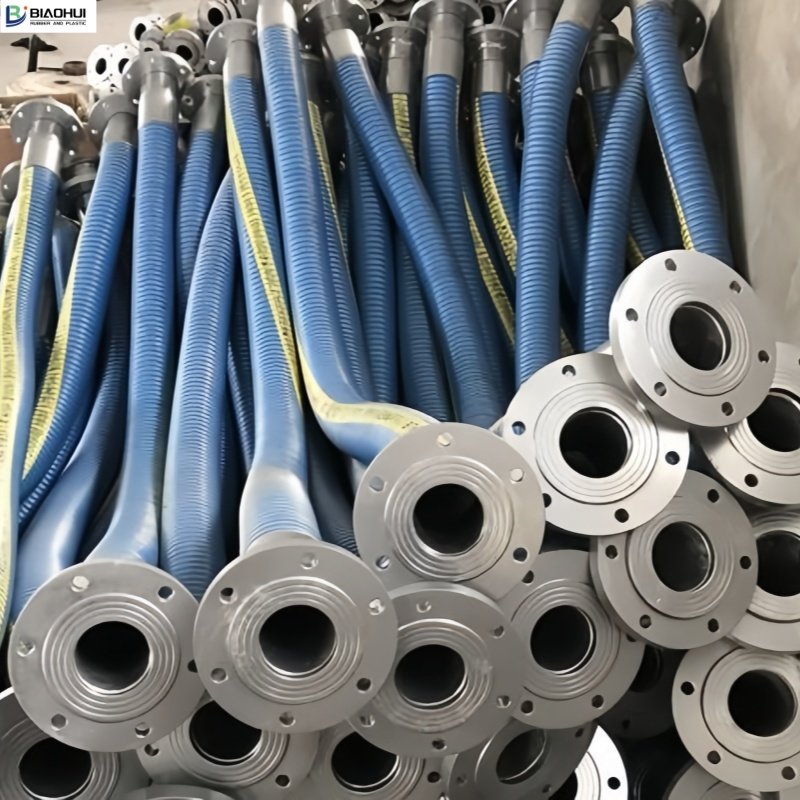

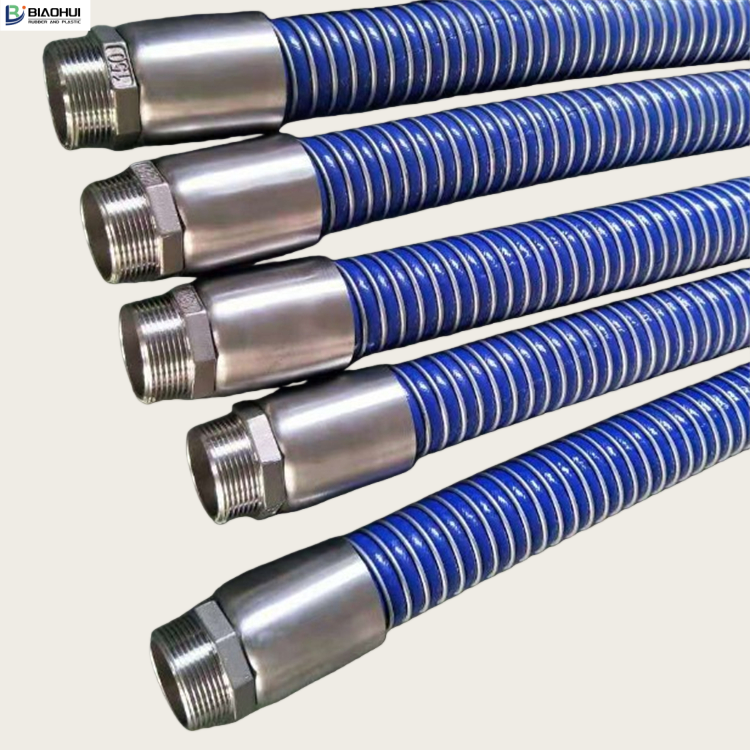

Couplings: externally swaged: NPT threaded; cam and groove, fixed, floating, reducing flange, etc.

The specification of chemical composite hose
Hose code	ID	OD	Bend radius	Working pressure	Weight	Length
Hose code	mm	mm	mm	bar	kg/m	m
CCH-01	25	38	90	10	1.00	15
CCH-02	38	52	125	10	1.60	15
CCH-03	50	64	160	10	1.80	15
CCH-04	65	80	180	10	2.60	15
CCH-05	75	92	220	10	3.00	15
CCH-06	100	120	350	10	5.40	15
We can also manufacture chemical composite hose according to customers’ requirement.

Application of chemical composite hose:

Chemical composite hose is mainly used to transfer chemical fluids, such as acids, alkalis and organic solvents.
It is used for in-plant chemical liquids transfer operations, tank truck delivery and rail car loading.
It is designed to transfer highly aggressive media.
Hose wire is connected to the fittings securely, making electrical continuity maintained.
