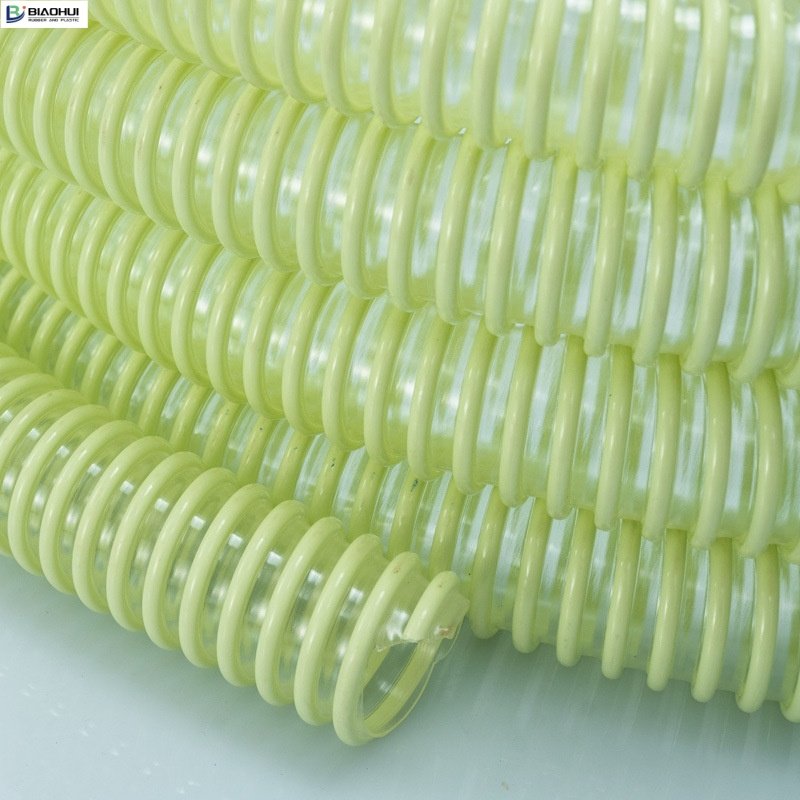

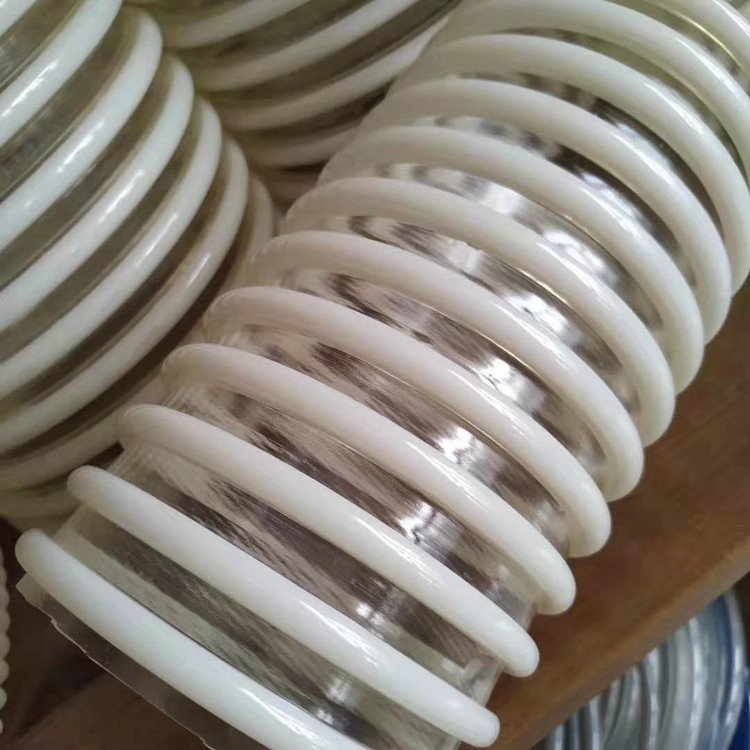

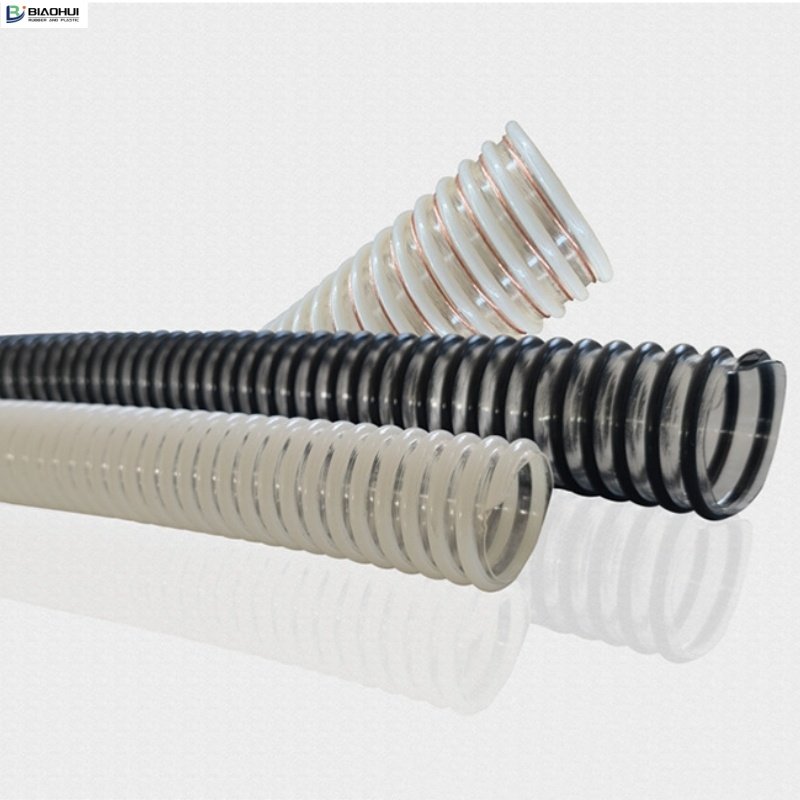

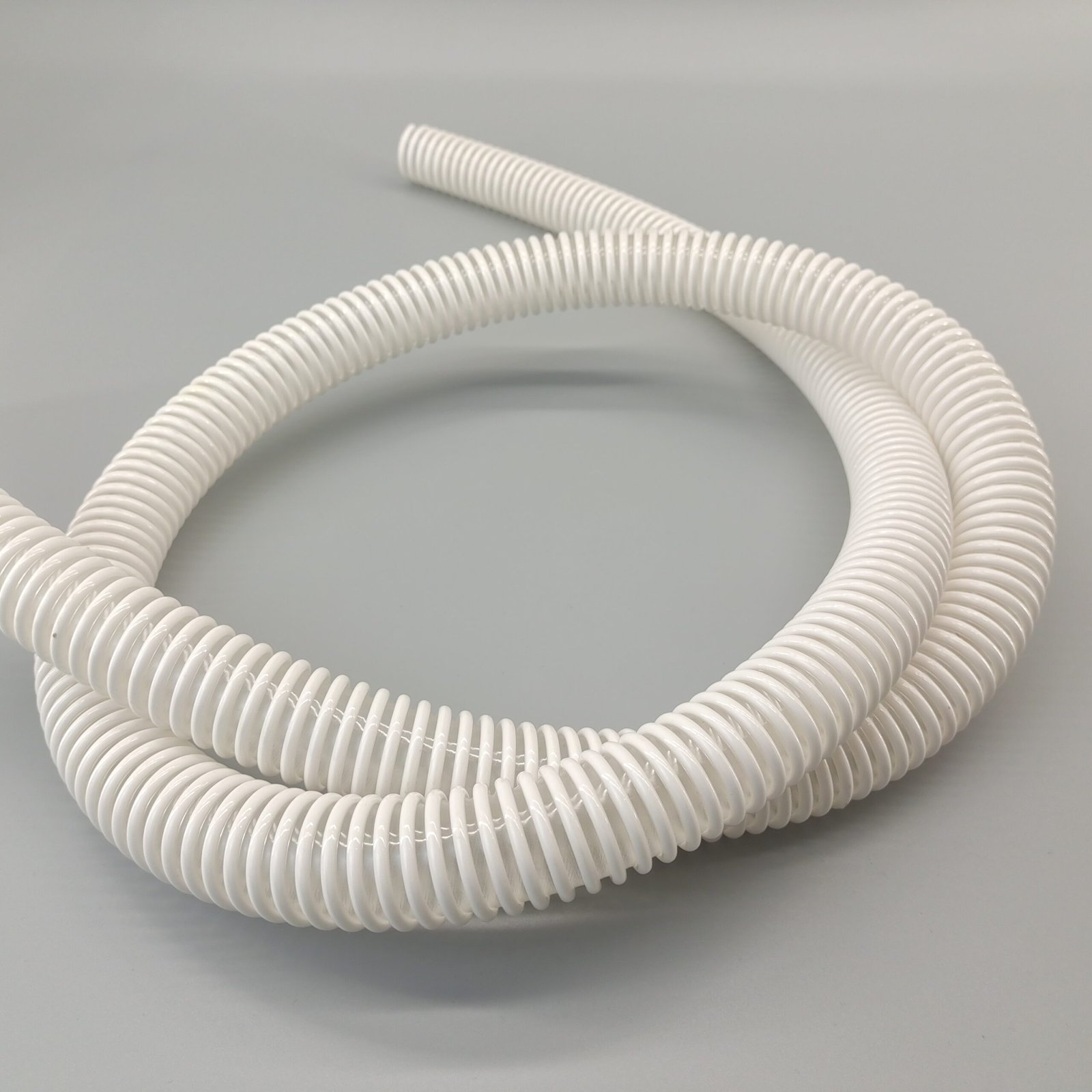

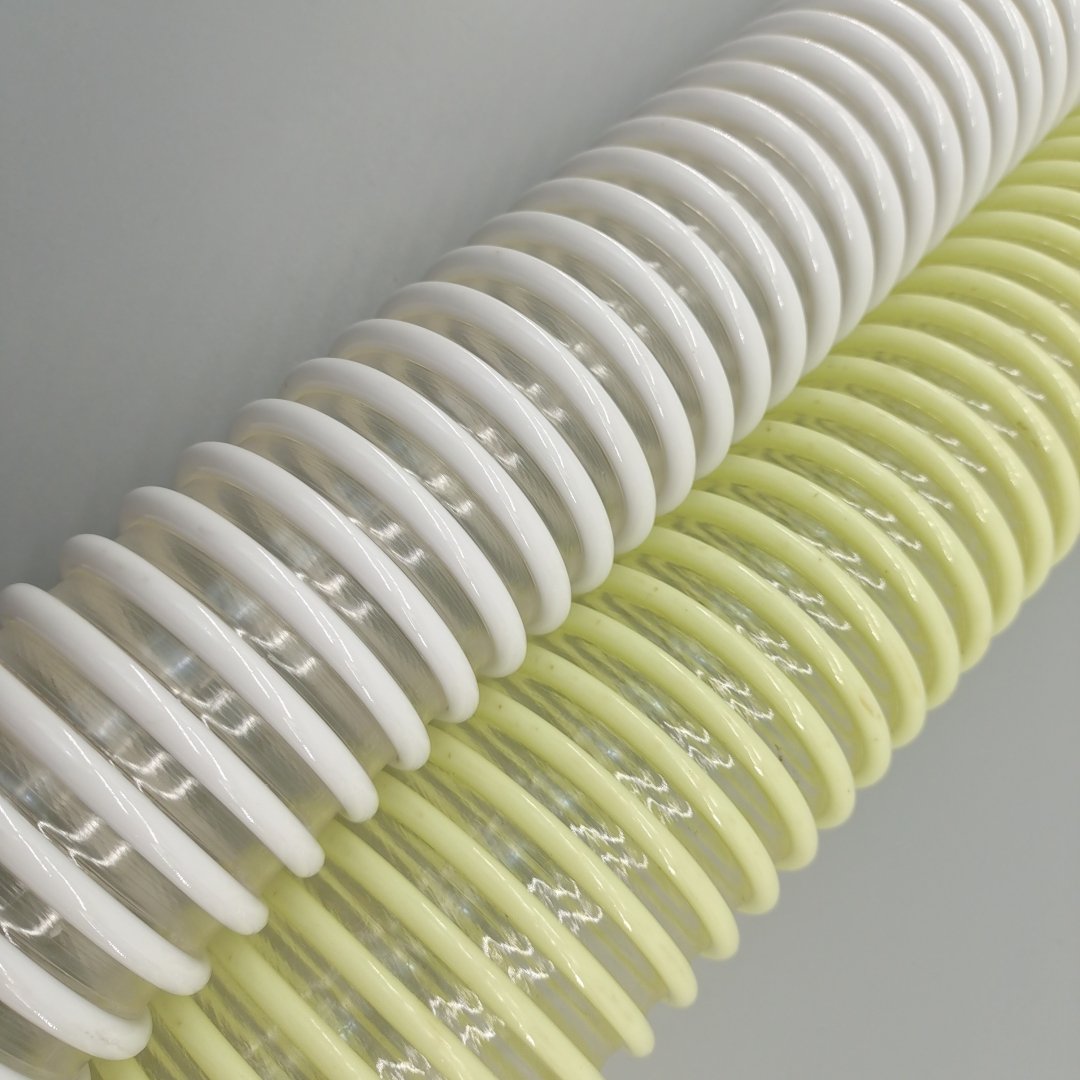

Air Seeder Hose

Air seeder hose is a flexible and durable pipe used in agricultural seeding systems to transport seeds, fertilizers, or other granular materials to seeders or other machinery

Air Seeder Hose

Structure: The pipe wall is wrapped with a hard plastic spiral, and the inner wall of the pipe is smooth

Material: Pipe Wall: Polyurethane, Spiral Wire: Hard PVC
Temperature range: -40 ° C to+90 ° C, short-term up to+125 ° C
Attributes: Wear resistant protection, smooth interior, good chemical resistance, excellent UV and ozone resistance, small bending radius, no gas or liquid leakage; Compliant with DIN 53516 and GB 9867 standards.

Application: PU plastic reinforced spiral hose, commonly used in suction applications, particularly suitable for abrasive solids such as dust, powder, fibers, debris, and granular materials; Used for gaseous and liquid media, industrial dust removal and suction, industrial vacuum cleaners, paper or fabric fiber suction, as an anti-wear protective tube.

Other specifications, sizes, colors, and special requirements can be customized as needed.

CODE	ID	OD	WEIGHT	Negative pressure	BENDING	VOLUME	LENGHT
	mm	mm	kg/m	mH2O	mm	m3	m
016	16	21	0.14	2.5	21	0.025	20
020	20	27	0.18	2.5	25	0.028	20
025	25	33	0.22	2.5	30	0.035	20
027	27	34	0.25	2.5	32	0.04	20
030	30	36	0.35	2.5	35	0.049	20
032	32	39.5	0.36	2	35	0.051	20
035	35	41	0.37	2	45	0.059	20
038	38	46	0.38	2	50	0.068	20
040	40	48.3	0.42	2	60	0.071	20
042	42	50.2	0.60	2	62	0.075	20
045	45	54	0.5	2	65	0.083	20
051	51	62	0.52	2	70	0.104	20
055	55	62	0.54	2	75	0.119	20
060	60	68.5	0.57	1.6	80	0.14	20
063	63	73.5	0.62	1.6	80	0.15	20
065	65	73	0.67	1.6	90	0.16	20
070	70	78	0.72	1.6	95	0.195	20
076	76	87	0.75	1.6	100	0.2	20
080	80	91	0.8	1.6	110	0.22	20
090	90	99	0.85	1.4	125	0.24	20
100	100	111	0.95	1.3	140	0.26	20
102	102	112.5	0.96	1.3	140	0.26	20
110	110	121	1.2	1.2	150	0.31	20
120	120	131	1.3	1	160	0.33	20
127	127	139	1.35	1	170	0.35	20
130	130	141	1.42	0.9	170	0.37	20
140	140	154	1.48	0.9	180	0.39	20
150	150	162	1.55	0.8	200	0.4	10
152	152	165	1.56	0.8	200	0.4	10
160	160	175	1.6	0.7	220	0.41	10
170	170	181	1.7	0.5	230	0.44	10
180	180	192	1.8	0.4	250	0.47	10
200	200	212	2	0.4	260	0.36	5
203	203	215	2.03	0.4	260	0.36	5
210	210	222	2.1	0.4	260	0.38	5
250	250	262	2.3	0.4	300	0.44	5
300	300	312	2.9	0.3	350	0.53	5

Air Seeder Hose

YOU MAY LIKE

Get in Touch

Air Seeder Hose

YOU MAY LIKE

Related products

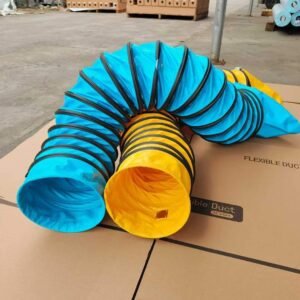

Tunnel Ventilation Duct Hose
