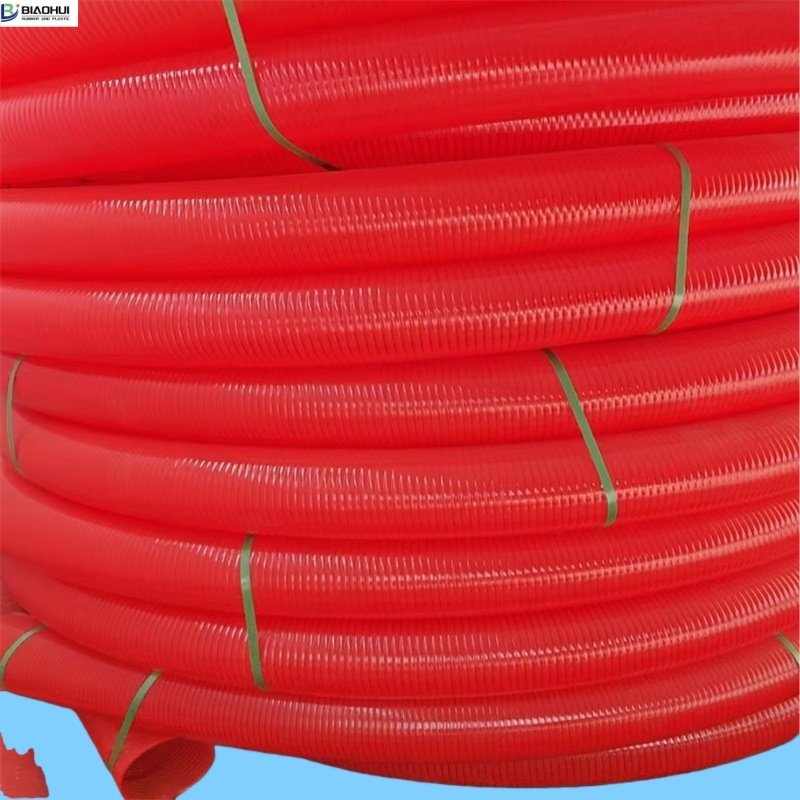

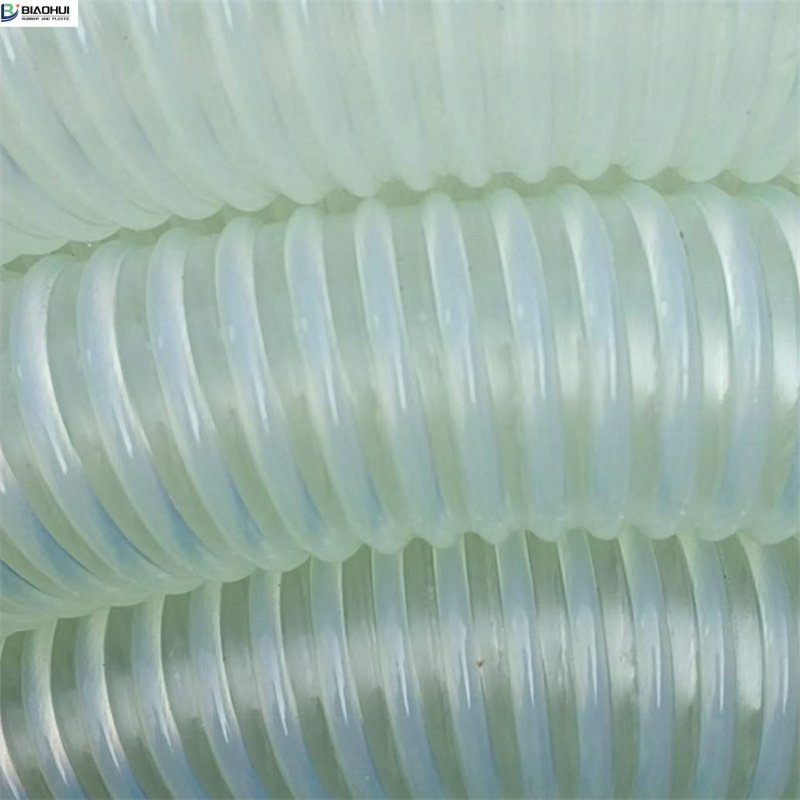

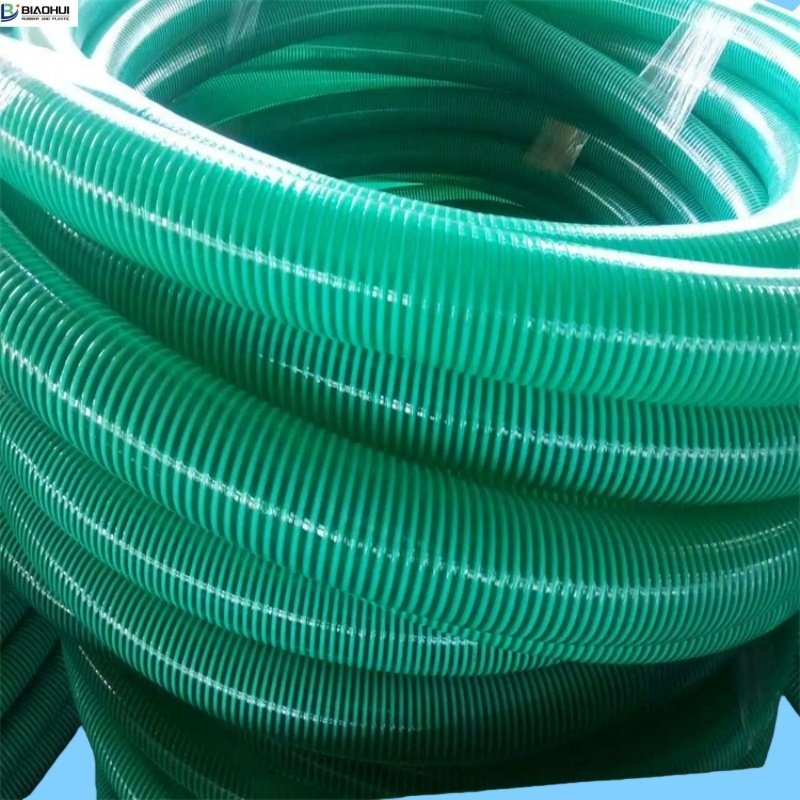

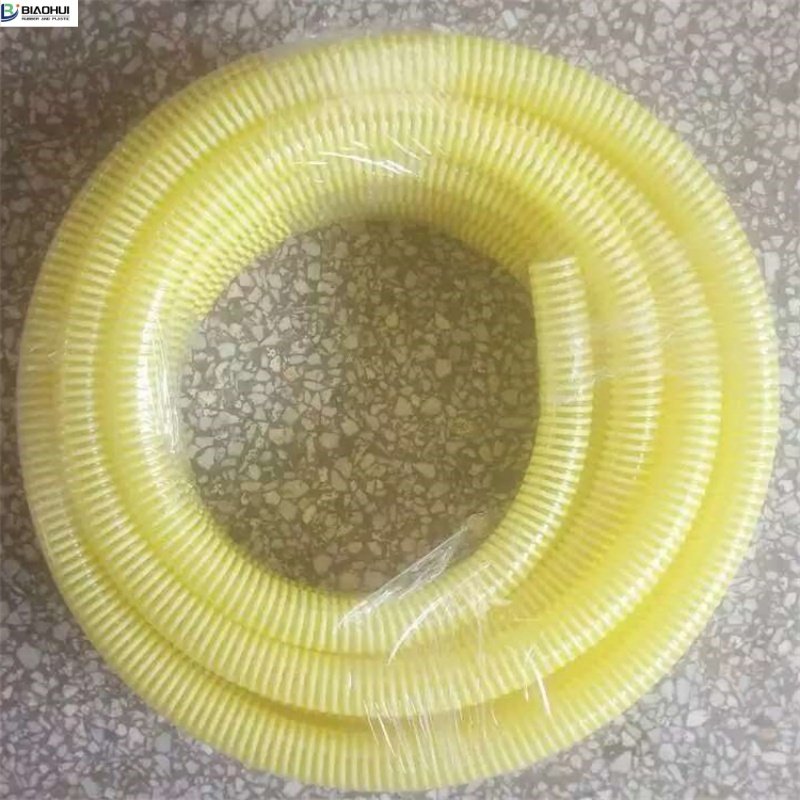

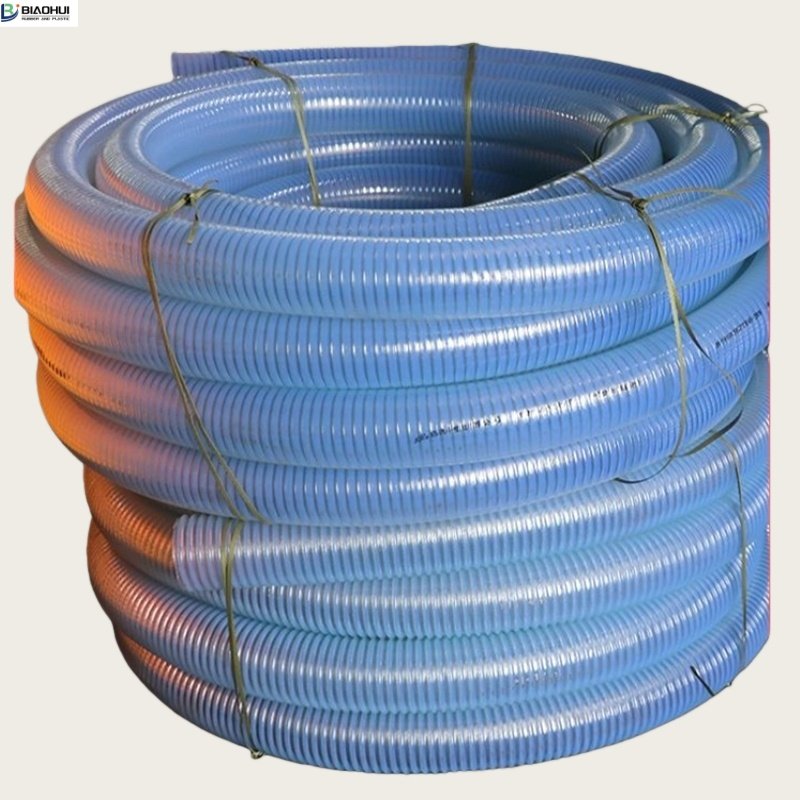

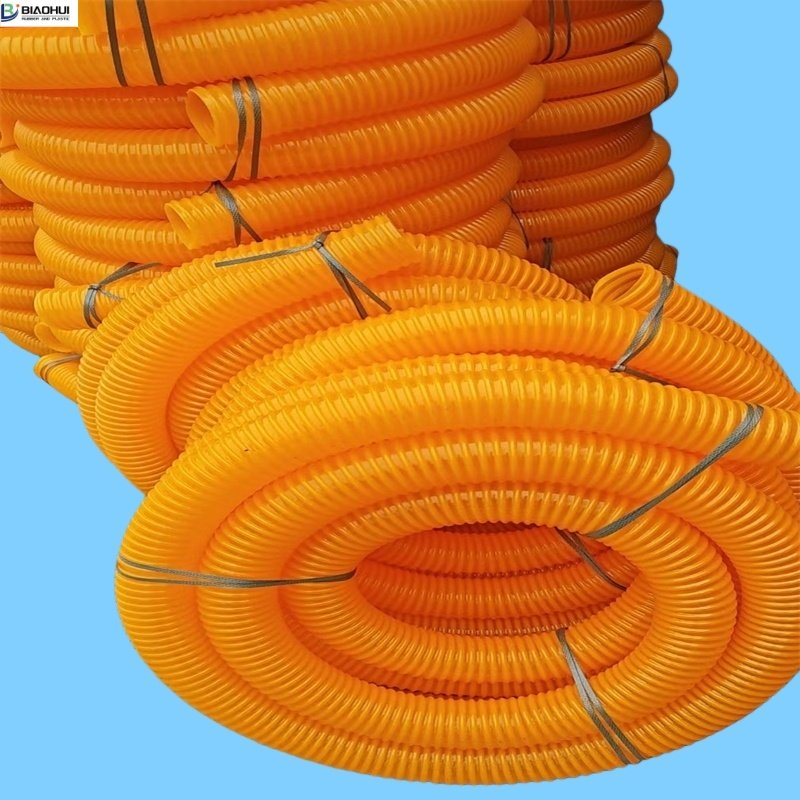

Transparent Suction Hose

Transparent suction hose is an indispensable tool in many industries and applications. Its transparency facilitates the observation of the flow of liquids and materials, ensuring smooth operation. This type of hose is commonly used in places such as agriculture, construction, and manufacturing where liquids or debris need to be transported. The transparent design can also quickly detect any blockages or problems that may occur during operation, greatly simplifying maintenance and troubleshooting work. In summary, transparent suction hoses are a reliable and efficient tool that plays a crucial role in many different industries.

Transparent Suction Hose
Construction
Wall: High quality PVC
Reinforcement: Rigid PVC helix
Technical Parameters

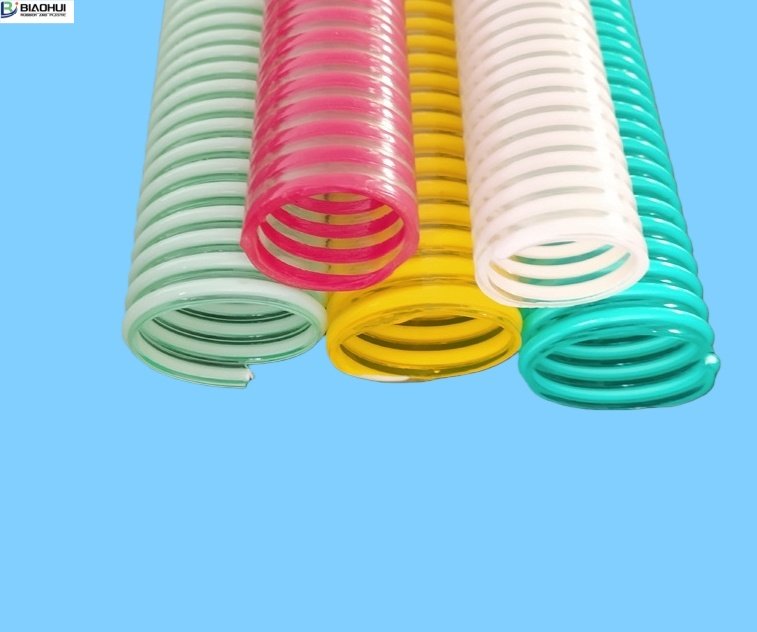

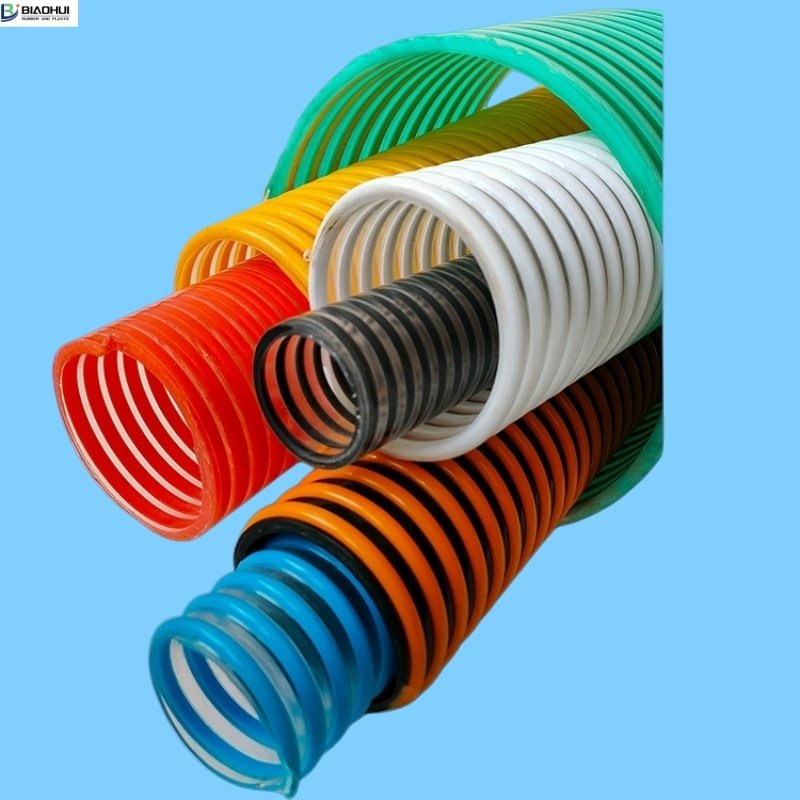

Color: White, red, yellow or as required
Size: 3/4 inch-16 inch
Length: up to 50m(164ft) or as required
Temperature: -10°C(14°F)-70°C(158 °F)
Features
Clear, high abrasion resistance, flexibility, light weight, small bending radius, smooth inner construction for unrestricted flow of materials
Application

Irrigation in agriculture, feed delivery, sewage treatment, removal of small dust particles, fuel delivery, etc



Inter Diameter Outer Diameter Working Pressure Burst Pressure Weight Coil
Inch Mm Mm Bar Psi Bar Psi g/m m
3/4 19 23 6 90 18 270 230 50
1 25 29 6 90 18 270 290 50
1-1/4 32 38 6 90 18 270 400 50
1-1/2 38 46 6 90 18 270 650 50
2 50 56 5 75 15 225 700 50
2-1/2 63 71 4 60 12 180 1170 30
3 75 83 3 45 9 135 1300 30
4 102 110 3 45 9 135 2300 30
5 125 137 3 45 9 135 3300 30
6 152 166 2 30 6 90 5500 10
908 203 214 2 30 6 90 6300 10
10 254 270 2 30 6 90 10000 10
12 305 329 2 30 6 90 180000 10
14 358 382 2 30 6 90 20000 10
16 408 432 2 30 6 90 23000 10
Size, working pressure can be customized as required
